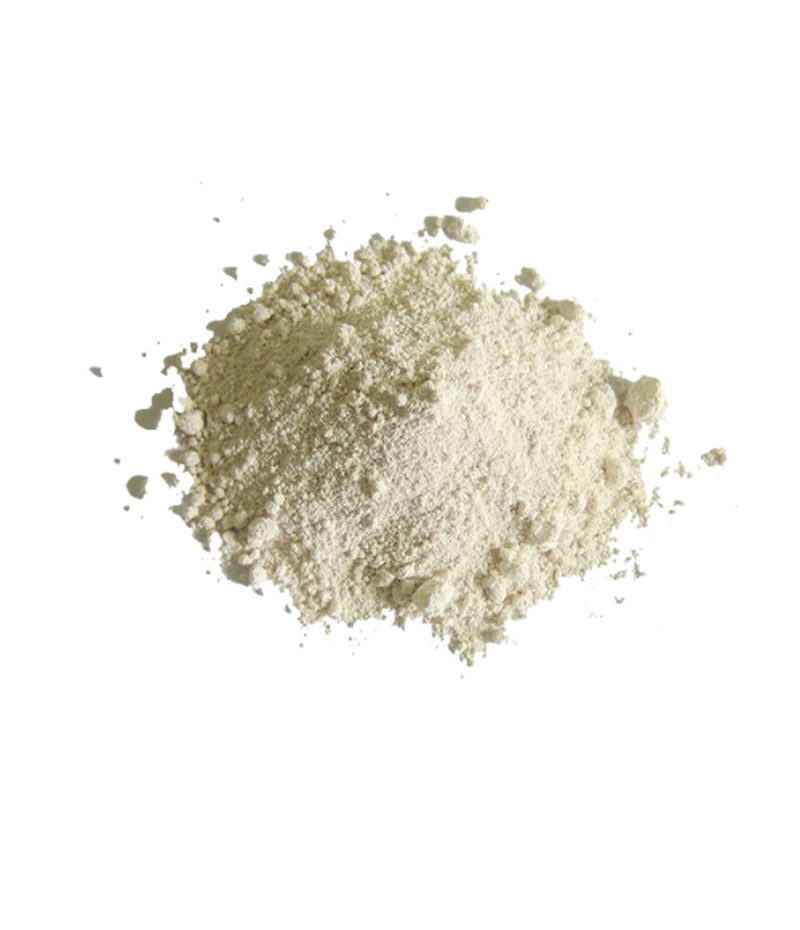

Zirconium Silicate (Powder)
Zirconium Silicate Powder is the finely milled, high-purity form of Zircon Sand. It is a dense, chemically inert material used primarily as a filler, opacifier, and matrix component in the refractory, foundry, and ceramic industries.
The ultra-fine powder size, often referred to as Zircon Flour, is crucial because it allows the material to be suspended in slurries (e.g., in investment casting) or to fill the minute voids between coarser aggregates in a refractory castable, thus achieving maximum density and minimal porosity. It is valued for its low thermal expansion, high refractoriness, and exceptional resistance to wetting by molten metals and glass.
Main Function and Characteristics
Zirconium Silicate Powder is key to forming the high-purity, dense matrix required for ultimate chemical resistance and dimensional stability.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Purity (ZrSiO₄) | >99% | Ensures high refractoriness and chemical stability. |
| Particle Size | ULTRA-FINE (Flour/Powder) | Allows for matrix filling and slurry creation. |
| Density (Specific Gravity) | 4.2 to 4.7 | Contributes to the overall density of the final product. |
CLASSIFICATION
- Matrix Focus: High-Density Inert Filler – Fine-grained ZrSiO₄
- Primary Application Focus: Investment Casting Slurries, Refractory Mortars, and Glass Opacifiers.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Molten Metal/Glass Resistance | EXCELLENT | Chemically inert and low wettability prevents adherence and corrosion. |
| Dimensional Stability | SUPERIOR | Very low coefficient of thermal expansion minimizes cracking/spalling. |
| Opacification | HIGH | Used in ceramic glazes to impart opacity and whiteness. |
- Role in Refractory and Foundry Matrices
- Investment Casting (Lost-Wax): Zircon Flour is the industry standard for the primary coat slurry due to its exceptionally fine finish, low thermal expansion (preventing shell cracking), and resistance to metal penetration (preventing a defect called “metal burn-in”).
- Refractory Mortars and Castables: The powder is used in the matrix (the fine portion of the mix) of Zircon and Zirconia refractories. It fills the micro-voids, increasing the overall packing density of the refractory. High density is the most effective defense against the corrosive penetration of molten slag and metal.
- Sealing and Bonding: Due to its fine size, Zirconium Silicate Powder is used in high-purity ramming mixes and seals for furnace joints and expansion gaps, ensuring a high-refractory, tight, and stable barrier.
- Chemical and Thermal Stability
- Zirconium Silicate remains chemically stable as ZrSiO₄ up to approximately 1680°C.
- Glass Industry: The powder is used as an opacifier in glazes and glass, where its high refractive index provides a desirable white, opaque finish. In the furnace itself, Zircon refractories are highly favored for their stability against aggressive glass melts.
- Decomposition Control: While ZrSiO₄ decomposes at higher temperatures, the fine powder form often aids in creating a dense final product that resists chemical attack at temperatures below this decomposition point, where most refractory wear occurs.
