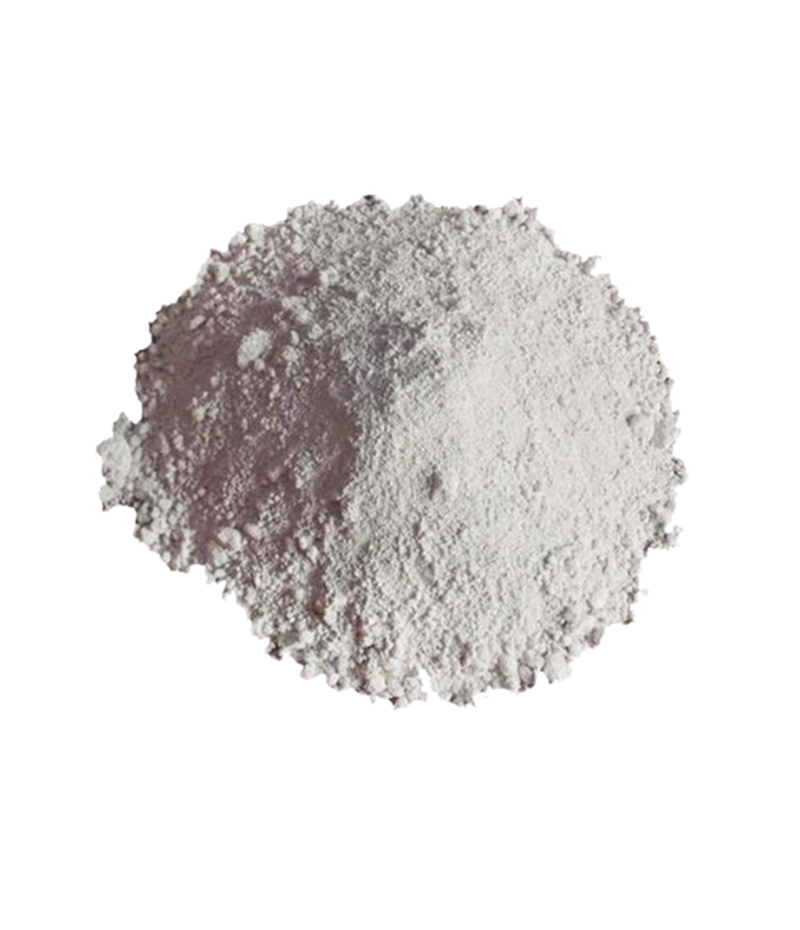

Zirconium-Containing Castable
Main Chemical Compositions & Categories
Zirconium-Containing Castables consist of a refractory aggregate base, often high-alumina, which is fortified with a zirconium compound. The type and amount of zirconium additive determine the final performance profile. The binding system is typically high-ppurity Low Cement Castable (LCC) or Ultra Low Cement Castable (ULCC) to maintain maximum refractoriness.
| ZIRCONIUM ADDITIVE | CONTENT | ZrO2 SOURCE | PRIMARY ADVANTAGE |
| Zircon (ZrSiO4) | 30% to 65% | Natural Zircon Sand | Excellent corrosion resistance to glass and Al-molten metal |
| Zirconia (ZrO2) | 10% to 30% | Fused Zirconia/Baddeleyite | Highest melting point, superior hot strength and stability |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Corrosion Resistance | EXCEPTIONAL | Zircon/Zirconia is highly inert and resists dissolution by molten glass and specific acidic/basic slags. |
| Hot Volume Stability | EXCELLENT | ZrO2 has a very high melting point (2700°C) and resists thermal creep under load. |
| Refractoriness (RUL) | EXTREME | The highest melting point in the oxide refractory family, allowing maximum service temperature. |
| Abrasion Resistance | VERY HIGH | High density and hardness of ZrSiO4/ZrO2 grains resist mechanical scouring. |
Advantages and Key Characteristics
Zirconium-Containing Castables are premium, high-cost materials utilized only in the most severe zones where chemical attack and erosion are the dominant wear mechanisms, particularly in contact with molten glass or reactive slags.
- Maximum Glass Corrosion Resistance: The primary advantage. Zircon is relatively non-reactive with molten glass and forms a stable, protective interface, making these castables essential for the high-wear, submerged sections of glass melting furnaces.
- High Structural Integrity at Extreme Temperatures: The ZrO2 component has the highest melting point among common oxides and exhibits excellent dimensional stability. When formulated as a LCC/ULCC, the resulting lining maintains structural integrity under both thermal and structural load.
- Resistance to Metal Penetration: Zirconia phases are highly resistant to infiltration and wetting by many molten non-ferrous metals, making the castable suitable for channels and ladles.
- Reduced Spalling: Although dense, the addition of Zircon can sometimes improve the thermal shock resistance of the castable compared to pure, dense alumina, due to differences in thermal expansion properties of the composite.
Typical Industries and Applications
This castable is essential for critical areas in high-value, corrosive processes:
- Glass Industry: Bottom and sidewall patches in glass melting tanks, particularly for specialty glasses, forehearth linings, and feeder channels.
- Metallurgical Industry: Linings for vacuum degassing units, pouring ladles, and submerged nozzles where maximum non-metallic inclusion protection is required.
- Chemical Industry: Specialty linings in high-temperature reactors and gasifiers handling highly corrosive ash or complex slags.
Furnace Areas and Service Zones
They are specified for structural, chemical-wear, and hot zones:
- GLASS CONTACT AREAS: Linings below the glass line where chemical dissolution is continuous.
- FOREHEARTHS AND FEEDERS: Used to maintain glass purity and resist erosion during flow.
- SLAG/METAL CONTACT ZONES: Areas requiring maximum chemical inertness and resistance to infiltration.
Key Data Sheet Properties to Consider
Selection criteria focus intensely on chemical and high-temperature properties:
- ZrO2 Content: CRITICAL VALUE. Specify the minimum content of Zirconium compound required for the application. Higher content means higher cost but better chemical resistance.
- Corrosion Index (Glass/Slag): CRITICAL VALUE. Look for supplier data demonstrating low corrosion/erosion rates against the specific molten material being processed.
- Al2O3/SiO2 Balance: The ratio is important, as ZrSiO4 (Zircon) can dissociate at very high temperatures, so the base castable matrix must be stable.
- Binder Type: Confirm it is a high-purity LCC/ULCC formulation to preserve the high refractoriness of the Zirconium compounds.
Technical Guidance: Zirconium-Containing Castables are expensive and must be used judiciously in the highest wear areas. Due to their high density and specialized nature, they require an extremely strict, slow dry-out and heat-up schedule to prevent damage from internal steam pressure. The presence of Zirconia can also make the material subject to the monoclinic ↔ tetragonal phase transition at 1000°C, which must be managed during heat-up.
