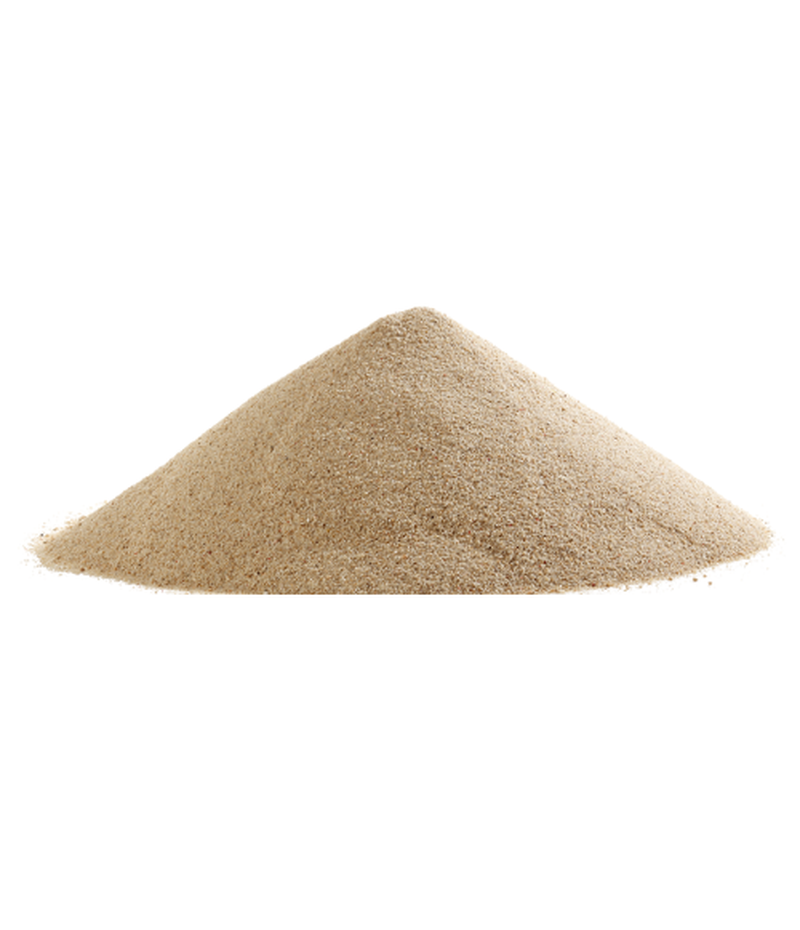

Zircon Sand
Zircon Sand is a naturally occurring, high-purity mineral (Zirconium Silicate, ZrSiO₄). It is recovered primarily as a co-product of heavy mineral sands mining. Zircon is one of the most chemically stable and refractory raw materials available, valued for its high density, low thermal expansion, and exceptional resistance to chemical attack and high temperatures.
It is the essential ingredient for producing Zircon Refractories and is widely used in the foundry and ceramic industries where high refractoriness, low thermal conductivity, and good dimensional stability are required.
Main Function and Characteristics
Zircon Sand provides a highly stable, inert, and dense aggregate for extreme-temperature applications.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Purity (ZrSiO₄) | >99% | Ensures high refractoriness and chemical stability. |
| Zirconia (ZrO₂) Content | ~66% | The high ZrO₂ content imparts exceptional stability. |
| Density (Specific Gravity) | 4.2 to 4.7 | High density is crucial for resisting liquid metal and slag penetration. |
CLASSIFICATION
- Mineralogy Focus: Zirconium Silicate – Tetragonal Crystalline Structure
- Primary Application Focus: Glass Furnaces, Investment Casting Shells, and Foundry Molds.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Refractoriness (PCE) | VERY HIGH (~2500°C) | Decomposes only at very high temperatures, providing excellent stability. |
| Chemical Inertness | EXCELLENT | Highly resistant to reaction with molten glass, CaO-containing materials, and many slags. |
| Thermal Expansion | VERY LOW | Ensures minimal volume change, providing superior dimensional stability. |
- Decomposition and Stability
Zircon Sand is stable up to very high temperatures, but above approximately 1680°C (3056°F), it slowly decomposes:
ZrSiO₄ → ZrO₂ (Zirconia) + SiO₂ (Silica)
- Refractory Use: This decomposition is slow and manageable. Zircon-based refractories are widely used because the dense ZrSiO₄ structure resists corrosion from Fe and Mn oxides and, critically, from molten glass.
- Dimensional Stability: Zircon’s extremely low coefficient of thermal expansion is a major advantage, minimizing the risk of thermal shock and spalling in highly cyclic operations.
- Applications in Foundries and Furnaces
- Glass Furnaces: Zircon-based bricks are crucial for the paving and sidewall areas of glass tanks due to their exceptional resistance to attack by molten glass melt.
- Investment Casting: Zircon flour is used in the primary coat of the ceramic shell in investment casting (lost-wax process). Its purity and fine particle size ensure a perfect surface finish on the final metal casting.
- Foundry Sand: Zircon Sand is a premium, high-performance alternative to silica sand for molding (cores and molds) when casting high-temperature alloys (e.g., stainless steel, superalloys). Its superior chilling ability and resistance to metal penetration result in higher quality castings.
- Refractory Mortars: Used as a fine aggregate in high-purity mortars for bonding zircon and chrome-containing refractories.
- Technical Guidance
- Cost: Zircon Sand is significantly more expensive than silica or fireclay materials, making it a specialty, high-performance material used strategically in areas of high wear or high chemical exposure.
- Iron Content: Low levels of Fe₂O₃ are essential, as iron acts as a flux that can reduce the high-temperature stability of the final refractory product.
