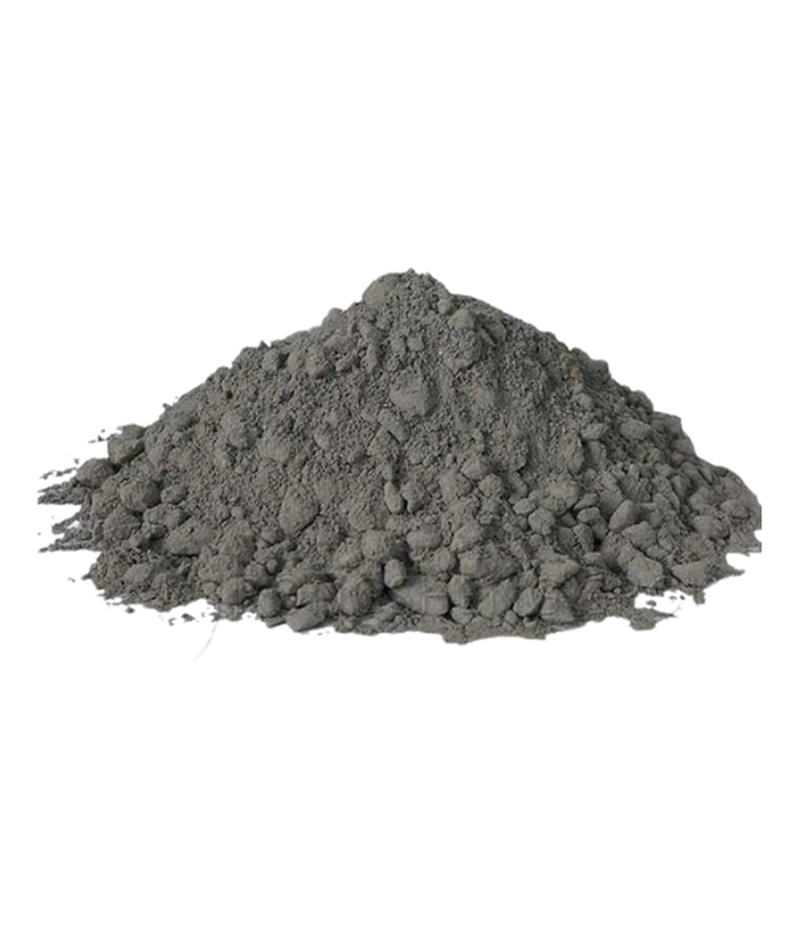

Wear-Resistant Castable
Main Chemical Compositions & Categories
Wear-Resistant Castables typically utilize a matrix of high-purity ALUMINA (Al2O3), often combined with extremely hard, non-oxide materials like SILICON CARBIDE (SiC) or CHROMIUM OXIDE (Cr2O3) as the aggregate to achieve maximum hardness. They are generally formulated as Low Cement Castables (LCC) or Ultra Low Cement Castables (ULCC) for superior density.
| AGGREGATE TYPE | CHEMICAL BASE | KEY FEATURE | PRIMARY ADVANTAGE |
| Tabular/Fused Alumina | Al2O3 | High hardness, excellent refractoriness | General high-temperature, high-abrasion service |
| Silicon Carbide (SiC) | SiC | Extreme hardness, high thermal conductivity | Max. resistance to erosion and thermal shock |
| Chrome Corundum | Al2O3 + Cr2O3 | Very high density, chemical inertness | Max. resistance to erosion and chemical attack |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Abrasion Resistance | EXTREME | Use of aggregates with a high Mohs hardness (e.g., SiC at 9.5, AL2O3 at 9) and a dense, high-strength matrix. |
| Bulk Density (BD) | VERY HIGH | Formulated to maximize particle packing, reducing void space and enhancing the cohesive strength of the surface. |
| Cold/Hot Crushing Strength | HIGH | LCC/ULCC formulations ensure a strong internal bond that resists mechanical forces and disintegration. |
| Refractoriness (RUL) | VERY HIGH | Due to the high-purity aggregates, these castables often have high maximum service temperatures. |
Advantages and Key Characteristics
Wear-Resistant Castables are a critical investment in severe-duty zones, maximizing equipment uptime and minimizing maintenance costs by significantly extending the refractory campaign life.
- Maximum Erosion Life: The core benefit is longevity in environments where high-velocity particles, high-temperature gas streams, or fast-flowing molten materials continuously scrub the refractory surface. The use of extremely hard aggregates provides a physical barrier to particle wear.
- High Structural Integrity: Formulating the castable as an LCC or ULCC ensures that the strength is maintained at high temperatures, preventing premature lining disintegration or collapse due to thermal or structural load.
- Low Permeability: The high bulk density and low apparent porosity (achieved through superior particle packing) physically inhibit the penetration of corrosive liquids and gases, ensuring that the chemical attack occurs only on the surface rather than deep within the lining.
- Monolithic Protection: Being a castable, it provides a seamless lining that eliminates the joints found in brickwork—joints are always the first and most vulnerable point of attack for both wear and chemical infiltration.
Typical Industries and Applications
This castable is essential in zones of severe mechanical and thermal stress:
- Cement & Lime Industry: Cyclone separators, riser ducts, tertiary air ducts, and kiln entry/discharge areas where high-velocity raw meal or clinker dust causes intense erosion.
- Petrochemical Industry: Fluid Catalytic Cracking (FCC) unit cyclones, transfer lines, and regenerators, where fast-moving catalyst particles cause extreme wear.
- Ferrous Industry (Steel): Runners, launder linings, EAF tapping spouts, and high-wear areas of reheating furnace hearths.
- Power Generation: Linings in coal gasifiers, pulverized coal injection lines, and ash handling systems.
Furnace Areas and Service Zones
They are specified for structural, high-wear, and hot zones:
- CYCLONE INLETS AND CONES: Areas subjected to the highest particle impact and swirling velocity.
- TRANSFER CHUTES AND PIPING: Used to handle high-volume, abrasive flow.
- TAP HOLES AND RUNNERS: Exposed to high-velocity, sometimes chemically aggressive, molten metal/slag.
Key Data Sheet Properties to Consider
Selection criteria focus intensely on the hardness and density metrics:
- Abrasion Resistance Index (ASTM C704): CRITICAL VALUE. Must demonstrate low volume loss (e.g., < 8 cm3 after firing) to confirm superior wear life.
- Bulk Density (BD) and Apparent Porosity (AP): High BD (e.g., > 2.6 g/cm3) and very low AP (< 15}%) are essential indicators of resistance to both wear and penetration.
- Aggregate Type and Hardness: Identify the primary wear-resistant component (SiC, Al2O3, Cr2O3) and its content.
- Hot Modulus of Rupture (HMOR): Required to ensure mechanical stability under the dynamic stresses caused by particle flow and thermal cycling.
Technical Guidance: For applications involving both high wear and thermal shock (e.g., cyclones), SiC-based wear-resistant castables are typically superior due to SiC‘s intrinsic thermal properties. As high-density, LCC formulations, they require a strict, slow dry-out and heat-up schedule to prevent destructive steam spalling.
