Vermiculite Granules

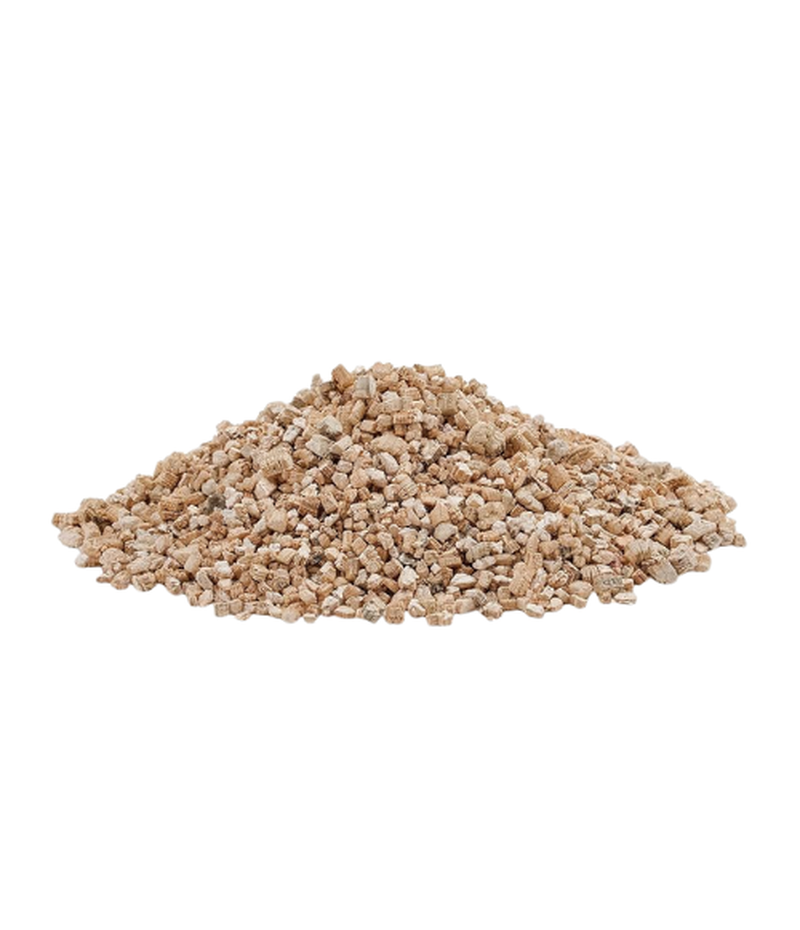

Vermiculite Granules are the highly porous, lightweight material produced by heating raw vermiculite ore to high temperatures (exfoliation). Vermiculite is a naturally occurring hydrated magnesium-aluminum-iron silicate mineral that dramatically expands (or exfoliates) upon heating, resulting in accordion-like, golden-brown, lightweight granules. This material is used as a loose-fill, high-temperature insulation, a lightweight aggregate in refractories and mortars, and a medium for fire protection.
Main Components and Structure
The lightweight and insulating nature comes from the internal structure created by the rapid removal of chemically bonded water during exfoliation.
| COMPONENT | COMPOSITION | PRIMARY ADVANTAGE |
| Exfoliated Granules | Hydrated Magnesium-Aluminum-Iron Silicate | Highly porous, lightweight structure with low density. |
| Form | Loose, free-flowing, granular aggregate | Ideal for filling irregular voids and use in pumpable/castable mixes. |
| CLASSIFICATION | MAXIMUM SERVICE T | PRIMARY USE |
| Industrial Grade | ~1100°C (2012 F) | Loose-fill insulation and refractory aggregate. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Bulk Density | VERY LOW | Reduces the weight of refractory castables and mortars. |
| Thermal Conductivity (k) | LOW | High volume of trapped air within the structure provides good insulation. |
| Fire Resistance | EXCELLENT | Non-combustible; does not shrink or degrade up to its MST. |
| Flowability | HIGH | Easily poured or blown into irregular or inaccessible cavities. |
Advantages and Key Characteristics
Vermiculite Granules are the choice material for cost-effective, high-temperature insulation and for formulating lightweight refractory materials.
- Loose-Fill Insulation: Its free-flowing nature allows it to be poured or blown into furnace cavities, ovens, or between double-walled chimneys, creating a seamless, uniform thermal barrier in areas where rigid or blanket insulation is impractical.
- Lightweight Refractory Aggregate: When mixed with cement or other binders, vermiculite granules produce insulating concrete or mortars that are significantly lighter than conventional dense refractories. These vermiculite-based mixes are used for insulating furnace backup layers, oven linings, and chimney renders.
- Fire Protection: Due to its non-combustible nature and high MST, loose vermiculite is widely used as a fire-resistant fill and packing material in fire-stopping assemblies.
- Chemical Inertness: Vermiculite is generally stable and resistant to most mild acids and alkalis, enhancing the durability of the refractory mixes it is used in.
Typical Industries and Applications
Vermiculite Granules are used in various thermal, refractory, and fire protection contexts:
- Chimneys and Flues: Poured down the cavity between the metal liner and masonry stack as a high-temperature insulating fire stop.
- Furnace and Oven Construction: Used as lightweight backup insulation fill in the walls, hearth, and arch of industrial kilns and high-temperature ovens.
- Refractory Mixes: Used as an aggregate in pre-mixed insulating castables and gunning mixes.
- Horticulture (Supplementary Use): Used in potting mixes to aerate soil and retain moisture (though this is a non-refractory application).
Key Data Sheet Properties to Consider
Selection is typically based on grade and particle size:
- Maximum Service Temperature (MST): CRITICAL VALUE. Standard industrial grades are rated to 1100°C.
- Particle Size (Grade): Available in various grades (e.g., fine, medium, coarse). Finer grades are used for dense packing or refractory mortars; coarser grades are used for loose-fill insulation where maximum air void volume is desired.
- Bulk Density: This low value (e.g., 100-160 kg/m3) determines the final weight of the insulating mix or the structural load of the loose fill.
Technical Guidance: When mixing vermiculite granules with cement to form insulating concrete, the ratio of water to cement is critical to ensure the granules remain intact and the mix is properly cured.
