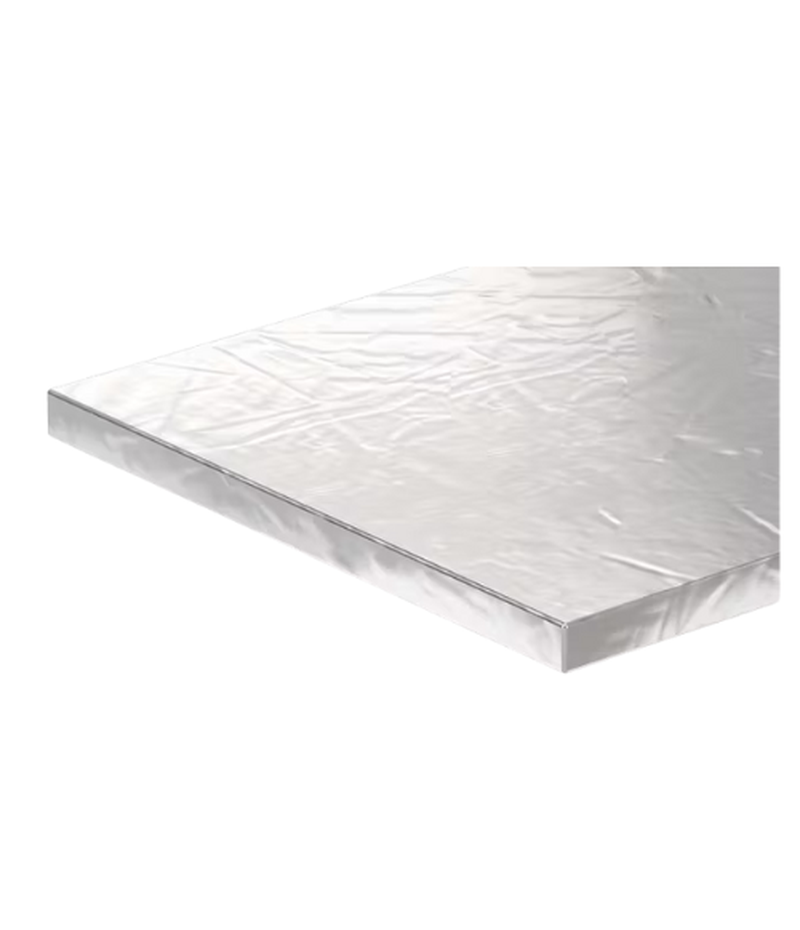

Vacuum Insulation Panel (VIP)
A Vacuum Insulation Panel (VIP) is an advanced insulation product consisting of a rigid, highly porous core material (such as fumed silica, microporous material, or fiberglass) that is encased in a low-permeability, metallic foil envelope and sealed under a high vacuum. The high vacuum eliminates almost all heat transfer through gas conduction and convection, resulting in an extremely low thermal conductivity (k) that is often 5 to 10 times better than conventional foam or fiber insulation.VIPs are used when the absolute maximum thermal performance is required within the most minimal possible thickness.
Main Components and Structure
The performance of a VIP is dependent on both the core material and the integrity of the sealed envelope.
| COMPONENT | MATERIAL | FUNCTION |
| Core | Fumed SiO2 / Microporous Material | Provides structural support and prevents radiation/solid conduction; supports the vacuum. |
| Envelope | Multi-layer barrier film (Metallized Polymer/Foil) | Maintains the high vacuum level; prevents gas ingress. |
| Vacuum | ~1 millibar (mbar) or lower | Eliminates gas conduction/convection, providing the ultra-low k value. |
| CLASSIFICATION | OPERATING TEMP RANGE | PRIMARY ADVANTAGE |
| General VIP | ~50°C to 80°C | Highest thermal resistance per thickness (low k). |
| High-Temp VIP | Up to ~100°C Envelope limited) | Extreme space efficiency in thermal applications. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Conductivity (k) | ULTRA LOW (0.002 to 0.004 W/m.K) | Heat transfer via air/gas is virtually eliminated by the vacuum. |
| Thickness Equivalence | Superior | 10 mm VIP often equals 50 mm to 100 mm of conventional insulation. |
| Service Life | Limited | Performance degrades slowly as the vacuum is lost due to minute gas permeation over time. |
Advantages and Key Characteristics
VIP are the pinnacle of static insulation technology, offering thermal performance that is impossible to achieve with atmospheric-pressure materials.
- Unmatched Space Savings: The primary and defining characteristic. When space is severely limited (e.g., in a refrigerator door, a thin wall, or a battery casing), VIPs deliver the required thermal resistance at the thinnest possible profile.
- Superior Energy Efficiency: In applications like refrigerated transport or high-efficiency buildings, VIPs provide immense energy savings by drastically reducing heat flow.
- Clean and Lightweight: The panels are lightweight and produce no dust or residue, making them ideal for integration into appliances and clean industrial systems.
Typical Industries and Applications
VIPs are utilized in high-value, temperature-critical applications:
- High-End Appliances: Used in refrigerators and freezers to achieve thinner walls and maximize internal storage volume while meeting energy efficiency standards.
- Cold Chain Logistics: Insulated boxes and containers for transporting pharmaceuticals, vaccines, and high-value perishables that require precise, long-duration temperature control.
- Building Construction: Used as a thin, highly insulating layer in wall systems, window frames, and specialized roofing where thickness must be minimal (e.g., historic buildings).
- Industrial Equipment: Insulation of specialized ovens, test chambers, and battery enclosures where temperature stability and minimal footprint are critical.
Technical Guidance and Limitations
VIPs are high-performance but have critical limitations related to their installation and longevity:
- Envelope Integrity is Critical: Any puncture, cut, or fold in the metallic envelope will immediately destroy the vacuum and cause the thermal conductivity to rise dramatically (often to the level of the core material alone). Therefore, VIPs cannot be cut or trimmed on site and must be sized exactly to the installation space.
- Thermal Bridging: The edges of the panel, where the envelope folds and the core is closest to the surface, represent a thermal bridge. Careful design is required to ensure the joints and edges do not compromise the overall insulating value.
- Temperature Limitation: The MST of VIPs is limited by the stability of the metallic envelope and the sealant, typically restricting them to below 100°C, though specialized versions may reach slightly higher temperatures. They are generally not used for hot-face furnace linings.
