Strontium Modifier – Al–Sr Master Alloy (10%)
The Al–Sr Master Alloy is a concentrated alloy containing 10% Strontium (Sr) with the balance being Aluminum (Al). It is primarily supplied in rod, ingot, or waffle form for addition to molten aluminum casting alloys, particularly those containing Silicon (Si) (e.g., A356, A380).
Its essential role is as a Modifier, where it chemically changes the morphology (shape) of the brittle, acicular (needle-like) Silicon phase into a fine, fibrous, or rounded structure. This transformation dramatically improves the alloy’s ductility, fracture toughness, and machinability.
Main Function and Mechanism
Strontium is the most effective and widely used element for the long-lasting modification of the eutectic silicon phase in aluminum alloys.
| COMPONENT | CHEMICAL SYMBOL | PRIMARY FUNCTION |
|---|---|---|
| Strontium | Sr | Modifier; changes Si crystal growth; promotes fibrous structure. |
| Aluminum | Al | Carrier metal; forms the bulk of the alloy. |
| CLASSIFICATION | DELIVERY METHOD | PRIMARY APPLICATION FOCUS |
|---|---|---|
| Modifier/Refiner | Rod, Waffle Ingot | Hypoeutectic and Eutectic Al–Si casting alloys for automotive and aerospace. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Ductility | DRAMATICALLY IMPROVED | Eliminates sharp crack initiation points caused by needle-like Si phases. |
| Modification Longevity | HIGH | Effect persists longer than Na modifiers. |
| Machinability | IMPROVED | Rounded Si phases reduce tool wear. |
-
The Modification Mechanism
In Al–Si casting alloys, the eutectic phase is composed of Aluminum and Silicon. Without modification, the Silicon precipitates as large, brittle, acicular (needle-like or plate-like) crystals.
The addition of Strontium (Sr) changes the way the Si crystals grow:
Mechanism: Strontium segregates to the Al/Si interface, poisoning the growth points of the Si crystal, suppressing plates and forcing Si to grow as fine, rounded, or fibrous particles.
Result: This modified microstructure eliminates stress concentration points, boosting alloy elongation (ductility) by 200% or more. -
Delivery and Form

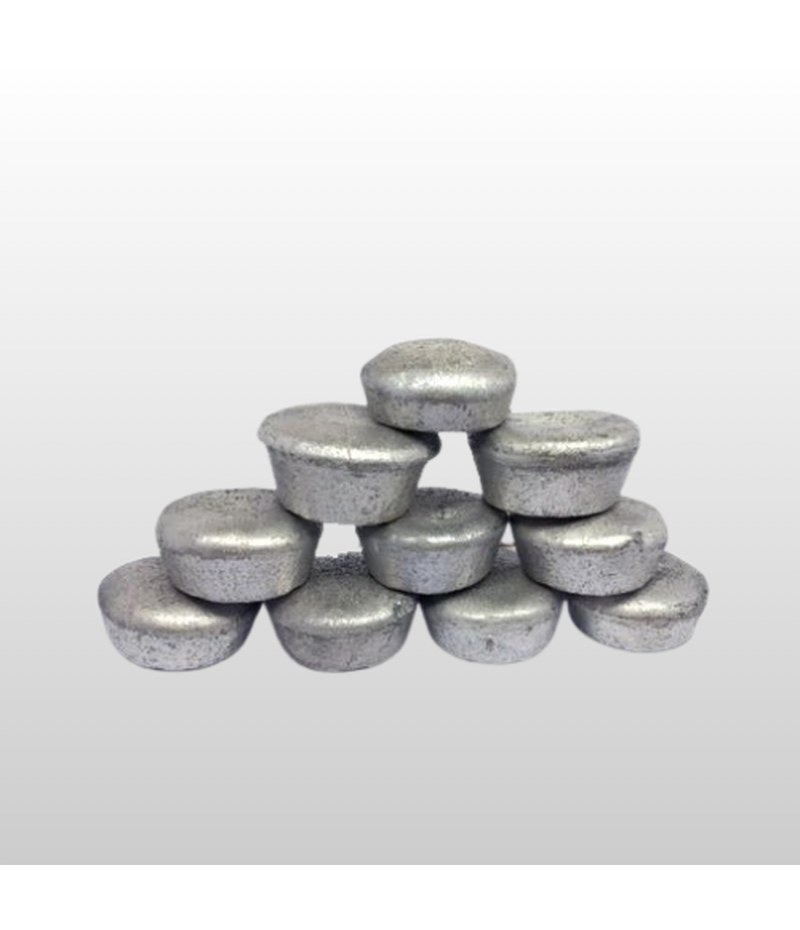

Rod: The Al–Sr alloy is often cast into a continuous rod for automated feeding.
Ingots/Waffles: Used for bulk additions. -
Technical Guidance
Target Residual: The needed Sr content is 0.008% to 0.025%, based on the Si content of the alloy.
Fade Time: The Sr effect fades over time as Sr oxidizes or is lost; holding time must be monitored.
Hydrogen Control: Sr modification slightly increases susceptibility to hydrogen porosity; thorough degassing is required before Sr addition.
