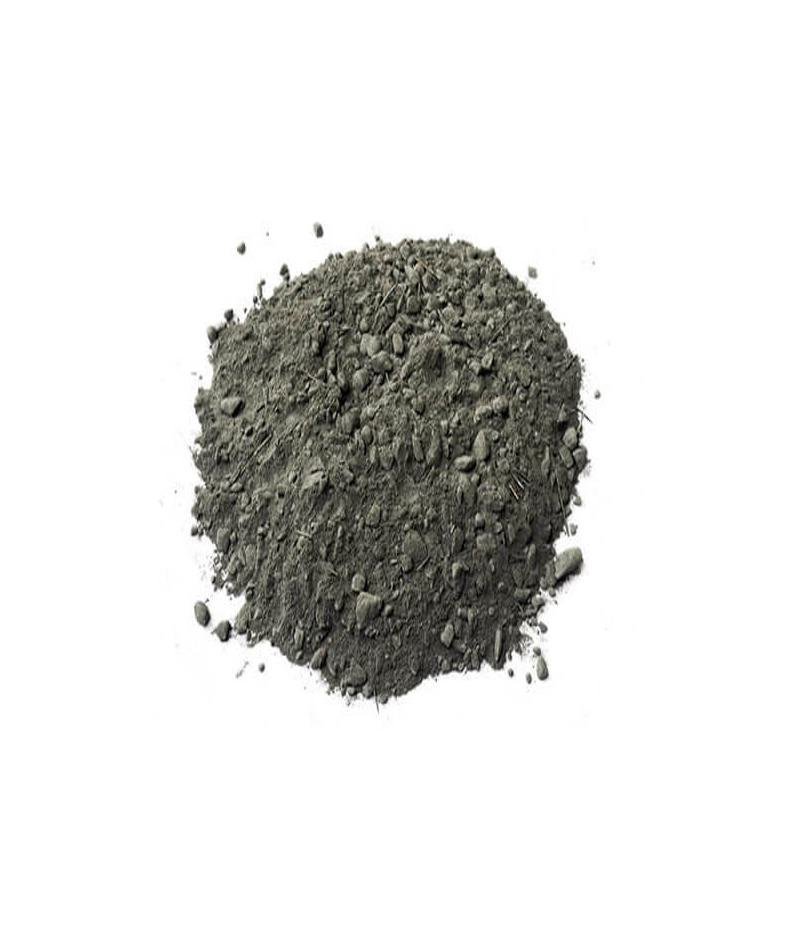

Steel Fiber Reinforced Castable
Main Chemical Compositions & Categories
SFRC is a composite material. The matrix is a standard refractory castable formulation (e.g., 60% AL2O3 or LCC 85% Al2O3) to which 300-series or 400-series stainless steel fibers are added, typically composing 1% to 5% of the castable’s weight.
| COMPONENT | CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| Matrix | High Alumina, Mullite, etc. | Refractoriness | Determines Tmax and chemical resistance |
| Steel Fibers | 1% to 5% by weight | Stainless Steel (SS 304/310) | CRITICAL: Bridges cracks, improves post-cracking strength |
| FIBER TYPE | SS Alloy (Example) | Tmax Limit | KEY APPLICATION NOTE |
| Standard | SS 304/316 (Ni/Cr) | ~1250°C | For moderate temperatures and good oxidation resistance |
| High-Temp | SS 310 (High Ni/Cr) | ~1400°C | For higher temperatures where oxidation is severe |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Flexural Strength | SIGNIFICANTLY INCREASED | Fibers bridge micro-cracks, dramatically increasing resistance to bending (Modulus of Rupture). |
| Thermal Shock/Spalling | EXCELLENT | Fibers absorb and distribute thermal stresses, preventing micro-cracks from propagating into catastrophic failures. |
| Impact Resistance | HIGH | Provides toughness and ductility, resisting damage from mechanical impact or rough handling. |
| Abrasion Resistance | IMPROVED | The cohesive, dense matrix resists surface erosion better than non-reinforced material. |
Advantages and Key Characteristics
The addition of steel fibers transforms the brittle nature of refractory ceramics into a tougher, more ductile material, significantly enhancing the life and reliability of the lining, especially in demanding structural and thermal environments.
- Enhanced Spalling Resistance: This is the primary benefit. During thermal cycling, temperature gradients create stress that leads to micro-cracks. The steel fibers act as internal anchors, holding the matrix together, preventing these micro-cracks from linking up into large, failure-inducing cracks.
- Increased Post-Cracking Strength (Toughness): Unlike brittle unreinforced castable, which fails completely when the maximum bending stress is exceeded, SFRC maintains a substantial portion of its load-bearing capacity even after cracking, often allowing the lining to continue functioning until a scheduled shutdown.
- Improved Abrasion/Erosion Resistance: By increasing the cohesion and density of the castable surface, the fibers help the lining resist erosion from high-velocity particles and mechanical scouring.
- Control of Shrinkage: The fibers restrict the initial shrinkage that occurs during the drying and firing process, resulting in a lining with better volume stability and fewer large shrinkage cracks.
Typical Industries and Applications
SFRC is used in high-wear, high-impact, and thermally stressed environments:
- Ferrous Industry (Steel): Ladle lips and slag zones (high impact/thermal shock), Electric Arc Furnace (EAF) roofs, coke oven charging hole sleeves, and high-wear reheating furnace hearths.
- Cement & Chemical Industry: Kiln discharge areas, pre-heater cone tips, and incinerator floors where high abrasion and thermal cycling are common.
- General Furnace Linings: Any lining requiring higher mechanical integrity, such as large monolithic sections and door linings.
Furnace Areas and Service Zones
They are specified for critical, exposed, and structural areas:
- IMPACT ZONES: Areas where raw material or slag is poured or dropped onto the refractory surface.
- LADLE RIMS: Used to resist mechanical damage from charging and scraping.
- MONOLITHIC ROOFS: Used to provide structural integrity and prevent large-scale cracking and collapse.
Key Data Sheet Properties to Consider
Selection criteria focus on the fiber properties and the mechanical enhancement:
- Fiber Material: CRITICAL VALUE. Must verify the grade of stainless steel (SS 310 is required for maximum temperatures > 1250°C) to prevent premature oxidation and failure of the fiber.
- Fiber Loading: Typically 1% to 5%$ by weight. Higher loading increases strength but also cost and can complicate mixing.
- Residual Cold Crushing Strength (CCS): Look for data showing the material’s CCS after thermal cycling to confirm durability.
- Modulus of Rupture (MOR) / Toughness Index: The flexural strength and post-cracking performance are the best indicators of the fiber’s benefit.
Technical Guidance: The maximum operating temperature of the SFRC is often dictated by the oxidation limit of the steel fiber, not the refractory matrix. For example, using SS 304 in a 1400°C furnace will lead to rapid fiber oxidation, loss of reinforcement, and potential FeO fluxing. The fibers must be thoroughly and evenly dispersed during mixing to be effective; balling or clumping will negate the benefits.5
