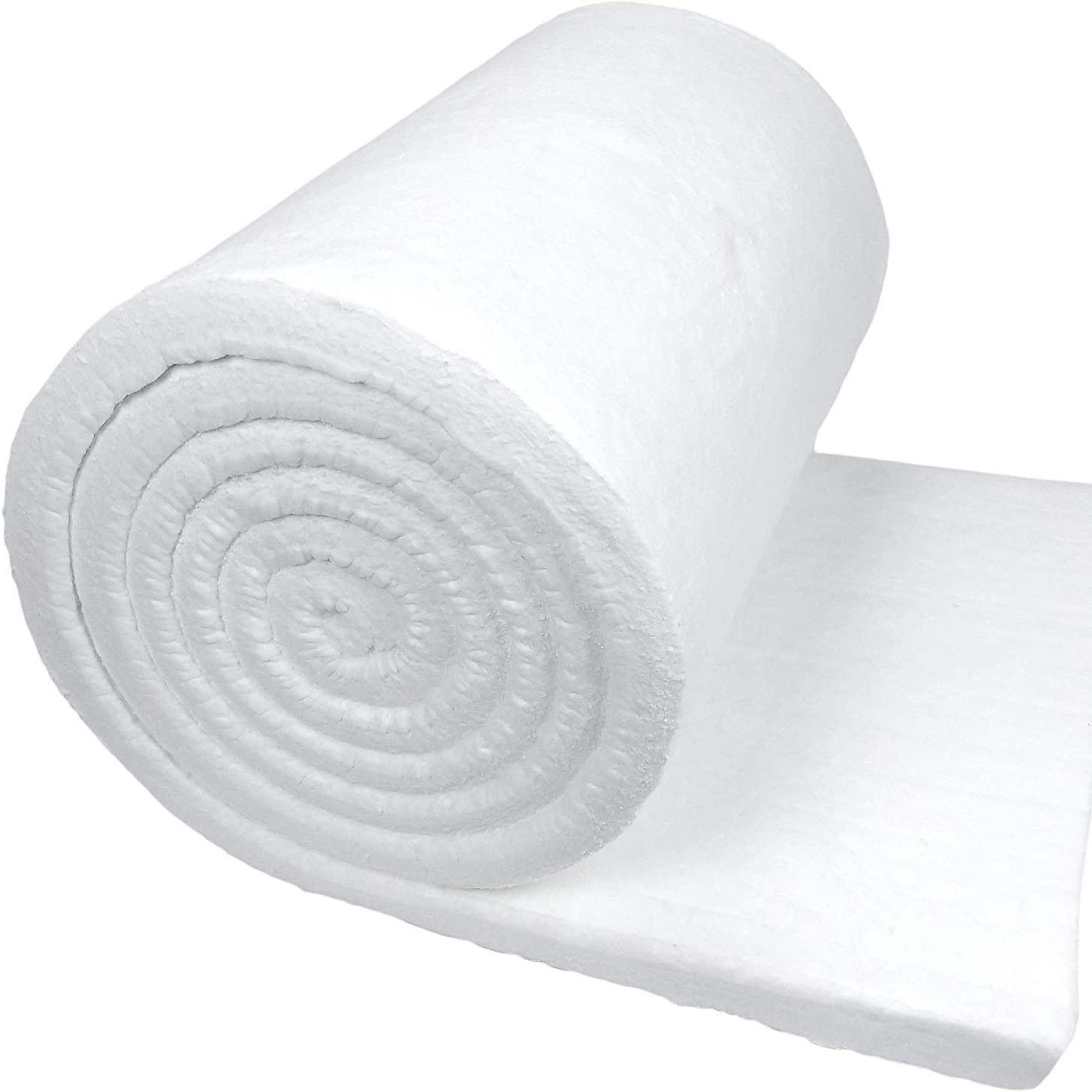

Soluble Fiber Blanket
A Soluble Fiber Blanket (often referred to as Low Bio-Persistence or LBP Fiber) is a high-temperature insulation product made from a blend of Calcium Oxide (CaO), Magnesium Oxide (MgO), Silica (SiO2), and Alumina (Al2O3). It is manufactured into a flexible, needled blanket form similar to standard Ceramic Fiber Blanket (RCF). However, the key design difference is its chemical composition, which allows the fibers to dissolve rapidly when exposed to the fluids in the human lung, dramatically reducing their potential health risk compared to RCF.
Main Chemical Compositions & Categories
The added alkaline earth oxides (Ca and Mg) are the key to its solubility.
| CATEGORY | KEY COMPONENTS | TYPICAL MST | PRIMARY ADVANTAGE |
| Soluble Fiber | CaO, MgO, SiO2, Al2O3 | ~1200°C (2192 F) | Low Bio-Persistence (Health & Safety) |
| Standard RCF | Al2O3, SiO2 | ~1260°C to 1540°C | Higher maximum operating temperature |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Bio-Persistence | LOW (High Solubility) | Fibers break down quickly in physiological fluids. |
| Thermal Conductivity (k) | EXTREMELY LOW | Similar to RCF; excellent insulation from trapped air. |
| Heat Storage | VERY LOW | Enables fast heating and cooling cycles (low thermal mass). |
| Thermal Shock | EXCELLENT | Flexible, low-mass structure resists cracking from rapid T changes. |
Advantages and Key Characteristics
Soluble Fiber Blankets offer comparable thermal performance to RCF in many applications, but are increasingly preferred or required due to enhanced worker safety regulations.
- Improved Health Profile: The defining feature. The fibers are engineered to have a half-life of days in lung fluid, compared to months or years for RCF. This makes them the primary choice in regions with strict health and safety standards.
- Excellent Thermal Performance: Retains the fundamental benefits of ceramic fiber, providing high thermal efficiency and low heat storage, making it ideal for energy-saving furnace linings.
- Flexibility and Ease of Use: Manufactured and installed just like RCF blanket—it is easily cut, wrapped, and anchored, making installation fast and convenient.
- Cost-Effectiveness: While often slightly more expensive than standard RCF, the cost is offset by reduced personal protective equipment (PPE) requirements and lower worker exposure risk during installation and maintenance.
Typical Industries and Applications
LBP Fiber is replacing RCF in many non-extreme-temperature applications:
- Furnace and Kiln Linings: Hot-face and backup insulation for furnaces, ovens, and kilns operating below 1200°C.
- Boilers and Heat Exchangers: Insulation for industrial and commercial boiler walls, flues, and piping.
-
Gasketing and Sealing: Used as a flexible gasket material where temperatures are within its operating range.
Key Data Sheet Properties to Consider
Selection is based on temperature limits and compliance requirements:
-
Maximum Service Temperature (MST): CRITICAL VALUE. Note that the MST of soluble fiber is generally lower than high-alumina RCF grades. Using it above its limit causes crystallization and loss of solubility/performance.
- Solubility: Should be confirmed via supplier data (e.g., biological solubility index) for compliance.
- Density and Thickness: These determine the insulating value (R-value) and mechanical strength, similar to RCF blankets.
Technical Guidance: Due to its composition, soluble fiber may have slightly different chemical resistance than RCF, particularly in high-steam environments. While the health profile is significantly better, standard dust safety precautions should still be followed during cutting and installation.
