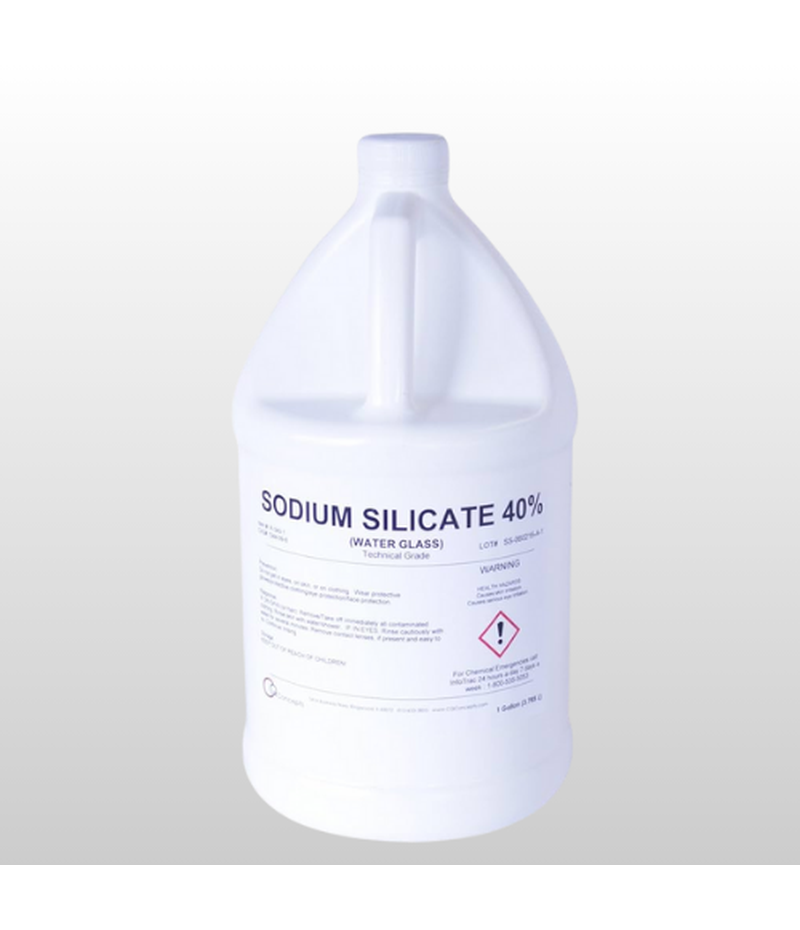

Sodium Silicate (Water Glass)
Sodium Silicate (Na₂O·nSiO₂), commonly known as Water Glass, is an alkaline solution created by dissolving amorphous silica (SiO₂) in molten sodium carbonate (Na₂CO₃) at high temperatures, or by dissolving silica in sodium hydroxide (NaOH) under pressure. It is typically supplied as a clear, viscous liquid.
Its properties as a binder are determined by its modulus, which is the ratio of silica to sodium oxide (SiO₂ / Na₂O):
- High Modulus (~3.0 to 3.8): Less alkaline, more viscous, provides higher strength and better heat resistance.
- Low Modulus (~2.0 to 2.5): More alkaline and more reactive.
Water Glass is essential as a low-temperature chemical binder in monolithic refractories and as the primary binder in the CO₂ gassing process for foundry molds.
Main Function and Characteristics
Water Glass acts as a powerful, non-hydraulic chemical binder that sets rapidly when treated with a chemical accelerator or heat.
| CHARACTERISTIC | VALUE RANGE | PRIMARY FUNCTION |
|---|---|---|
| Modulus (SiO₂ / Na₂O) | 2.0 to 3.8 | Determines reactivity, alkalinity, and final strength. |
| Purity | COMMERCIAL | Contains minor impurities; highly alkaline. |
| Set Mechanism | CHEMICAL/DRYING | Sets via dehydration, acidification, or reaction with metal oxides. |
CLASSIFICATION
- Binding Focus: Alkaline Chemical Binder – Forms a colloidal silica gel and final sodium silicate glass
- Primary Application Focus: Foundry Binders (CO₂ Gassing), Refractory Mortars, and Acid-Resistant Cements
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Setting Speed | FAST (when activated) | Allows for quick turnaround in molding or patching. |
| Cold Strength | HIGH | Provides excellent mechanical strength at room temperature/drying. |
| Refractoriness | MODERATE | Na₂O is a strong flux, limiting ultimate service temperature (~1200°C). |
- The CO₂ Gassing Mechanism (Foundry Use)
The most common industrial use for Water Glass is in the foundry for sand core and mold making:
- Process: Foundry sand is mixed with low-modulus Sodium Silicate solution. The mold is formed, and then pressurized carbon dioxide (CO₂) gas is passed through the sand.
- Reaction: The CO₂ reacts with the alkaline Sodium Silicate, causing a chemical set by precipitation of a rigid silica gel (SiO₂):
Na₂O·nSiO₂ + CO₂ → Na₂CO₃ + nSiO₂ (Gel) - Benefit: This creates a rigid, high-strength mold in a matter of seconds, making the process highly efficient.
- Role in Refractory Mortars
In refractory applications (under Refractory Mortars & Mixes), Water Glass is used to bind materials like fireclay or chrome-magnesite, particularly in air-setting or intermediate-temperature joints:
- Drying Set: It forms a hard bond simply upon drying and dehydration.
- Service Limit: The presence of Na₂O acts as a strong flux, meaning the refractory material will begin to soften and melt at lower temperatures (below 1400°C) than chemically pure refractories. Therefore, Water Glass-bonded materials are restricted to intermediate or back-up zones.
- Technical Guidance
- Knock-Out: In the foundry, the Na₂CO₃ byproduct of the CO₂ gassing process raises the melting point of the binder, making the sand difficult to “knock out” (break away) from the finished casting. For this reason, organic additives are often included to help the bond break down under the heat of the molten metal.
