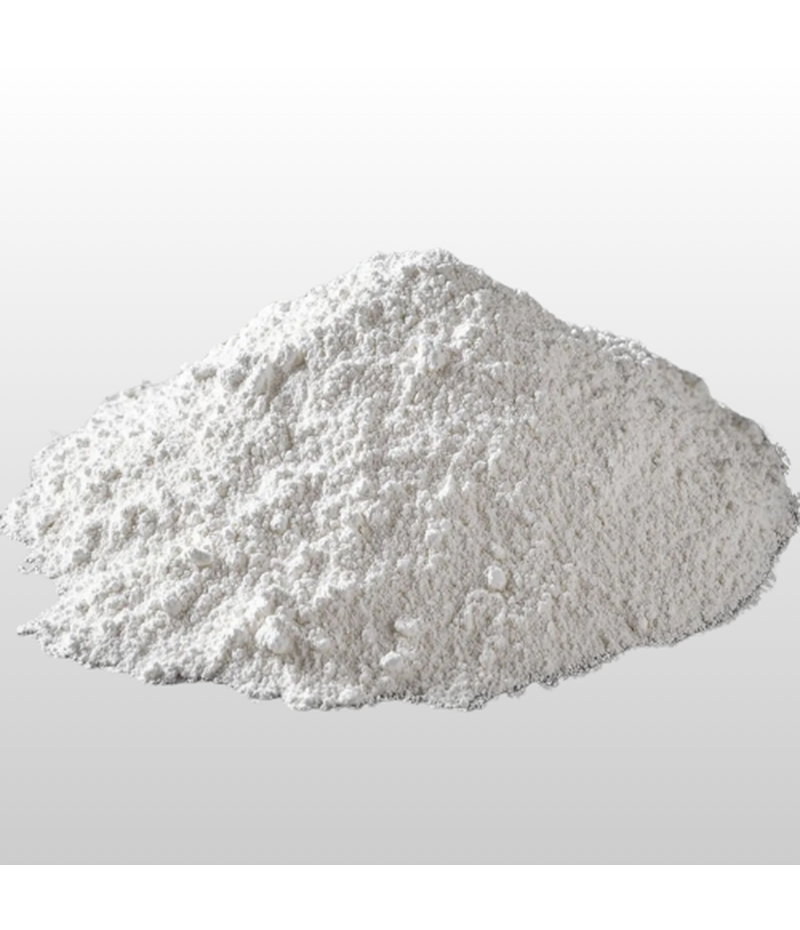

Soda Ash (Na₂CO₃)
Soda Ash (also known as Sodium Carbonate) is a white, odorless, strong alkaline salt (Na2CO3). It is a fundamental fluxing agent in the glass, ceramic, and chemical industries. Its primary industrial value lies in its ability to lower the fusion (melting) temperature of silica-based materials, which drastically reduces the energy and cost required for high-temperature processes.
Soda Ash is the key ingredient that turns high-melting silica (SiO2) into usable glass at practical industrial temperatures.
| COMPONENT | CHEMICAL FORMULA | PROPERTY HIGHLIGHT |
| Sodium Carbonate | Na2CO3 | Strong flux, decomposes at high T to release Na2O. |
| Active Flux | (Sodium Oxide) | The component that integrates into the glass matrix, lowering the melt T. |
| CLASSIFICATION | DECOMPOSITION TEMP. | PRIMARY APPLICATION FOCUS |
| Primary Flux | 851°C (1564 F) | Reducing the melting temperature of silica to form soda-lime glass. |
Key Fusion Reaction
When heated, the soda ash reacts with the primary glass-forming agent, silica (SiO2):
The final product is the common soda-lime-silica glass.
1. Glass Industry (The Largest Consumer)
Soda Ash is a non-negotiable raw material in the manufacturing of container glass, flat glass (windows), and fiberglass.
- Energy Savings: Pure silica sand melts at approximately 1700°C. Adding soda ash lowers the melt temperature to a manageable range of 1400°C to 1500°C, resulting in huge savings in energy and furnace refractory wear.
- Viscosity Control: It helps control the viscosity of the molten glass, making it workable for forming processes (e.g., blowing bottles or drawing flat sheets).
- The Trade-off: While Na2O provides an excellent flux, excessive use lowers the chemical durability of the glass. Therefore, lime (CaO) or dolomite (CaMg(CO3)2 is always added to restore chemical resistance and create stable soda-lime glass.
2. Chemical and Metallurgical Applications
Beyond glass, soda ash is a key alkaline agent:
- Alkaline Source: Used to control pH and neutralize acids in water treatment and various chemical processes.
- Detergent and Soap Production: A builder and filler used in many cleaning formulations due to its water-softening and cleaning properties.
- Metallurgy (Desulfurization): Used as a flux or ladle additive in some iron/steelmaking operations for desulfurization (removing sulfur) and the cleanup of foundry iron.
Typical Grades
- Light Soda Ash: Low bulk density powder, used in detergent and chemical manufacturing.
- Dense Soda Ash: Granular, high bulk density, which is the preferred grade for glassmaking as it minimizes dust and prevents segregation when mixed with sand and limestone in the batch house.
Technical Guidance and Considerations
- CO2 Evolution: Like limestone, the decomposition of soda ash releases carbon dioxide (CO2), which is a key component of the overall process. This gas must be managed, but its evolution also plays a role in stirring the melt and helping with the fining (bubble removal) process.
- Source: Soda Ash is sourced either from mining natural deposits (trona, primarily in the US) or produced synthetically (Solvay process). Natural soda ash is often purer and less energy-intensive to produce.
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
