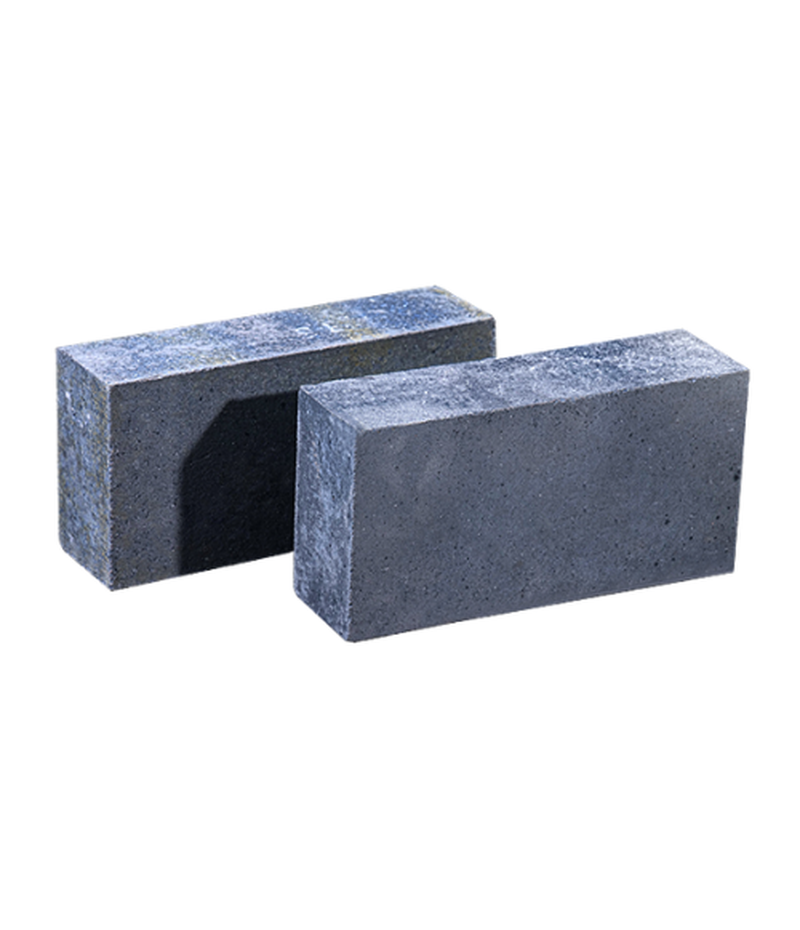

Silicon Carbide Brick (SiC > 90%)
Main Chemical Compositions & Categories
High-SiC bricks are composed predominantly of crystalline SILICON CARBIDE (SiC). The high purity is achieved using highly refractory bonds (like SiC itself, Si3N4, or Sialon) and minimal fluxing agents, distinguishing them from common Clay-Bonded SiC (which is typically 50-70% SiC).
| CATEGORY | SiC CONTENT | BONDING / MATRIX | PRIMARY ADVANTAGE |
| Recrystallized SiC (ReSiC) | > 98% | SiC to SiC bond | Maximum purity, highest refractoriness |
| Nitride-Bonded SiCĀ (NBSiC) | 70% to 85% | Si3N4 bond | Superior creep resistance, low permeability |
| Reaction-Bonded SiCĀ (RBSiC) | > 85% | Si bond (residual Si) | Maximum hardness and thermal shock resistance |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Shock Resistance | OUTSTANDING | High thermal conductivity (Tc) and extremely low thermal expansion (CTE) prevent internal stress accumulation. |
| Hot Strength (CISC) | VERY HIGH | The SiC crystal structure maintains strength and minimizes creep up to 1650Ā°C. |
| Abrasion Resistance | EXTREME | SiC is intrinsically one of the hardest non-oxide materials, highly resistant to particle erosion. |
| Chemical Inertness | EXCELLENT | Resistant to molten non-ferrous metals, acid/neutral slags, and alkali attack. |
Excellent for blast furnace stacks, waste incinerator linings, and zones requiring high heat transfer. Thermal conductivity > 20 W/mĀ·K. Specs are indicative placeholders.
āØ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
š¬ Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materialsāsuch as specific bricks, castables, or raw materialsābefore committing to a full order.
š” Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
š¦ Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorptionāespecially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placardingāespecially for any items classified as Dangerous Goodsāto ensure full compliance with international and domestic transport regulations.
ā Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materialsāfrom Alumina-Silicate Bricks to high-performance Silicon Carbide Bricksāthe RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the materialāsuch as our Refractory Castables or Alumina-Silicate Bricksāin your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
