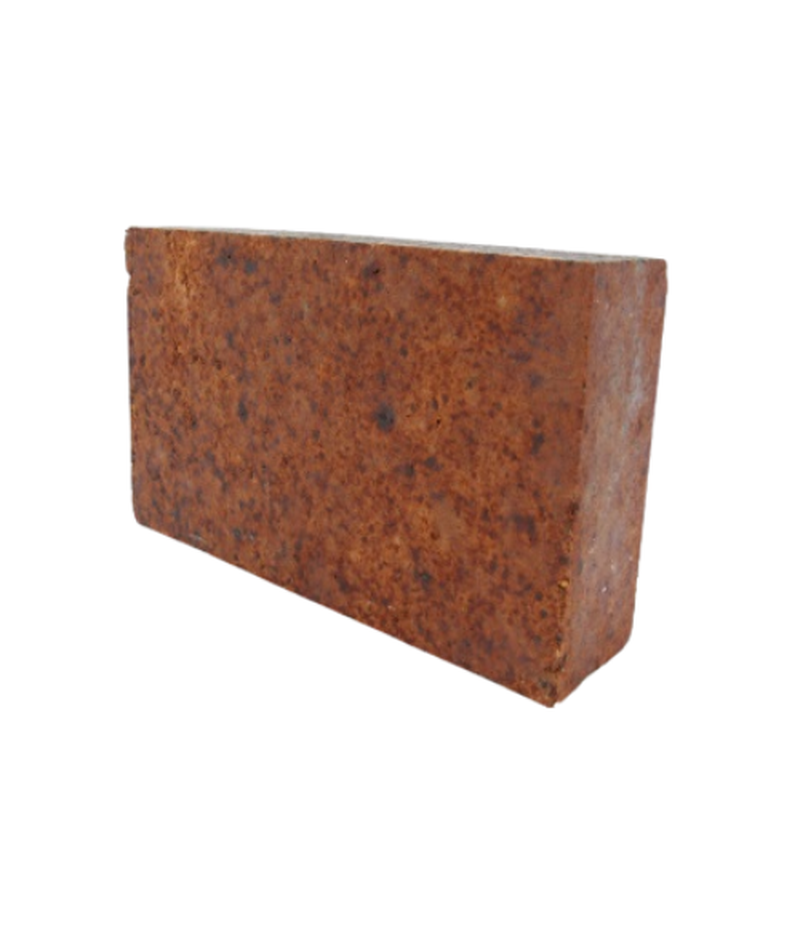

Silica Brick – Silica Mullite
Main Chemical Compositions & Categories
Silica Mullite bricks are intermediate refractories containing high SILICA (SiO2) and a significant proportion of MULLITE (Al2O3-SiO2). The Mullite phase is introduced either through raw materials or formed in-situ during high-temperature firing.
| CATEGORY | SiO2 CONTENT | Al2O3 CONTENT | KEY FEATURE |
| SILICA MULLITE | 70% to 85% | 15% to 28% | Balanced TUL and thermal stability |
| SEMI-SILICA | 85% to 92% | $\text{< 10\%}$ | Max TUL, less thermal shock resistance |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | VARIATION WITH MULLITE CONTENT |
| Temperature Under Load (TUL) | VERY HIGH (Excellent) | SLIGHTLY DECREASES compared to pure Silica, but the high TUL is maintained by the SiO2 matrix. |
| Thermal Shock | GOOD | SIGNIFICANTLY IMPROVES over standard Silica or Semi-Silica due to the presence of the Mullite phase, which has a lower thermal expansion coefficient. |
| Corrosion | EXCELLENT RESISTANCE to ACIDIC slag and glass | IMPROVES structural integrity against corrosion compared to Silica, but is still rapidly attacked by BASIC fluxes (CaO, MgO). |
| Erosion Resistance | GOOD | IMPROVES over true Silica due to the dense, interlocking nature of the Mullite network. |
Advantages and Key Characteristics
Silica Mullite bricks are a choice for processes that require the high-temperature TUL of Silica but also experience higher levels of thermal cycling or abrasion than pure Silica can tolerate.
- Improved Thermal Cycling: The Mullite phase acts as a buffer against thermal stress, reducing the likelihood of cracking and spalling, which are common failure modes for true Silica bricks.
- High Load Bearing (TUL): The dominant SiO2 matrix ensures the structural load-bearing capability is maintained almost up to the fusion point, essential for large, self-supporting crowns.
- Erosion Resistance: The introduction of the rigid, hard Mullite phase provides better resistance to physical wear from high-velocity gases or abrasive dust compared to the glassier matrix of pure Silica.
Typical Industries and Applications
Silica Mullite is used in high-temperature zones that need both structural stability and resilience:
- Glass Industry: Crowns, regenerator settings, and flues in glass melting furnaces that undergo frequent or aggressive thermal changes.
- Coke Ovens: Walls and roofs, where a balance of high TUL and resistance to thermal variation is needed.
- Furnace Crowns: Used where the crown may need to be repaired or cooled down periodically, which would risk catastrophic failure with true Silica.
Furnace Areas and Service Zones
They are used in zones demanding structural integrity under varying heat:
- FURNACE CROWNS AND ARCHES: Where structural strength must be maintained, but where temperature gradients or cooling cycles are expected.
- TRANSITION ZONES: Areas where refractories meet other material types or where temperature fluctuations are greatest.
Key Data Sheet Properties to Consider
Selection criteria focus on the successful marriage of the two key phases:
- Al2O3-SiO2 Content: Verify the composition is in the range that maximizes Mullite formation while retaining high SiO2 content for TUL.
- Thermal Shock Resistance: Look for supplier data demonstrating superior thermal cycling resistance compared to standard Silica grades.
- Refractoriness Under Load (TUL): Must meet the required structural stability temperature, often only slightly lower than pure Silica.
- Permanent Linear Change (PLC): Critical to ensure volume stability is maintained after the initial thermal cycle.
Technical Guidance: Silica Mullite should be specified when thermal stability (resistance to shock) is the limiting factor for a true Silica crown. It provides a safety factor against cracking during unexpected cooling events or rapid furnace heat-up, while retaining the essential high-temperature load-bearing performance.
