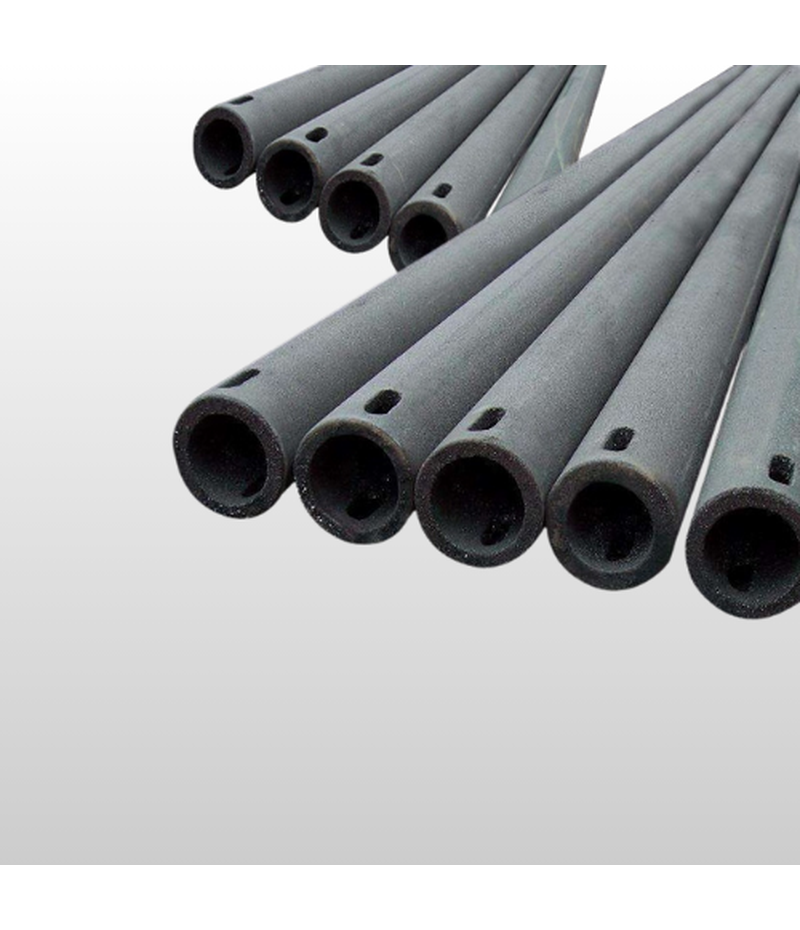

SiC Roller
Main Chemical Compositions & Categories
SiC Rollers are manufactured from high-purity SILICON CARBIDE (SiC), typically using Reaction Bonding or Nitride Bonding techniques to achieve the required density, strength, and straightness.
| CATEGORY | BONDING / MANUFACTURING | OPERATIONAL TEMP. LIMIT | PRIMARY APPLICATION |
| Reaction-Bonded SiC (RBSiC) | SiC bonded with residual Si | ~1400°C | Most common for roller kilns; high strength, low porosity. |
| Nitride-Bonded SiC (NBSiC) | SiC bonded with Si3N4 | ~1650°C | Higher hot strength, excellent chemical resistance. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Bending Strength (HMOR) | EXCEPTIONAL | High SiC purity and dense bonding provide superior rigidity and resistance to bending/sagging under load. |
| Thermal Shock Resistance | OUTSTANDING | High thermal conductivity (Tc) allows for continuous in-and-out cycling of the rollers through the hot zone without cracking. |
| Wear Resistance | VERY HIGH | The hardness of SiC and high-density surface minimizes wear and abrasion from product contact. |
| Dimensional Stability | EXCELLENT | Minimal creep or thermal distortion ensures consistent product travel and prevents roller jamming. |
Advantages and Key Characteristics
SiC Rollers are critical for modern roller hearth kiln technology, enabling high-speed production, high-quality output, and energy efficiency that is impossible with traditional oxide rollers.
- Enables Rapid Firing Cycles: The SiC material can withstand the extreme thermal gradients experienced as the rollers continuously pass through the hot zone and return to the cool zone. This allows for significantly faster conveyor speeds and, therefore, higher production throughput.
- Minimizes Energy Costs: SiC’s high Tc means the rollers heat up and cool down faster, wasting less energy on heating the roller itself, contributing to lower fuel consumption per unit of product.
- Superior Load-Bearing: The high Hot Modulus of Rupture (HMOR) allows the use of thinner rollers with wider spans between support bearings, maximizing the furnace’s usable width and load capacity.
- Prevents Contamination: Unlike metallic rollers or less pure ceramics, SiC is highly inert and non-contaminating, which is essential for firing high-quality products like tiles and sanitary ware.
Typical Industries and Applications
SiC Rollers are the standard for high-volume, continuous firing processes:
- Tile Industry: Continuous firing of ceramic wall and floor tiles (the main application globally).
- Sanitary Ware: Firing of toilets, sinks, and other ceramic sanitary products.
- Technical/Advanced Ceramics: Sintering and heat treatment of components where rapid, continuous processing is required.
Furnace Areas and Service Zones
They are specified as the primary product conveyance system within the hot zone:
- ROLLER HEARTH KILN: The entire bed of rollers carrying the product through the preheating, firing, and cooling zones.
- KILN ENTRANCE/EXIT: Rollers must tolerate rapid temperature changes during loading and unloading.
Key Data Sheet Properties to Consider
Selection criteria focus heavily on mechanical strength and thermal properties:
- Hot Modulus of Rupture (HMOR): CRITICAL VALUE. Must be exceptionally high at the service temperature (1250°C to 1400°C) to guarantee performance without sag.
- Thermal Conductivity (Tc): High value (e.g., 15 – 50 W / (m.K)) is required for energy efficiency and thermal shock resistance.
- Straightness/Concentricity: High dimensional precision is required to ensure smooth product conveyance and prevent vibration or wear.
- Diameter and Length: Must be matched precisely to the kiln’s specific design and loading requirements.
Technical Guidance: RBSiC is typically the most appropriate material for SiC rollers due to its low porosity and optimal balance of strength and cost. Proper maintenance involves regular checks for roller misalignment and avoiding point loading, which can lead to premature failure.
