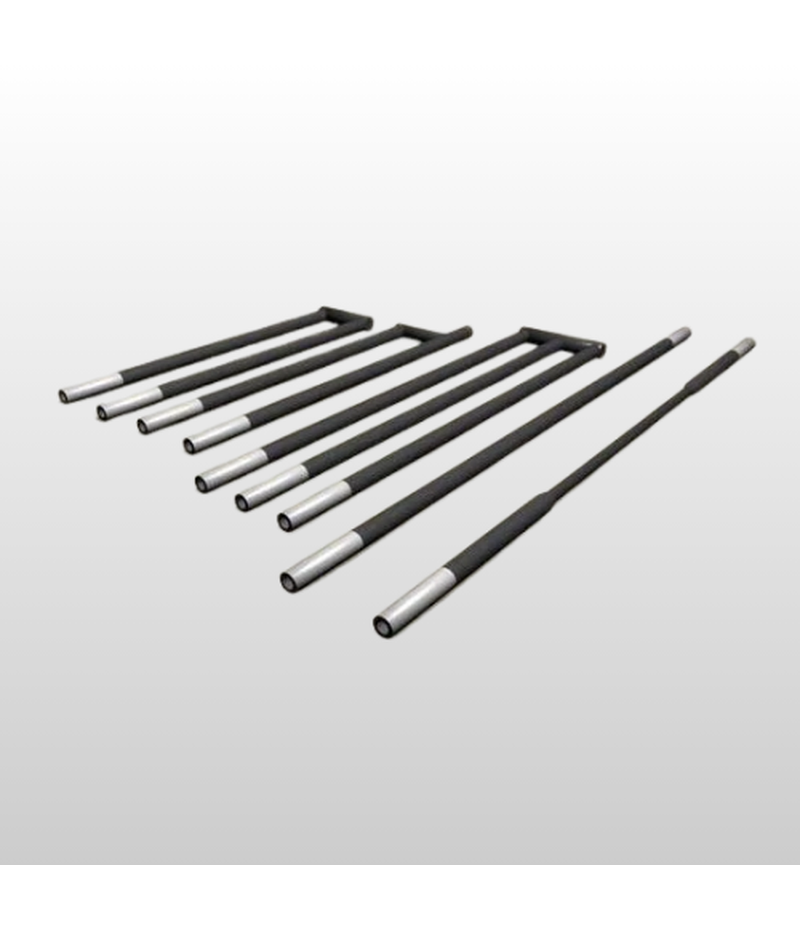

SiC Rod
Main Chemical Compositions & Categories
SiC Rods used as heating elements are composed of high-purity SILICON CARBIDE (SiC), typically manufactured by Reaction Sintering or Recrystallization techniques to optimize their electrical and thermal properties.
| CATEGORY | BONDING / MANUFACTURING | PRIMARY FUNCTION | OPERATIONAL TEMP. LIMIT |
| Glow Bar/Rod | Recrystallized or Reaction Bonded SiC | Electric Heating Element | Up to 1650°C in air |
| Structural Rod | Nitride or Reaction Bonded SiC | Kiln Furniture Support (Secondary) | Up to 1650°C |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Maximum Operating Temperature | EXTREME (1650°C) | SiC forms a protective SiO2 layer, allowing operation in air up to higher temperatures than most metallic elements. |
| Power Density | HIGH | Can deliver high power output through a small cross-sectional area. |
| Thermal Shock Resistance | OUTSTANDING | High thermal conductivity and low coefficient of thermal expansion (CTE) allow for fast temperature ramp-ups. |
| Service Life | LONG & RELIABLE | Excellent stability in continuous use across various atmospheres (air, inert gas, vacuum). |
Advantages and Key Characteristics
SiC Rod heating elements are the premium choice when high-temperature capability, reliability, and ease of maintenance are crucial, often used to replace traditional metal elements.
- High-Temperature Operation: SiC elements can achieve higher operating temperatures than Nichrome or other metallic elements, allowing for firing processes that require extreme heat.
- Self-Protection (Oxidation Resistance): When exposed to air at high temperatures, SiC forms a thin, dense, protective layer of silica (SiO2). This layer prevents further oxidation, allowing the element to be used reliably in oxygen-containing atmospheres.
- Minimal Aging (Resistance Drift): While all heating elements age (resistance increases over time), SiC elements exhibit a slow and predictable increase in electrical resistance, allowing for easier power control and long service life.
- Rigidity and Structural Integrity: Unlike coil or folded metallic elements, the solid SiC rod design is self-supporting, simplifying installation and maintenance.
Typical Industries and Applications
SiC Rods are widely used in industrial furnaces and kilns requiring high, clean heat:
- Ceramics Industry: Kilns for firing advanced ceramics, ferrites, and structural ceramics.
- Metallurgical Industry: Heat treatment, annealing, and sintering furnaces for specialty alloys.
- Glass Industry: Fining and melting zones where clean, localized heat is required.
- Laboratory Furnaces: High-temperature research and testing equipment.
Furnace Areas and Service Zones
They are specified as the primary heat source within the furnace chamber:
- HOT ZONE/CHAMBER: Mounted horizontally or vertically through the furnace walls to radiate heat directly to the product or kiln furniture.
- PRECISE HEATING ZONES: Used in multi-zone furnaces where tight temperature uniformity and control are critical.
- INDIRECT HEAT: Used to heat air or gases flowing through a retort before entering the hot zone.
Key Data Sheet Properties to Consider
Selection criteria focus on electrical and thermal performance:
- Resistance (Ohms): CRITICAL VALUE. The base electrical resistance at room temperature, which dictates the required power supply voltage/amperage.
- Hot Zone/Cold End Ratio: The heating portion (hot zone) has a higher resistance than the contact ends (cold ends), which are typically thicker and less porous to minimize heat outside the working zone.
- Operating Temperature/Surface Load: Specified to determine the maximum wattage the element can safely handle without premature failure.
- Diameter and Length: Must match the furnace chamber dimensions and required heat output.
Technical Guidance: When replacing SiC elements, they should be grouped based on their measured resistance (as new elements have lower resistance than aged ones) to maintain uniform power and temperature distribution across the furnace. The elements are sensitive to terminal overheating, so proper electrical connections are critical.
