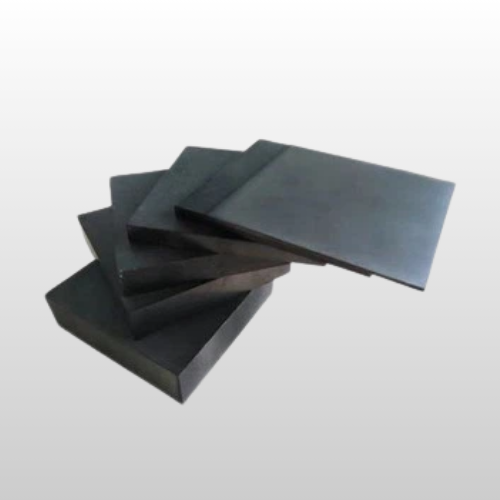

SiC Push Plate
A Silicon Carbide (SiC) Push Plate is a large, flat, rectangular refractory slab used as a conveyor surface in pusher-type kilns and furnaces. It is designed to be placed directly on the kiln hearth and loaded with products or saggers. Hydraulic or mechanical rams periodically push the entire plate (and its load) forward through the high-temperature zone. SiC is the preferred material due to its exceptional hot strength, resistance to deformation (creep), high thermal conductivity, and superior resistance to thermal shock under heavy loads.
Main Chemical Compositions & Categories
SiC Push Plates are dense, high-performance ceramic components engineered for structural stability and precision flatness at extreme temperatures.
| MATERIAL BASE | BINDING TYPE | TYPICAL MST | PRIMARY ADVANTAGE |
| Recrystallized SiC (R-SiC) | Self-bonded (purest form) | ~1650°C to 1700°C | Maximum purity and creep resistance for ultra-high T applications. |
| Nitride Bonded SiC (N-SiC) | Silicon Nitride (Si3N4) | ~1400°C to 1600°C | High strength-to-weight ratio and good thermal shock resistance. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Hot Strength/Creep | MAXIMUM | Withstands constant compressive load from the ramming force and the weight of the product at peak T without slumping. |
| Thermal Conductivity | EXTREMELY HIGH | Rapidly transfers heat from the kiln hearth to the product, enabling shorter soaking times. |
| Thermal Shock | SUPERIOR | Resists cracking when pushed into the hot zone, or during furnace upsets. |
| Flatness | CRITICAL | Maintained dimensional stability prevents jamming and uneven support of products. |
Advantages and Key Characteristics
SiC Push Plates are fundamental to the operation of continuous pusher kilns, providing reliable material handling that ensures production consistency and high throughput.
- Structural Integrity under Load: Push plates carry the entire production load through the furnace. The superior RUL (Refractoriness Under Load) and creep resistance of SiC ensure the plates remain flat and stable, preventing product damage or furnace jamming that is common with less rigid materials.
- Efficient Heat Transfer: The high thermal conductivity of SiC ensures uniform heating of the plate itself, and consequently, a uniform temperature profile for the products placed on it. This results in consistent firing and reduced temperature gradients.
- High Throughput and Automation: Pusher kilns are highly automated, and SiC plates enable this efficiency. They can be pushed continuously and rapidly, maximizing the amount of product processed per day compared to batch kilns.
- Long Service Life: The hardness and resistance to thermal fatigue mean that SiC plates provide a long operational life, minimizing replacement frequency and associated downtime.
Typical Industries and Applications
This component is specialized for continuous thermal processing:
- Advanced Ceramics: Sintering electronic components, substrates, technical ceramics, and insulators in high-volume production.
- Powder Metallurgy: Conveying metal powders, carbide parts, and magnetic materials through high-temperature sintering furnaces.
- Specialty Chemicals: Calcination processes requiring continuous, controlled advancement through a hot zone.
Selection and Maintenance
Selection is based on the required operational temperature and load:
- R-SiC is required for the highest loads and temperatures (> 1600°C) where dimensional stability (anti-creep) is critical.
- Plate Dimensions: Must be manufactured to precise tolerances to ensure smooth movement on the kiln hearth and to fit the ramming system.
Technical Guidance: Proper alignment of the pusher system is critical; uneven ramming force can lead to chipping or cracking of the plate edges. The kiln hearth on which the plate slides must be kept clean of debris to prevent excessive friction or jamming. Plates used above 1600°C must be protected from high oxygen concentrations to prevent surface oxidation.
