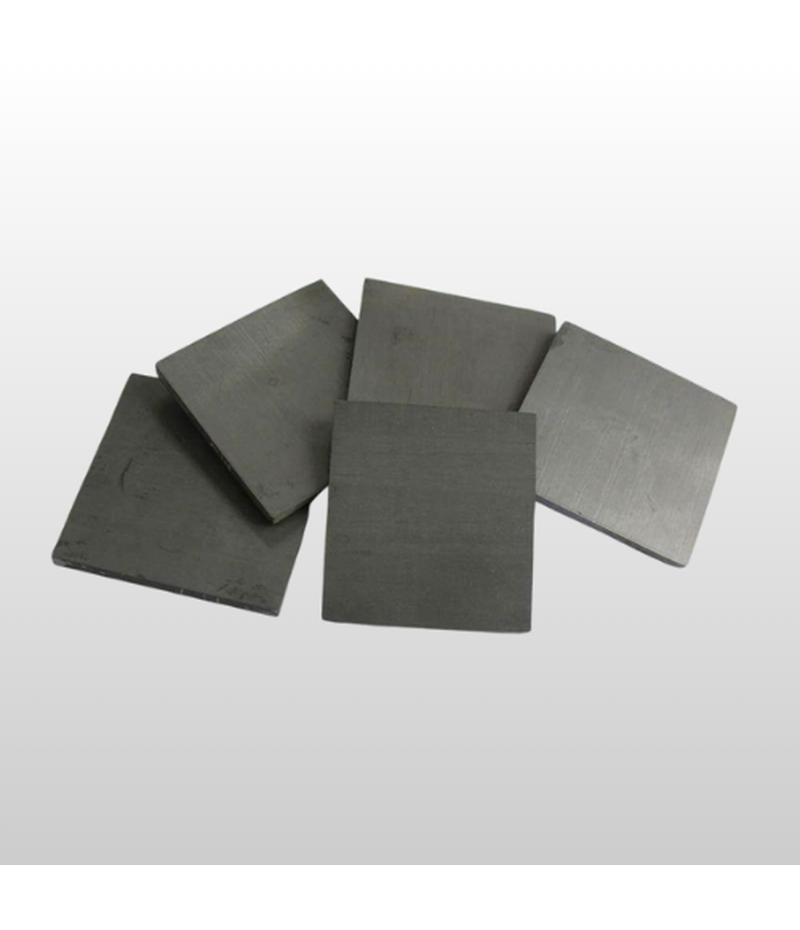

SiC Plate (Structural)
Main Chemical Compositions & Categories
SiC Plates are manufactured from high-purity SILICON CARBIDE (SiC). They are typically produced via pressing and firing to achieve dense, flat geometries.
| CATEGORY | BONDING / MANUFACTURING | OPERATIONAL TEMP. LIMIT | PRIMARY APPLICATION |
| Recrystallized ReSiC) | SiC to SiC bond | ~1650°C | High purity, maximum refractoriness |
| Reaction-Bonded SiC (RBSiC) | SiC bonded with residual Si | ~1400°C | High strength, high thermal shock resistance, cost-effective |
| Nitride-Bonded SiC (NBSiC) | SiC bonded with Si3N4 | ~1650°C | Excellent hot strength and chemical inertness |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Shock Resistance | OUTSTANDING | Very high thermal conductivity and exceptionally low coefficient of thermal expansion (CTE) allow for fast heating/cooling cycles. |
| Hot Strength (MOR) | EXCELLENT | Maintains rigidity and minimal sag under load at temperatures up to 1650°C. |
| Thermal Mass (Dead Weight) | MINIMAL | High strength-to-weight ratio maximizes the useful payload and reduces energy consumption. |
| Surface Finish/Flatness | HIGH | Can be produced with excellent dimensional stability, crucial for stacking and product quality. |
Advantages and Key Characteristics
SiC Structural Plates are utilized in kiln furniture systems to support products, maximize stacking density, and dramatically improve the overall energy efficiency of the firing process.
- Maximizing Energy Efficiency: SIC‘s high thermal conductivity ensures heat is quickly transferred to the product, not wasted heating a large support structure. Furthermore, the low thermal mass allows for faster kiln cycling (shorter heat-up/cool-down times), leading to increased production capacity and lower fuel consumption.
- Payload Optimization: The high hot strength means plates can be made thinner and lighter than their oxide refractory counterparts (e.g., Mullite or Cordierite). This reduces the unproductive “dead weight” of the kiln car, maximizing the valuable product payload per run.
- Dimensional Stability: Resistance to creep, warpage, and thermal deformation ensures that stacked plates remain flat and stable throughout the firing cycle, which is essential for maintaining product geometry and preventing damage.
- Chemical Inertness: Suitable for clean firing applications, as SiC is non-reactive with most products and furnace atmospheres, minimizing contamination.
Typical Industries and Applications
SiC plates are vital components in modern, high-efficiency thermal processing:
- Advanced Ceramics: Firing sensitive electronic, automotive, or aerospace ceramics that require precise temperature control and clean environments.
- Sanitary Ware/Tableware: Used as kiln setters and plates to maximize stacking density in continuous tunnel kilns.
- Sintering and Heat Treatment: Support trays for metal powder sintering and heat treatment processes.
Furnace Areas and Service Zones
They are specified as structural elements within the hot zone:
- KILN FURNITURE SETTERS: Used as the base or intermediate layers to separate and support product stacks on a kiln car.
- SUPPORT SHELVES: Flat, horizontal supports in periodic or high-temperature box furnaces.
- HEAT EXCHANGER PLATES: Used in specialized recuperators or heat recovery systems due to their high thermal conductivity.
Key Data Sheet Properties to Consider
Selection criteria focus on load-bearing capacity and thermal properties:
- Hot Modulus of Rupture (HMOR): CRITICAL VALUE. Must be checked at the maximum service temperature to confirm that the selected thickness and span can handle the product load.
- Thermal Conductivity: Look for high values (e.g., 15 – 50 W / (m.K)) to quantify energy efficiency gains.
- Creep Rate: Must be extremely low to ensure flatness and dimensional stability over the campaign life.
- Dimensional Tolerance/Flatness: Often specified by the user to ensure successful stacking and automated handling.
Technical Guidance: When specifying SiC plates, the RBSiC grade is often the most cost-effective solution for structural applications up to 1400°C due to its high strength and density. For temperatures above this limit or in highly oxidizing/reducing atmospheres, ReSiC or NBSiC should be considered.
