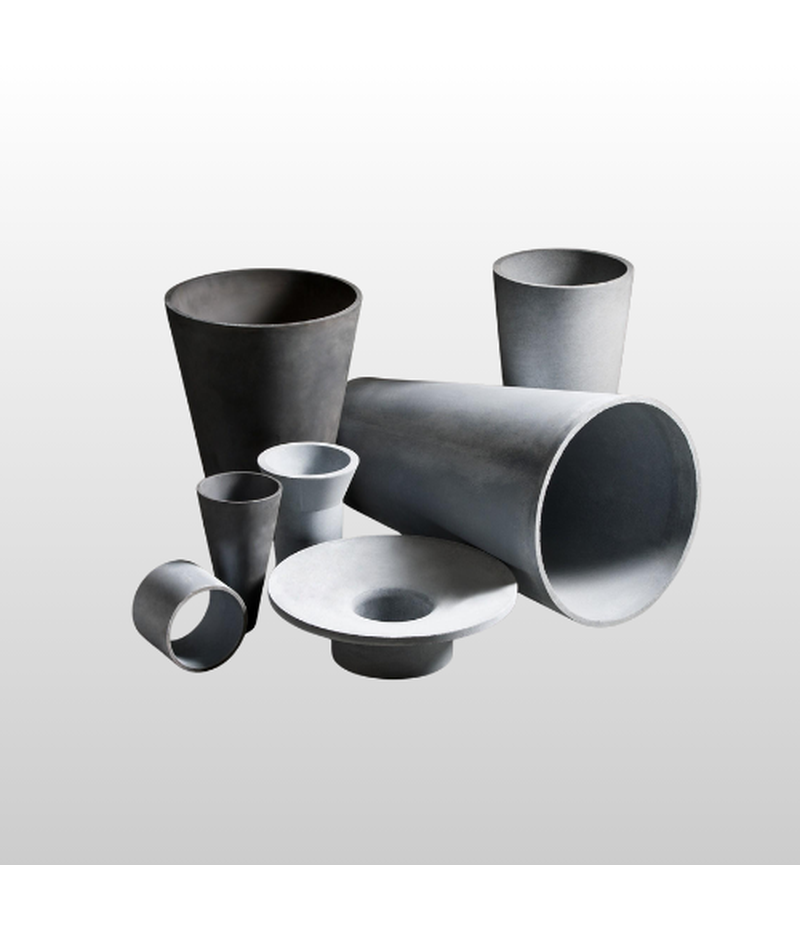

SiC Cyclone Liner
Main Chemical Compositions & Categories
SiC Cyclone Liners are structural, wear-resistant ceramics composed primarily of high-purity SILICON CARBIDE (SiC). They are typically manufactured as monolithic or segmental shapes using advanced bonding techniques to ensure a dense, uniform, and hard structure.
| CATEGORY | BONDING / MANUFACTURING | KEY FEATURE | PRIMARY ADVANTAGE |
| Reaction-Bonded SiC (RBSiC) | SiC bonded with residual Si | High density, excellent hardness | Maximum abrasion and thermal shock resistance |
| Sintered SiC (SSiC) | Pure SiC bond | Highest purity, minimal free Si | Extreme chemical inertness and hot strength |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Abrasion Resistance | OUTSTANDING | SiC is extremely hard (Mohs 9.5), resisting wear from high-velocity particles (e.g., coal dust, cement clinker). |
| Thermal Shock Resistance | EXCELLENT | High thermal conductivity and low coefficient of thermal expansion (CTE) allow the liner to tolerate rapid temperature fluctuations. |
| High Temperature Stability | VERY HIGH | Maintains strength and dimensional stability up to 1400°C (RBSiC) or 1650°C (SSiC). |
| Erosion/Corrosion | EXCELLENT | Highly inert to most acids, alkalis, and complex flue gas chemistries. |
Advantages and Key Characteristics
SiC Cyclone Liners are specialized to provide extended service life in zones where the kinetic energy of particles, high heat, and corrosive gases combine to rapidly destroy metallic or common oxide refractory linings.
- Extreme Wear Protection: Cyclones operate by creating a vortex that throws abrasive particles against the wall at high velocity. SiC‘s intrinsic hardness is one of the highest available, resulting in a liner that can survive these conditions for years, dramatically reducing maintenance downtime.
- Thermal Tolerance: Often used in pre-heater systems (e.g., in cement or lime production) where temperatures are high and can change rapidly. SiC‘s excellent thermal properties prevent the cracking (spalling) failure common with less conductive materials.
- Dimensional Precision: SiC is often precision-manufactured into smooth, seamless segments or monolithic shapes. This precision is critical for maintaining the necessary aerodynamic profile of the cyclone for optimal separation efficiency.
- Chemical Inertness: Used in processes involving corrosive components like sulfur compounds, alkalis, and metal oxides (e.g., in fluid catalytic cracking units or waste incineration), where SiC is highly stable.
Typical Industries and Applications
SiC Liners are vital for particle separation in high-temperature processes:
- Cement & Lime Industry: Pre-heater cyclones and calciner towers, where hot, abrasive raw meal and clinker dust are handled.
- Petrochemical Industry: Fluidized Catalytic Cracking (FCC) unit regenerators and reactors, where SiC is used in cyclones to separate catalyst particles.
- Power Generation: Linings in coal gasification, combustion boilers, and flue gas desulfurization systems handling abrasive fly ash.
Furnace Areas and Service Zones
They are specified for all surfaces in direct contact with the high-velocity, abrasive particle stream:
- CYCLONE BODY AND CONE: The entire inner surface of the cyclone, where particles are concentrated.
- VORTEX FINDER: The internal tube that separates the clean gas from the solids, requiring high dimensional accuracy.
- OUTLET DUST VALVES: Areas subject to concentrated, high-speed particle discharge.
Key Data Sheet Properties to Consider
Selection criteria focus on hardness, density, and operating conditions:
- Abrasion Resistance Index: Look for specific data confirming superior wear life (often expressed as a relative wear index).
- Bulk Density (BD) and Apparent Porosity (AP): CRITICAL VALUE. RBSiC typically has a very high BD (e.g., > 3.0 g/cm3) and very low AP (< 1%) to maximize hardness and prevent penetration.
- Bonding Type (RBSiC vs. SSiC): RBSiC is cost-effective and highly wear-resistant but has a T limit of 1400°C (due to free Si); SSiC is for higher T and chemical purity.
- SiC Content: High content (e.g., > 85% by volume) is preferred for maximum hardness.
Technical Guidance: SiC Cyclone Liners are a long-term capital investment justified by avoiding repeated, costly maintenance and unexpected shutdowns. They are often installed as pre-formed segments, which are then cemented into the steel shell using high-temperature refractory castable or mortar.
