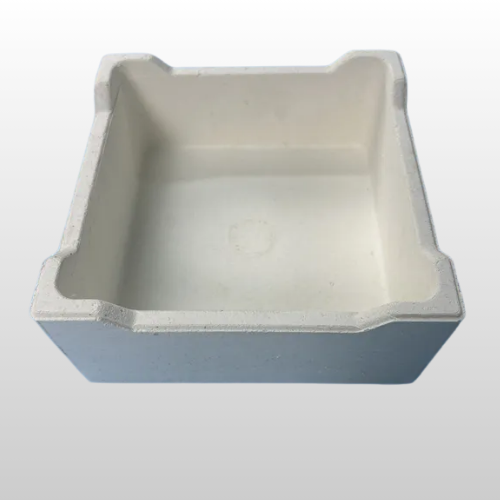

Sagger – Ceramic
A Ceramic Sagger (or simply “sagger”) is a box-like, high-refractory container used in kilns and furnaces to protect sensitive ceramic wares or materials from direct contact with the furnace atmosphere, combustion gases, volatile impurities, and physical damage during high-temperature firing. Saggers are essential for ensuring uniform temperature distribution and maintaining a controlled micro-atmosphere (e.g., inert or reducing) immediately surrounding the products being fired.
Main Chemical Compositions & Categories
Saggers are typically made from economical, medium to high-refractory, oxide ceramics chosen for their thermal shock resistance and stackability.
| MATERIAL BASE | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Fireclay | 35% to 50% | ~1300°C to 1450°C | High thermal shock resistance, economical, and porous. |
| Mullite/Cordierite | 60% to 70% | ~1450°C to 1650°C | Excellent volume stability and minimal thermal expansion, long service life. |
| High Alumina | 90% to 99% | ~1700°C+ | High-purity, maximum refractoriness, and chemical inertness. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Porosity | MODERATE-HIGH | Allows for gas exchange to establish a uniform temperature gradient and prevents pressure buildup. |
| Hot Strength | GOOD | Must be strong enough to withstand the weight of stacked saggers and wares without deformation (creep). |
| Thermal Shock | CRITICAL | Saggers undergo rapid thermal cycling when entering/exiting continuous kilns or during batch kiln cooling. |
| Shape/Format | BOX/PLATE | Designed to be easily stacked (cast with internal or external flanges) to maximize kiln loading density. |
Advantages and Key Characteristics
Ceramic saggers are a critical piece of kiln furniture, offering protection and process control necessary for manufacturing high-quality ceramic and metallurgical products.
- Product Protection: They shield the ware from direct flame impingement, falling refractory debris, or contact with kiln atmosphere components (e.g., water vapor, sulfur, $\text{CO}_{2}$) that can cause discoloration, pitting, or unwanted chemical reactions.
- Atmosphere Control: Saggers, especially those with tight lids, help maintain a localized, uniform micro-atmosphere immediately around the product. For instance, in an electrically heated kiln with an inert gas environment, the sagger ensures the gas is concentrated around the ware.
- Mechanical Stability and Loading: Saggers provide a flat, stable platform for the ware and allow for safe, high-density stacking within the kiln, maximizing the payload and efficiency of the firing cycle.
- Recycling and Containment: They contain volatile oxides or sublimated materials, preventing them from contaminating the kiln lining or other wares.
Typical Industries and Applications
This container is essential across high-temperature ceramics and materials processing:
- Traditional Ceramics: Firing porcelain, tableware, tiles, and high-purity electrical insulators.
- Advanced Ceramics: Sintering electronic ceramics (e.g., PZT, Al2O3 components) and high-purity powders where minimal contamination is critical.
- Metallurgy: Holding small metal parts or powders during sintering and heat treatment under a controlled atmosphere.
- Powder Production: Calcining fine powders or pigments where prevention of agglomeration or reaction with the atmosphere is necessary.
Selection and Maintenance
Selection is based on the required temperature and chemical environment:
- Cordierite/Mullite: Preferred for general use in kilns with high throughput and frequent thermal cycling due to their excellent resistance to thermal shock.
- High Alumina: Used when maximum cleanliness and very high T are required, especially for sintering high-purity technical ceramics.
Technical Guidance: Saggers should be inspected regularly for cracks or deformation (slumping). Once a crack develops, the protective atmosphere is compromised, and the sagger is prone to failure under load. Saggers used for specific chemical processes should never be interchanged to prevent cross-contamination.
