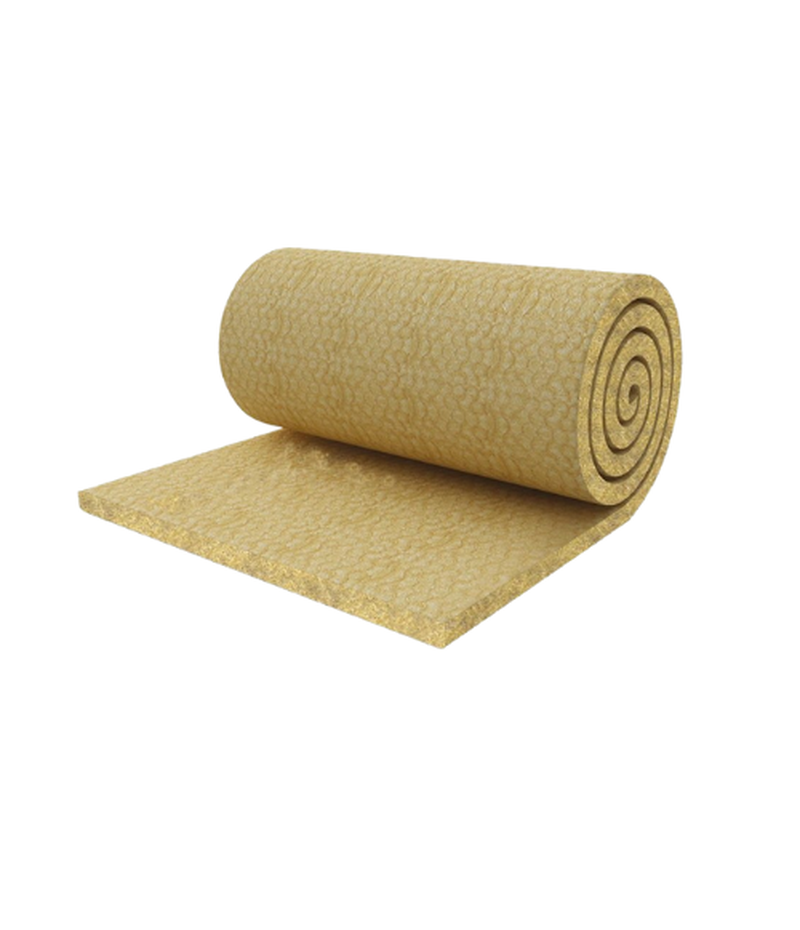

Rock Wool Board / Blanket
Rock Wool (Mineral Wool or Stone Wool) is a high-performance insulation material manufactured by melting natural rock (typically basalt or diabase) and recycled slag from metallurgical processes, then spinning the molten liquid into fine, fibrous strands. The fibers are then bound with a resin and fabricated into flexible blankets/rolls or rigid boards. Rock Wool is prized for its excellent fire resistance (non-combustibility), thermal stability, and superior acoustic absorption in the medium- to high-temperature range, typically up to 760°C (1400 F).
Main Composition
The material is predominantly inorganic Calcium Silicate and Magnesium Silicate derived from basalt and slag.
| CATEGORY | COMPOSITION BASE | TYPICAL MST (Continuous) | PRIMARY ADVANTAGE |
| Rock Wool | Basalt and Slag | ~650°C to 760°C | Non-combustible and excellent acoustic damping. |
Key Forms and Use
| PRODUCT FORM | CONSTRUCTION | PRIMARY APPLICATION |
| Blanket/Roll | Flexible, often wired (stitched with metal mesh) | Insulation of boilers, large vessels, tanks, and ducts; typically used above 250°C where fiberglass fails. |
| Board | Rigid, high-density panel | Industrial oven walls, backup insulation behind refractory linings, structural acoustic barriers. |
Advantages and Key Characteristics
Rock Wool is the leading choice for industrial and marine insulation applications that demand fire safety and resistance to continuous high heat, up to 760°C, exceeding the limit of standard fiberglass.
- High Fire Resistance: The inorganic fibers have a high melting point (often over 1000°C). While the binding resin may burn off at lower temperatures (around 250°C), the fibers themselves remain intact, providing a fire barrier and maintaining insulation integrity.
- Acoustic Absorption: The dense, non-directional fiber structure makes it an outstanding acoustic damper, reducing noise transmission in industrial environments (e.g., machinery enclosures, power plants).
- Thermal Performance: Provides a low thermal conductivity (k) across a wide temperature range, resulting in efficient heat retention and reduced energy consumption.
- Water Repellency: Most modern Rock Wool products are treated to be water-repellent, helping to shed moisture and reducing the risk of Corrosion Under Insulation (CUI).
Typical Industries and Applications
Rock Wool is critical in environments with fire risk and high operating temperatures:
- Industrial Processing: Blankets are used for large-scale high-temperature industrial piping, vessels, boilers, and heat exchangers.
- Marine and Offshore: Highly favored due to its non-combustible properties and excellent acoustic performance in ship bulkheads and offshore platforms.
- HVAC and Commercial Buildings: Used for thermal and acoustic insulation of air ducts, utility rooms, and fire-rated wall assemblies.
- Furnace Backup: Boards are used as a thermal backup layer behind dense refractory brick or castables in medium-temperature ovens and furnaces.
Key Data Sheet Properties to Consider
Selection must be tailored to the specific mechanical and thermal demands:
- Maximum Service Temperature (MST): CRITICAL VALUE. Ensure it exceeds the maximum cold-face temperature where the product is installed.
- Density: Higher density boards (e.g., 100 kg/m3) provide better compression strength, greater acoustic performance, and reduced air flow, but higher thermal mass.
- Facing (for Blankets): Look for Galvanized or Stainless Steel Mesh facing for mechanical strength and ease of installation on large, curved surfaces.
Technical Guidance: When used in applications above the binder’s burnout temperature (around 250°C), temporary smoke or odor may be produced during initial heat-up. Rock Wool should always be installed with a continuous outer metal jacketing or a vapor barrier (in cold applications) to protect it from mechanical damage and moisture.
