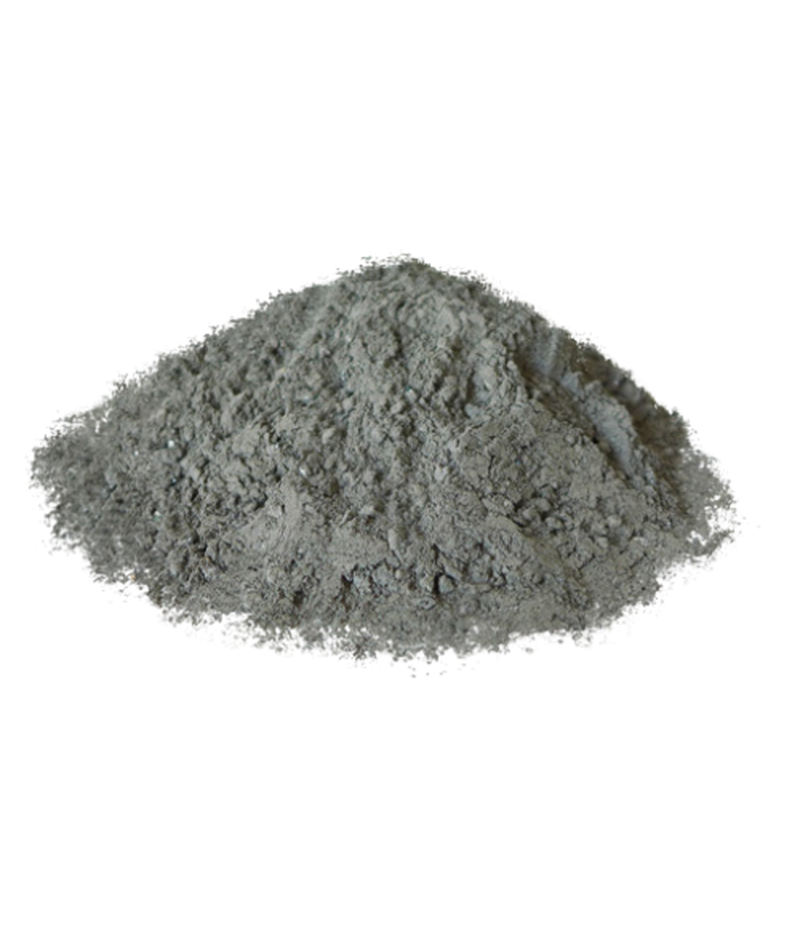

Ramming Mass – ZrO₂
Main Chemical Compositions & Categories
ZrO2 Ramming Mass is composed of high-purity Zirconia (ZrO2) aggregate (often fused or sintered), sometimes partially stabilized with MgO or CaO. It is the highest-purity oxide refractory available. The mix includes minimal or no non-oxide binders, relying on vibration and ramming to achieve extreme density and high-temperature sintering for its final strength.
| COMPONENT | CONTENT | CHEMICAL BASE | PRIMARY ADVANTAGE |
| Aggregate | ZrO2 (90% to 99%) | Fused/Sintered Zirconia | Highest refractoriness, chemical inertness |
| Binder | None or Minimal Inorganic | Silicate/Phosphate traces | Achieves density via installation, final strength via sintering |
| VARIANT | STABILIZATION | APPLICATION FOCUS |
| Stabilized Zirconia | MgO or CaO | Used to prevent the destructive phase change at 1000°C |
| Pure Zirconia | Unstabilized | Used only where contamination is unacceptable, despite phase change |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Refractoriness Under Load (RUL) | MAXIMUM | ZrO2 has the highest melting point of all common oxides (2700°C), ensuring structural integrity at extreme T. |
| Corrosion Resistance | EXCEPTIONAL | Highly resistant to molten glass, specialty slags, and specific metals. |
| Installation Density | EXTREME | Ramming achieves maximum packing density, vital for minimizing porosity and chemical penetration. |
| Erosion/Abrasion | SUPERIOR | The hardness and high density of Zirconia grains resist mechanical wear. |
Advantages and Key Characteristics
ZrO2 Ramming Mass is a premium, high-cost material used only in the most severe, high-value, or ultra-high-temperature zones where no other refractory material can survive.
- Ultra-High Service Temperature: Used in processes operating above the limits of even high-purity Alumina and Magnesia, where its melting point ensures reliable performance.
- Maximum Purity and Inertness: The high purity of the Zirconia is essential in specialty melting (e.g., precious metals or high-grade specialty glasses) where even trace contamination from other refractories is unacceptable.
- Resistance to Specific Molten Materials: Zirconia exhibits superior non-wetting and chemical resistance to molten glass, titanium, and various super-alloys.
- Excellent Erosion Resistance: The high bulk density and hardness achieved during ramming create an extremely dense, low-porosity lining that resists both mechanical erosion and chemical infiltration.
Typical Industries and Applications
This product is highly specialized:
- Glass Industry: Bottom and sidewall construction/repair in electric glass melters for high-quality optical or specialty glass.
- Metallurgical Industry: Linings and crucibles for melting and holding specialty alloys (e.g., reactive metals, super-alloys) where absolute purity is required.
- High-Temperature Furnaces: Hot zones in vacuum furnaces, crystal growing furnaces, and specialized ceramic kilns.
Furnace Areas and Service Zones
They are specified for structural, chemical-wear, and maximum heat zones:
- CRITICAL CRUCIBLE LININGS: The working face in contact with high-value or reactive melts.
- HOT SPOTS/FAILURE POINTS: Used to repair areas in high-temperature furnaces that consistently fail using other materials.
Key Data Sheet Properties to Consider
Selection criteria focus intensely on refractoriness, chemical purity, and stabilization:
- ZrO2 Purity: CRITICAL VALUE. Must be 95%, and often 98% for specialty applications.
- Stabilization State: Determine if the material is fully or partially stabilized with MgO or CaO. Stabilization is necessary to avoid the destructive volume change associated with the monoclinic-to-tetragonal phase transformation of ZrO2 occurring near 1000°C.
- Installation Density: The required Rammed Bulk Density (BD) (e.g., > 4.5 g/cm3) must be confirmed and achieved during installation.
- Slag/Glass Corrosion Rate: Look for specific data demonstrating low corrosion rates against the target melt.
Technical Guidance: Due to the material cost and sensitivity, installation must be absolutely precise, achieving maximum density via ramming. If an unstabilized ZrO2 ramming mass is used, a very slow and carefully controlled temperature ramp through the 1000°C phase transformation point is essential to prevent internal cracking.
