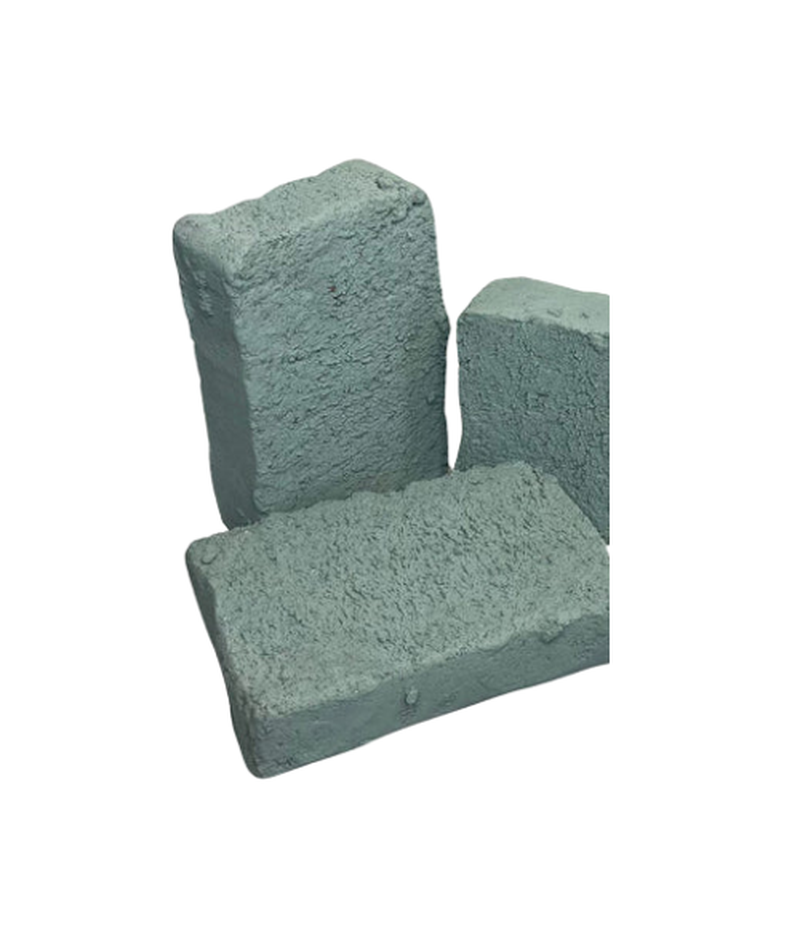

Plastic Refractory (Alumina-Based)
Main Chemical Compositions & Categories
Alumina-Based Plastic Refractories consist of high-purity ALUMINA (Al2O3) aggregates (e.g., Tabular Al2O3 or Calcined Bauxite), a bonding system of plastic fireclay, and a small amount of chemical binder (e.g., phosphates, chromium compounds) to enhance green strength and hot performance.
| COMPONENT | CONTENT | CHEMICAL BASE | PRIMARY ADVANTAGE |
| Aggregate | Al2O3 (70% to 90%) | Bauxite / Tabular Alumina | High refractoriness and wear resistance |
| Plasticizer | Fireclay / Water | Clay/Moisture | CRITICAL: Allows for plastic deformability and ramming installation |
| Chemical Bond | Phosphate/Chromium | Chemical set | High green strength and superior hot performance |
| VARIANT | Al2O3 Content | TYPICAL MST |
| High Alumina | 70% to 80% | ~1700°C |
| Super Duty | 85% to 90% | ~1800°C |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Installation | RAMMING | Installed by pneumatic or manual ramming, ensuring high density and uniform packing. |
| Thermal Shock Resistance | VERY GOOD | Fired bond often features controlled porosity and low modulus of elasticity, absorbing thermal stress well. |
| Hot Strength | EXCELLENT | High-alumina aggregate and ceramic/chemical bonding ensure stability under load at high T. |
| Storage/Shelf Life | LONG | Since it is non-hydraulic, it can be stored for extended periods in its moisture-sealed form. |
Advantages and Key Characteristics
Alumina-Based Plastic Refractories are highly valued for their ability to form dense, joint-free, high-performance linings in areas requiring complex geometry, on-site customization, or superior resistance to thermal fatigue.
- Monolithic, Seamless Lining: Rammed installation eliminates all joints, the weakest point in brick construction, which enhances resistance to thermal stress and chemical penetration.
- On-Site Formability: The plastic nature allows the installer to easily mold and pound the refractory to perfectly fit complex configurations such as burner ports, tap holes, and special structural areas directly on the job site.
- Superior Resistance to Spalling: The unique microstructure and high energy ramming process create a tough lining highly resistant to damage from rapid heating/cooling cycles (thermal shock spalling).
- Excellent Erosion and Slag Resistance: The high purity of the Al2O3 aggregate and the final high density achieved by ramming provide a hard, low-porosity surface resistant to mechanical wear and attack by acidic/neutral slags.
Typical Industries and Applications
This product is used extensively for both new lining construction and critical repairs:
- Ferrous Industry (Steel): Ladle lips, impact pads, forge furnace hearths, and burner ports in reheating furnaces.
- Non-Ferrous Industry: Ramps, sills, and siphons in aluminum melting furnaces.
- General Industrial: Creating custom shapes, repairing damaged brickwork, and lining furnace doors and roofs.
Key Data Sheet Properties to Consider
Selection criteria focus on chemical content, density, and bond:
- Al2O3 Content: CRITICAL VALUE. Must be specified (e.g., 70% or 85 %) to match the service temperature and chemical environment.
- Rammed Bulk Density (BD): A high BD (e.g., > 2.5 g/cm3) is essential; this value confirms that proper ramming will yield a low-porosity, high-strength lining.
- Bonding System: Confirm the nature of the chemical bond (Phosphate or Chrome) as this affects green strength, handling, and environmental compatibility.
- Volume Stability: Look for low Permanent Linear Change (PLC) after firing to ensure the lining maintains its dimensions in service.
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
