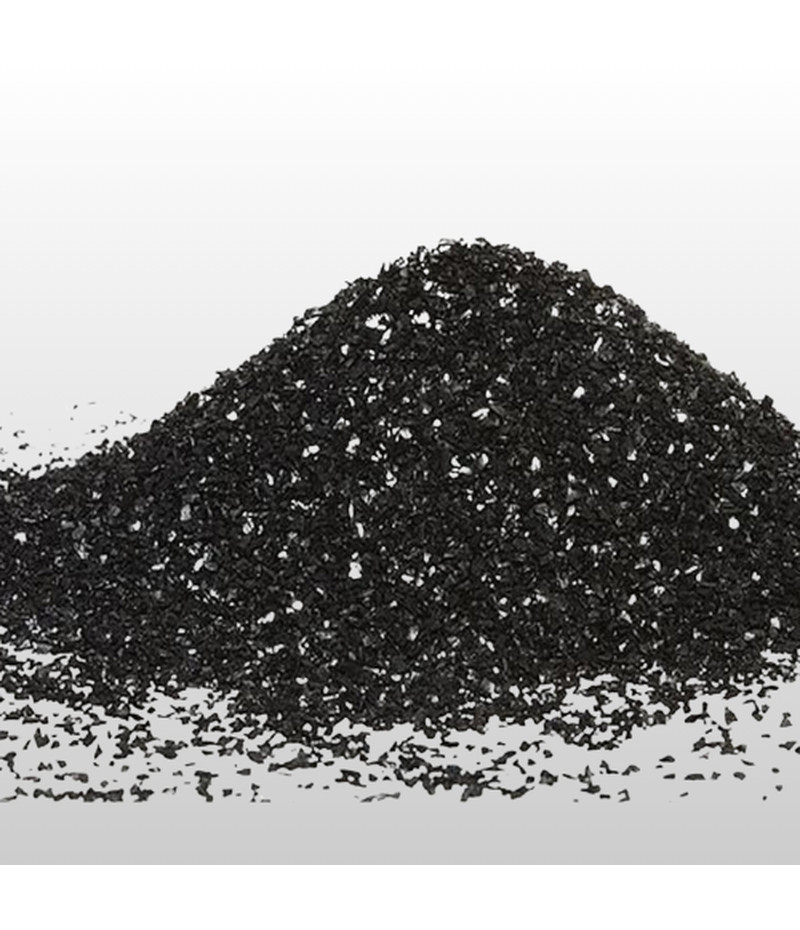

PCI / Injected Coal – Pulverized
Pulverized Coal Injection (PCI) Coal refers to finely ground (pulverized) metallurgical coal that is pneumatically injected directly into the tuyeres (air inlets) of a Blast Furnace. This technique allows for the partial replacement of expensive metallurgical coke, significantly lowering the overall hot metal production cost while maintaining the furnace’s thermal and chemical balance.
The coal must be pulverized to a specific fineness (typically 70% passing a 200 mesh sieve) to ensure rapid, near-complete combustion inside the furnace and proper transport through the injection system.
Main Function and Characteristics
PCI coal provides an essential source of carbon for the reducing reactions and acts as a supplementary fuel to reduce coke consumption.
CHARACTERISTIC — VALUE RANGE — PRIMARY METALLURGICAL FUNCTION
Fixed Carbon — >50% — Source of carbon for the reducing gas (CO).
Volatile Matter — <35% (Low to Medium VM) — Influences coal combustion rate and flame length inside the tuyere zone.
Ash Content — LOW — Minimizes the generation of additional slag, which consumes heat.
CLASSIFICATION — ECONOMIC FOCUS — PRIMARY APPLICATION FOCUS
Supplementary Fuel/Reductant — Cost-effective replacement for metallurgical coke — Blast Furnace Ironmaking (Tuyere injection).
Key Performance Metrics
PROPERTY — TYPICAL PERFORMANCE — MECHANISM OF ADVANTAGE
Combustion Efficiency — HIGH — Fast, complete burning in the raceway is essential for minimizing unburnt char.
Moisture Content — LOW (<1.0%) — High moisture hinders pneumatic transport and consumes excessive heat inside the furnace.
Purity — LOW S and P — Minimizes contamination of the hot metal and slag load.
1. The PCI Mechanism
The main function of metallurgical coke in the blast furnace is twofold: to provide a permeable structure to support the burden (ore and fluxes) and to provide carbon for the heat and reduction reactions. PCI coal can replace the second function:
Combustion: Pulverized coal is injected with hot air (~1000°C) into the raceway zone. The volatile matter in the coal is released and burns quickly, providing immediate heat.
Reduction: The remaining fixed carbon forms a reducing gas, carbon monoxide (CO):
C + O2 → CO2
CO2 + C → 2CO (Crucial gas for reducing Iron Oxide)
Coke Replacement Ratio: The amount of coke replaced by PCI coal (the coke replacement ratio, CRR) is typically around 0.8 to 1.0 kg of coke saved per kg of coal injected.
2. Importance of Volatile Matter (VM)
Low VM Coal (~10–20%): Requires higher blast temperature and oxygen enrichment to ensure complete combustion. Preferred when maximizing the volume of coal injected.
Medium VM Coal (~20–35%): Easier to ignite and combust rapidly, reducing the risk of unburnt char. Often used when the PCI rate is lower.
3. Technical Guidance
Infrastructure: PCI requires significant capital investment for the drying, crushing, pulverizing, storage, and injection systems.
Unburnt Char: Incomplete combustion leaves unburnt carbon (char) that can pass into the hearth, affecting metal quality and furnace operations. Monitoring the fineness and volatile matter content is essential to maximize combustion efficiency.
