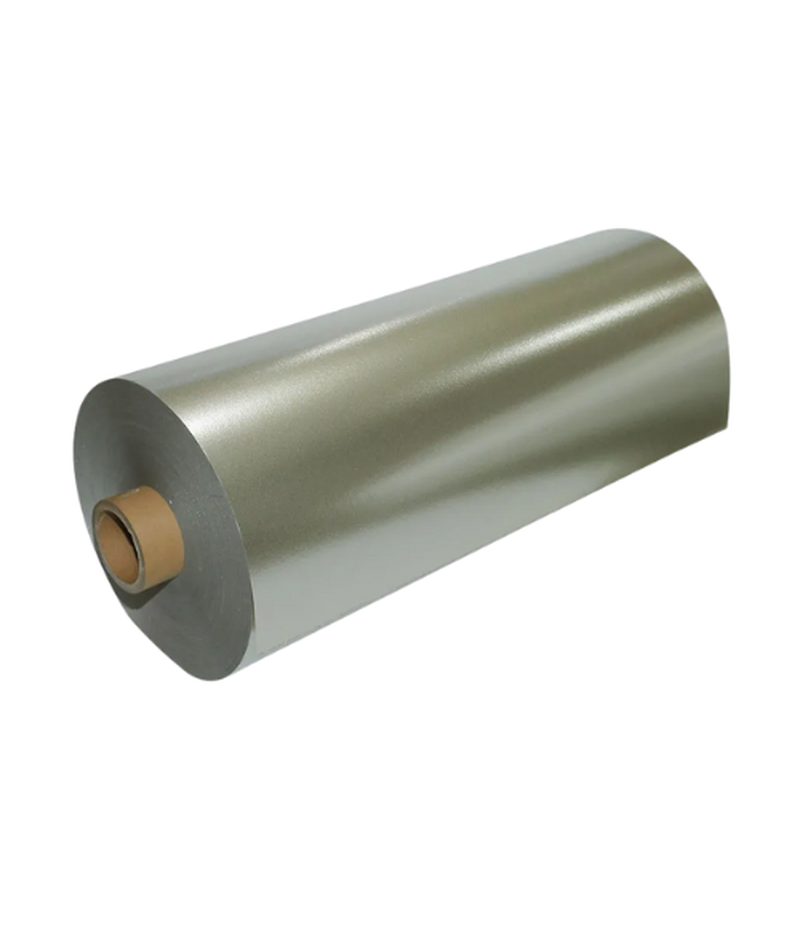

Mica Roll (Phlogopite / Muscovite)
A Mica Roll is a flexible sheet material composed of thin, overlapping flakes of natural mica (either Phlogopite or Muscovite) bonded together with a high-temperature resistant silicone resin. The resulting product is a continuous, flexible roll used as an exceptional electrical and thermal insulator in high-temperature applications. Mica’s fundamental advantage is its superior dielectric strength, non-combustibility, and thermal stability, which far exceed those of organic or fiberglass materials.
Phlogopite vs. Muscovite
The choice of mica mineral dictates the final product’s temperature rating.
| MICA TYPE | CHEMICAL FORMULA (Simplified) | MAXIMUM SERVICE T | PRIMARY ADVANTAGE |
| Muscovite | KAl2(AlSi3O10)(OH)2 | ~500°C to 600°C | Highest dielectric strength and mechanical rigidity. |
| Phlogopite | KMg3(AlSi3O10)(OH)2 | ~750°C to 1000°C | Highest continuous thermal resistance (Phlogopite is the high-temp choice). |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Dielectric Strength | EXTREMELY HIGH | Natural mineral structure provides outstanding electrical breakdown resistance. |
| Continuous T | HIGH | Phlogopite can withstand continuous heat up to 1000°C. |
| Flexibility | GOOD | Silicone resin binder allows the otherwise rigid mica flakes to be formed and rolled. |
| Flame Resistance | NON-COMBUSTIBLE | Mica is an inorganic mineral that will not burn or produce smoke. |
Advantages and Key Characteristics
Mica rolls are a premium material chosen when both high-temperature survival and critical electrical insulation are required simultaneously.
- Dual Functionality (Thermal & Electrical): Mica uniquely provides excellent thermal insulation, resisting high continuous temperatures, while maintaining extremely high electrical insulation (dielectric strength). This is crucial for separating high-voltage heating elements from the metal casing or surrounding structure.
- Ease of Fabrication: The material is supplied in flexible rolls or sheets that can be easily cut, stamped, or wrapped to fit complex geometries, offering a cost-effective alternative to rigid mica board.
- Low Thermal Mass: Despite its density, the thin sheet format has low thermal mass, minimizing heat absorption and contributing to efficient thermal cycling.
- Chemical Resistance: Mica is chemically inert and highly resistant to moisture, solvents, and most aggressive atmospheres (excluding strong acids/bases).
Typical Industries and Applications
Mica rolls are a staple in the manufacturing of electrical heating devices and metallurgy:
- Induction and Arc Furnaces: Used as channel insulation in induction coils, providing the necessary electrical barrier between the copper coil and the refractory lining, preventing short circuits and electrical failures.
- Industrial Heating Elements: Used to wrap and insulate resistance wires and elements in ovens, dryers, and appliances, ensuring the electrical system is safely isolated.
- Cables and Wires: Used as a fire-resistant wrapping (Phlogopite grade) for high-performance cables to ensure circuit integrity during a fire event.
- Electrical Equipment: General insulation for transformers, capacitors, and motors operating in high ambient temperature environments.
Key Data Sheet Properties to Consider
Selection is highly dependent on the electrical and thermal constraints:
- Mica Type (Phlogopite vs. Muscovite): CRITICAL VALUE. Phlogopite must be specified if the continuous operating temperature exceeds 600°C.
- Binder Content: High binder content can improve handling flexibility but may lead to slight smoke/odor emission on initial heat-up.
- Thickness and Breakdown Voltage: Required thickness must be calculated based on the operating voltage to ensure sufficient dielectric strength.
Technical Guidance: For applications near the MST of the binder (300°C), there may be a temporary release of organic components. While the mica itself is non-combustible, care should be taken to ensure the material remains securely wrapped to prevent flexing and delamination of the mica flakes.
