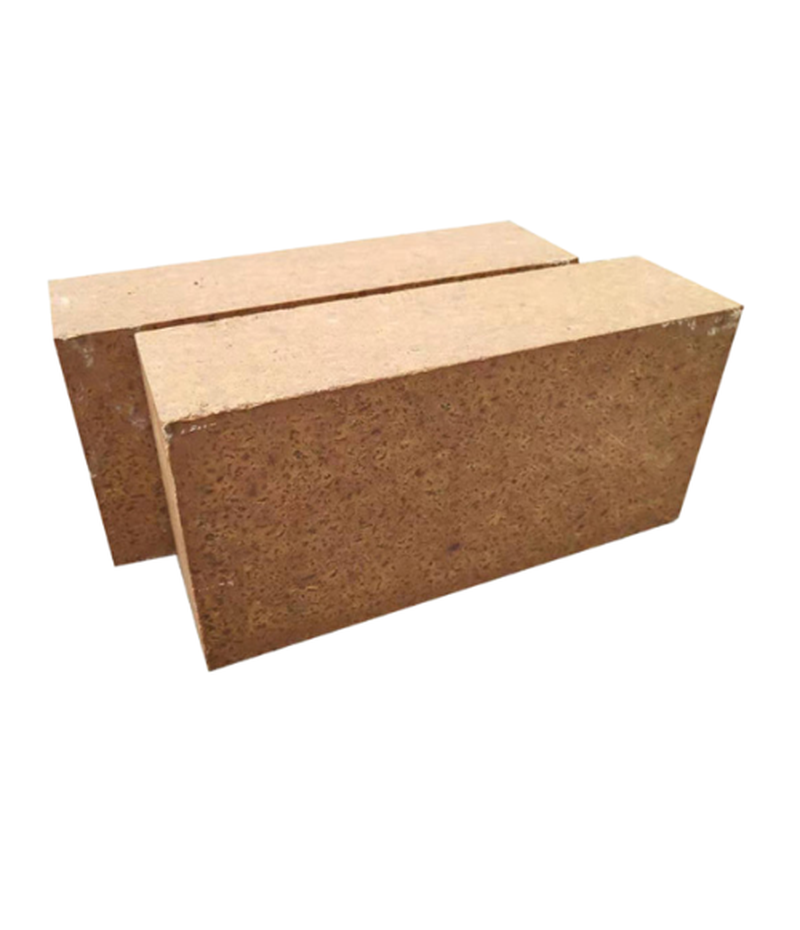

Magnesia Brick (Fused)
Main Chemical Compositions & Categories
Fused Magnesia Bricks are composed of high-purity, crystalline MAGNESIUM OXIDE (MgO), typically 98% to 99% purity. The material is produced via the Fusion Casting process, which involves melting MgO raw material at 2800°C and then solidifying it to form a dense, zero-porosity product.
| CATEGORY | MgO CONTENT | BONDING/MATRIX | PRIMARY ADVANTAGE |
| FUSED MgO | $98% to 99% | Fusion-Cast (Zero Porosity) | Maximum resistance to chemical corrosion/penetration |
| DEAD BURNED MgO | 980% to 95% | Ceramic (Sintered) | Cost-effective general basic refractory |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Apparent Porosity (AP) | NEGLIGIBLE (< 1%) | Fusion eliminates all open porosity, preventing slag/metal infiltration. |
| Crystal Size | EXTREMELY LARGE | Large periclase crystals provide maximum resistance to chemical attack and high T creep. |
| Creep in Compression (CISC) | EXTREMELY LOW | Maximum density and purity ensure minimal deformation under constant load at the highest temperatures. |
| Slag Resistance | ULTIMATE (to BASIC Slags) | Zero porosity and high purity maximize stability against CaO– and MgO-saturated melts. |
Advantages and Key Characteristics
Fused Magnesia bricks represent the highest tier of basic refractory performance, justified only in areas of extreme chemical attack, high heat flux, and critical load.
- Maximum Infiltration Resistance: The fusion-casting process results in a theoretical zero-porosity structure. This completely seals the brick against penetration by molten steel, slag, and corrosive gases, which is the primary failure mechanism for sintered refractories.
- Superior Hot Strength and Creep: The large, interlocking periclase crystals formed during slow cooling from the melt provide unrivaled load-bearing capacity and resistance to long-term deformation at near-melting temperatures (TUL).
- Chemical Purity: The high-purity MgO ensures minimal contamination of the molten charge and prevents the formation of low-melting silicate phases, which are detrimental to hot strength.
Typical Industries and Applications
This brick is used in critical, high-stress, and continuous operation zones in metallurgy:
- Ferrous Industry (Steel): Hot spots and critical containment areas in Electric Arc Furnaces (EAFs), Ladle Refining Furnaces (LRFs), and Vacuum Degassers (VD) where maximum campaign life is demanded.
- Non-Ferrous Industry: Refining vessels and specialized kilns handling highly aggressive basic slags.
- Continuous Casting: Specialized wear-resistant components.
Furnace Areas and Service Zones
They are specified for high-wear zones that demand integrity over long periods:
- EAF SLAG LINE/HOT SPOTS: Used to maximize refractory life in areas subject to the highest thermal and chemical load.
- VD/LRF BOTTOM AND WALLS: Used to ensure clean, contamination-free refining and long life under vacuum conditions.
- PERMANENT SAFETY LININGS: Used as a protective layer beneath the working lining in critical vessels.
Key Data Sheet Properties to Consider
Selection is focused on density and purity as direct results of the fusion process:
- MgO Purity: 98% or higher is required to qualify as a premium fused product.
- Bulk Density (BD): CRITICAL VALUE. Must be exceptionally high (e.g., 3.4 g/cm3 or greater) to confirm the zero-porosity structure.
- Apparent Porosity (AP): Must be reported as < 1.0% (ideally $< 0.5%) to confirm maximum infiltration resistance.
- Crystal Size: Look for large crystal sizes (e.g., > 100 microns), which directly translate to superior corrosion resistance.
Technical Guidance: Fused Magnesia is the most expensive basic refractory and is justified only for the most severe applications where the cost of failure outweighs the material cost. Due to its extreme density and rigidity, Fused MgO has POOR THERMAL SHOCK RESISTANCE. It requires a very slow and controlled heat-up/cool-down schedule, and it is generally unsuitable for highly cyclic furnaces unless protected by a lining with better thermal shock properties (e.g., MgO-C).
