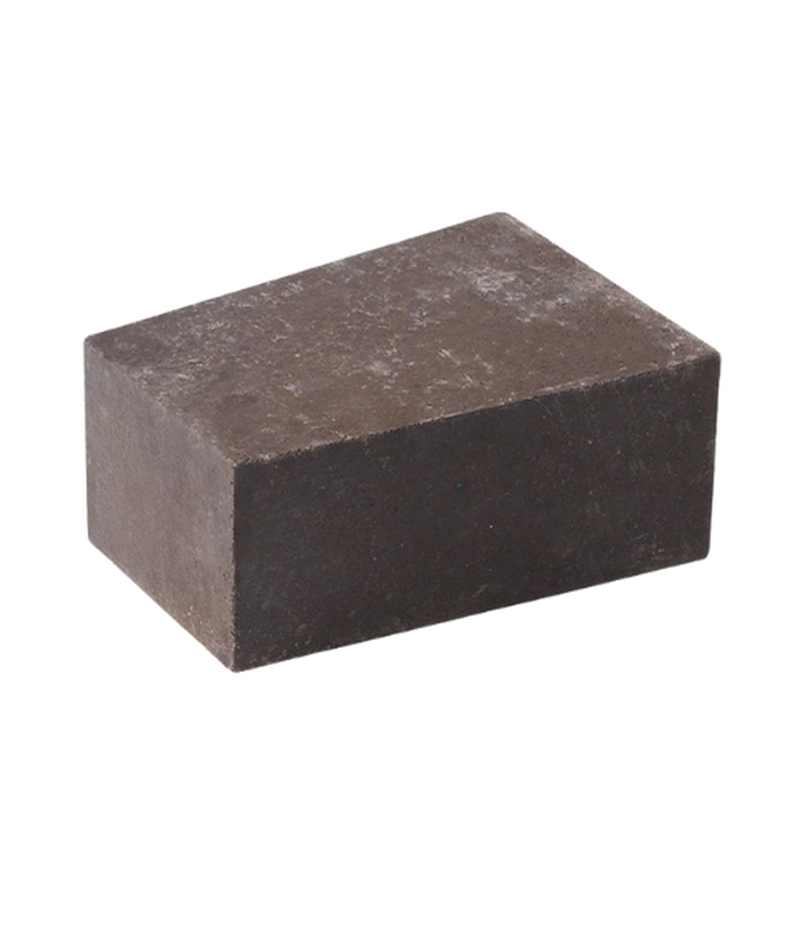

Magnesia‑Dolomite Brick
Main Chemical Compositions & Categories
Magnesia-Dolomite bricks are composed primarily of MAGNESIUM OXIDE (MgO) and CALCIUM OXIDE (CaO), typically blended from synthetic or natural DBM (MgO) and doloma (CaO – MgO).
| COMPONENT | CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| MAGNESIA (MgO) | 50% to 80% | High Refractoriness / Hot Strength | Provides structural stability at peak T |
| DOLOMA (CaO + MgO) | 20% to 50% | High CaO Content | CRITICAL: High chemical affinity for basic slag |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Slag Resistance | EXCELLENT (to BASIC Slags) | The CaO component quickly saturates the basic slag, creating a stable, high-viscosity interface that slows dissolution. |
| Volume Stability | VERY GOOD | The dense MgO matrix is stabilized by the CaO phase, resisting volume change under load. |
| Hot Strength (TUL) | VERY HIGH | Maintained by the high refractoriness of the MgO and CaO components. |
| Purity | GOOD | Low silica and alumina content minimizes the formation of low-melting-point liquid phases. |
Advantages and Key Characteristics
Magnesia-Dolomite bricks are highly effective basic refractories, particularly valued for their cost-effectiveness and chemical performance in environments saturated with basic slag.
- Superior Slag Satiation: The high content of CaO is highly beneficial when dealing with CaO-saturated slags (common in basic steelmaking). The CaO component in the brick quickly saturates the molten slag, minimizing the chemical potential difference and drastically reducing the rate of refractory dissolution.
- Cost-Effectiveness: Dolomite raw materials are often more abundant and cost-effective than high-purity synthetic magnesia, offering an economic advantage for large-volume applications.
- Non-Wetting to Slag: The presence of the basic oxides minimizes the wettability of the brick surface, inhibiting slag penetration into the brick’s internal structure.
- Structural Stability: The high firing temperature creates a dense product with minimal residual shrinkage, providing good structural integrity at high temperatures.
Typical Industries and Applications
This brick is predominantly used in the ferrous industry and cement production:
- Ferrous Industry (Steel): Working linings and safety linings of Ladle Refining Furnaces (LRFs), Basic Oxygen Furnaces (BOFs), and Electric Arc Furnaces (EAFs), especially where CaO-rich, high-basicity slags are used.
- Cement & Lime: Burning zones of rotary kilns.
Furnace Areas and Service Zones
They are specified for critical containment zones in contact with basic melts:
- STEEL LADLE SLAG LINE: The primary application, maximizing life where CaO-rich slags attack the lining.
- EAF/BOF WALLS AND BOTTOMS: Used as a cost-effective alternative to pure magnesia in specific zones.
- KILN BURNING ZONE: Used where the charge is CaO-rich.
Key Data Sheet Properties to Consider
Selection is based on the CaO content and stability:
- CaO and MgO Content: CRITICAL VALUE. The specific ratio (e.g., 70%, MgO – 30%, CaO) dictates the chemical resistance profile.
- Hydration Resistance: The CaO component is susceptible to hydration (reaction with water/humidity) during storage, which can lead to brick deterioration. Look for data or guarantees on a dense, stabilized product or require special packaging (e.g., plastic wrapping) and installation procedures.
- Bulk Density (BD) and Apparent Porosity (AP): High BD and low AP are essential for resisting slag infiltration and maximizing hot strength.
- SiO2 Content: Must be extremely low, as silica forms low-melting liquid phases with CaO and MgO, which is detrimental to TUL.
Technical Guidance: Magnesia-Dolomite bricks are a powerful solution for basic slag environments. However, due to the high CaO content, they MUST be stored and handled in a dry environment to prevent hydration. The brick should be installed as quickly as possible after receipt and brought up to service temperature to prevent moisture damage.
