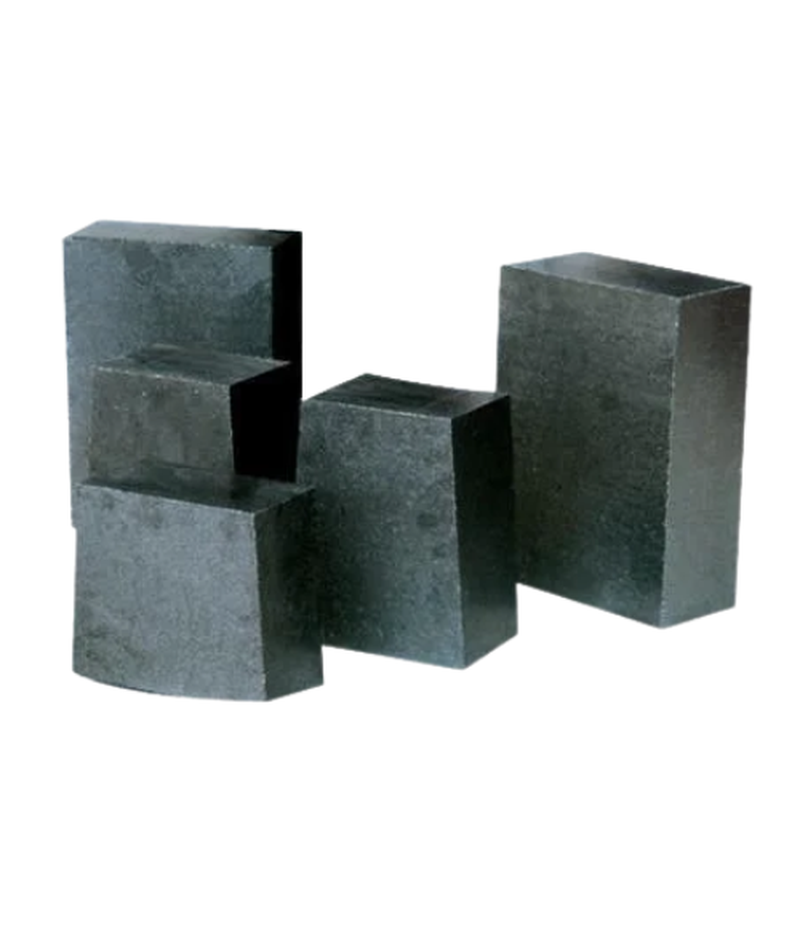

Magnesia‑Carbon Brick (Standard C)
Main Chemical Compositions & Categories
Standard Carbon MgO-C bricks are composed of high-purity MAGNESIA (MgO) grains, a mid-range amount of CARBON (C) (usually fine graphite, 10% to 20%), and a synthetic Resin or Pitch binder, often with metallic or ceramic anti-oxidation additives.
| CATEGORY | CARBON (C) CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| STANDARD MgO-C | 10% to 20% | Optimum balance of properties | Maximum slag resistance and thermal shock |
| LOW CARBON MgO-C | 5% to 10% | Higher hot strength | Better resistance to air/fumes (oxidation) |
| HIGH CARBON MgO-C | 20% to 30% | Maximum non-wetting effect | Extreme slag line protection (less common) |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Slag Resistance | EXCELLENT | CARBON provides a non-wetting barrier, preventing basic slag infiltration into the porous MgO structure. |
| Thermal Shock | VERY GOOD | Carbon’s low thermal expansion coefficient effectively dampens the high thermal expansion of the MgO phase. |
| Erosion Resistance | VERY GOOD | The dense MgO-C matrix resists chemical dissolution and physical scouring by the molten bath. |
| Hot Strength (TUL) | HIGH | Maintained by the MgO grains, but slightly lower than low-carbon grades due to the carbon char network. |
Advantages and Key Characteristics
Standard Carbon MgO-C bricks are the industry workhorse for primary steelmaking vessels, offering the best compromise between cost, slag resistance, and resistance to thermal cycling.
- Optimized Slag Line Protection: The mid-range carbon content is ideal for achieving maximum non-wetting performance, which drastically slows down the rate of chemical dissolution and mechanical wear caused by highly basic steel slags.
- Thermal Shock Tolerance: The carbon phase introduces porosity and flexibility into the rigid MgO matrix, allowing the brick to withstand the rapid, extreme temperature fluctuations common during steel production (e.g., charging, tapping, and lancing).
- Cost-Performance Balance: This grade provides sufficient chemical resistance for typical steelmaking campaigns without the added cost of high-purity, low-carbon, or highly specialized MgO raw materials.
- Controlled Oxidation: While susceptible to oxidation, this grade contains anti-oxidation additives (such as Al, Si, or B compounds) that react preferentially, forming protective ceramic films (SiC, Al2O3, B2O3) to shield the carbon from air and Fe2O3 oxidation.
Typical Industries and Applications
This brick is the standard choice for the critical working linings in metallurgy:
- Ferrous Industry (Steel): Working linings of Basic Oxygen Furnaces (BOFs), Electric Arc Furnace (EAF) hot spots and bottom, and steel Ladle walls and slag lines.
- Non-Ferrous Industry: Refining and holding vessels subject to basic slag.
Furnace Areas and Service Zones
They are used in zones that experience the most severe combined chemical and thermal stresses:
- EAF/BOF/LRF SLAG LINE: The primary area of use, where resistance to infiltration and dissolution is paramount.
- LADLE WALLS: Used to contain the molten steel and slag, requiring good thermal shock resistance during tapping and cooling.
- FURNACE BOTTOMS: Used in areas subject to mechanical impact and chemical stirring.
Key Data Sheet Properties to Consider
Selection is based on achieving the necessary balance:
- Carbon Content: 10% to 20% must be confirmed for this designation.
- MgO Purity: High purity MgO (> 95%) is still desirable for maximum refractoriness.
- Bulk Density (BD) and Apparent Porosity (AP): BD should be high and AP should be moderate (typically 4% to 10%) to balance non-wetting with mechanical strength.
- Anti-Oxidation Additive Type/Content: The type and amount of metallic additives are crucial for performance longevity.
Technical Guidance: Standard Carbon MgO-C bricks are the best general-purpose solution for basic slag environments. They must be protected from prolonged exposure to air at high temperatures (e.g., by minimizing holding times or using a protective coating) to prevent the carbon from oxidizing and destroying the bond.
