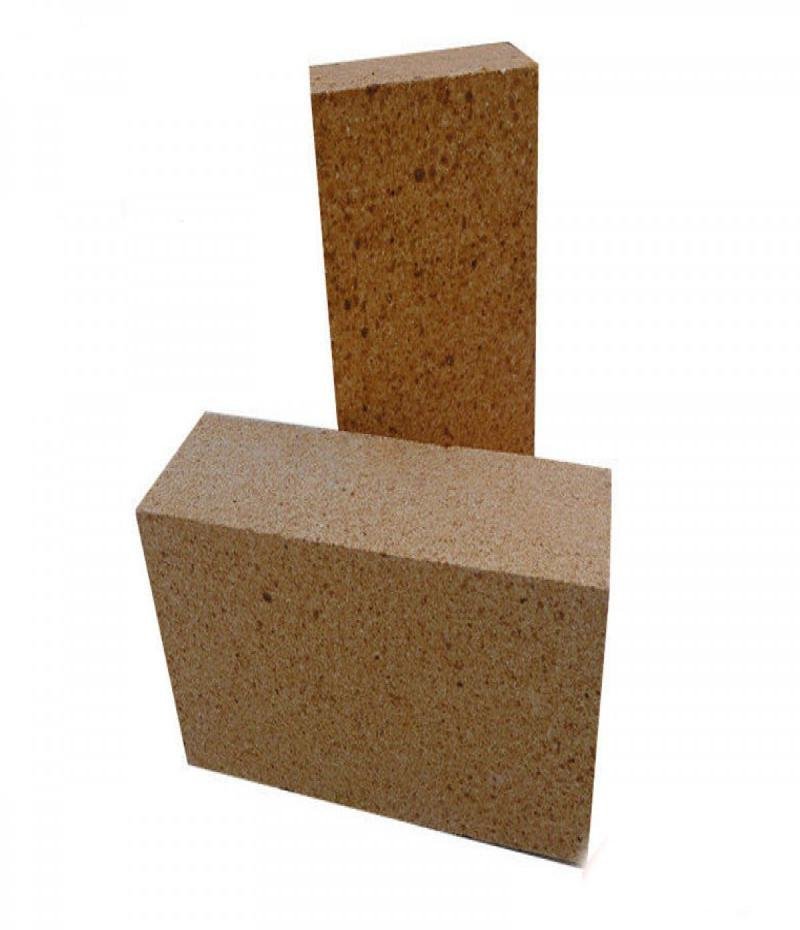

Lightweight Fireclay Brick
- MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
- Lightweight Fireclay Bricks (IFBs) are highly porous products composed primarily of ALUMINA (AL2O3) and SILICA (SIO2). High porosity is achieved by incorporating burn-out materials during manufacture.
- ALUMINA CONTENT: 30% to 50%.
- KEY FUNCTION: Excellent thermal insulation and energy efficiency.
- PRIMARY ADVANTAGE: Very low thermal conductivity and low heat storage.
- KEY PROPERTIES AND PERFORMANCE
- PROPERTY: THERMAL CONDUCTIVITY (K-VALUE)
- TYPICAL PERFORMANCE: EXTREMELY LOW. This is the defining feature.
- VARIATION: DECREASES (improves insulation) as BULK DENSITY (BD) DECREASES and porosity INCREASES.
- PROPERTY: HEAT STORAGE
- TYPICAL PERFORMANCE: VERY LOW.
- VARIATION: DECREASES with BD, enabling faster heating/cooling cycles.
- PROPERTY: COLD CRUSHING STRENGTH (CCS)
- TYPICAL PERFORMANCE: POOR. This material is weak and easily damaged.
- VARIATION: INCREASES slightly with BD, but structural strength is always secondary to insulation.
- PROPERTY: MAXIMUM SERVICE TEMPERATURE
- TYPICAL PERFORMANCE: MODERATE to HIGH (Classification Grades K-23 to K-30).
- VARIATION: INCREASES with ALUMINA content and higher classification temperature.
- PROPERTY: THERMAL CONDUCTIVITY (K-VALUE)
- ADVANTAGES AND KEY CHARACTERISTICS
- ENERGY SAVINGS: The low thermal conductivity minimizes heat loss through the furnace walls, leading to significant fuel savings.
- FAST CYCLING: The low heat storage capacity means less thermal energy is wasted heating the refractory itself, allowing furnaces to heat up and cool down much faster (critical for intermittent operations).
- LIGHTWEIGHT: The low bulk density reduces the structural load on the furnace casing and foundation.
- EASE OF USE: They are easily cut and shaped on-site for custom fits.
- TYPICAL INDUSTRIES AND APPLICATIONS
- HEAT TREATING AND FORGING: Used in batch furnaces that require rapid thermal cycling.
- CERAMICS AND POTTERY: Kiln linings and car tops.
- GLASS INDUSTRY: Back-up insulation in regenerators and melter crowns.
- PETROCHEMICALS: Furnaces and process heaters.
- FURNACE AREAS AND SERVICE ZONES
- WORKING LINING (HOT FACE): Used in intermittent or batch furnaces where low heat storage is essential.
- BACK-UP INSULATION: Placed behind denser, high-strength working linings (like Heavy-Duty Fireclay or High Alumina) to drastically lower the cold-face temperature and save energy.
- FURNACE DOORS AND CROWNS: Where weight reduction is desired for mechanical reasons.
- KEY DATA SHEET PROPERTIES TO CONSIDER
- CLASSIFICATION TEMPERATURE (K-FACTOR): THE CRITICAL VALUE. Must be selected to exceed the maximum expected hot face temperature.
- THERMAL CONDUCTIVITY: MUST be verified at the operating temperature. A lower K-value means better performance.
- BULK DENSITY (BD): The lower the BD, the better the insulation (and the lower the CCS).
- PERMANENT LINEAR CHANGE (PLC): Should be minimal at the classification temperature to prevent unwanted shrinkage during operation.
- TECHNICAL GUIDANCE
- Lightweight Fireclay Bricks are not suitable for direct contact with molten slag, metal, or high-velocity abrasive dust due to their poor CCS and wear resistance.
- IFBs are typically cemented using an air-setting refractory mortar of the same chemical composition. They must be protected from mechanical damage throughout their lifespan. Use them when ENERGY EFFICIENCY is the single highest priority.
