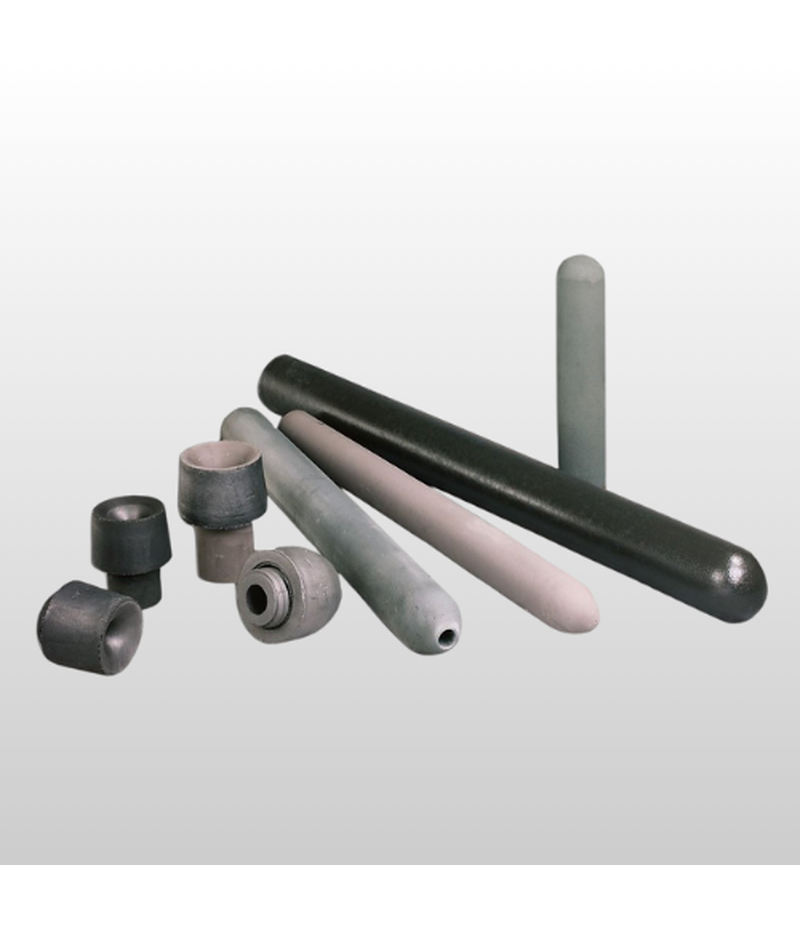

Ladle Shroud / Stopper Rod Spares
Ladle Shrouds and Stopper Rods are two vital, highly specialized refractory components used in the continuous casting process for molten steel. They are essential for achieving high-quality steel by ensuring precise flow control and protecting the metal from atmospheric re-oxidation.
1. Ladle Shroud (Submerged Entry Shroud, SES)
The Ladle Shroud is a tube (a specialized shape) that extends from the bottom of the teeming ladle down into the molten steel bath in the tundish.
- Primary Function: Shrouding the molten steel stream. It forms an airtight seal around the stream as it transfers from the ladle nozzle to the tundish, protecting the metal from exposure to the atmosphere.
- Need: Atmospheric oxygen can react with refining elements (like Aluminum) in the steel, forming non-metallic inclusions (Al₂O₃) that compromise steel quality. The shroud prevents this re-oxidation.
- Material: Typically high-alumina (Al₂O₃-C) or fused silica, chosen for excellent thermal shock resistance, as it must be rapidly submerged into the ~1600°C steel bath.
2. Stopper Rod (Flow Control Device)
The Stopper Rod is a consumable refractory rod that operates in conjunction with a specialized refractory seating block installed at the bottom of the ladle or tundish.
- Primary Function: Metering and starting/stopping the flow of molten steel. It functions like a valve, with the operator raising or lowering the rod to regulate the steel flow rate through the nozzle bore.
- Mechanism: The tip of the stopper rod (the crucial, high-wear spare) seats perfectly against the refractory nozzle, creating a seal. Lifting the rod creates an annular opening that controls the flow.
- Material: The main rod body is typically Al₂O₃-C, but the critical tip (spares) is often made of high-wear materials like Zirconia (ZrO₂) or stabilized ZrO₂ composite to withstand the severe erosion and thermal cycling at the sealing point.
3. Key Performance Requirements (Spares)
The quality and availability of these spares (shrouds and rod tips) are critical to maintaining continuous operation:
| Component Spares | Key Performance Requirement | Why it Matters |
|---|---|---|
| Shroud | Thermal Shock Resistance | Must resist cracking upon rapid contact with molten steel. |
| Shroud | Air Tightness/Purity | Prevents air ingress, ensuring clean steel. |
| Stopper Rod Tip | Erosion/Corrosion Resistance | Must maintain its precise geometry to ensure consistent flow metering. |
| Stopper Rod Tip | Spalling Resistance | Must not fracture during the repeated opening and closing against the seating block. |
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
