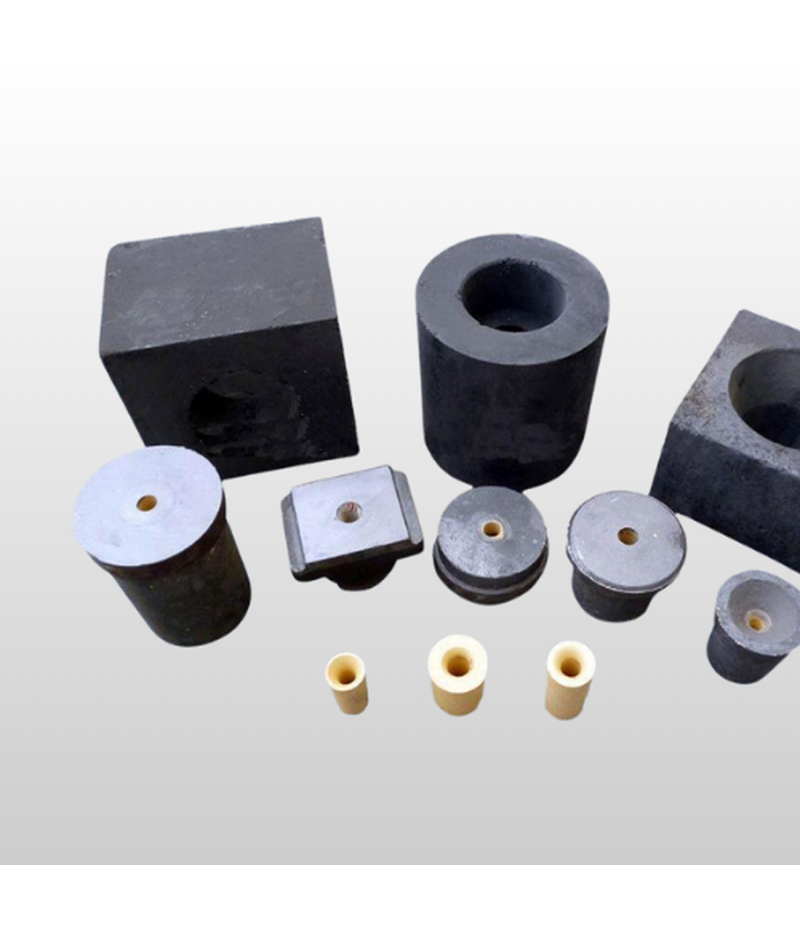

Ladle Nozzle / Tundish Nozzle Liners
Ladle Nozzle Liners and Tundish Nozzle Liners (often referred to generically as metering nozzles or shrouds) are high-performance refractory tubes or sleeves installed in the bottom of the steel teeming ladle and the tundish in a continuous casting operation. Their primary function is flow control, specifically to meter and guide the molten steel flow from the vessel into the next stage (ladle to tundish, or tundish to mold).
These liners are subject to some of the harshest conditions in the steelmaking process, including extreme thermal shock, high-velocity metal erosion, and chemical corrosion by both the molten steel and the protective slag covering.
Main Function and Characteristics
The liners control the flow rate of molten steel and protect the metal stream from atmospheric re-oxidation, ensuring consistent casting speed and high metal quality.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Material | Alumina-Carbon (Al₂O₃-C), Zirconia (ZrO₂) | Provides high wear resistance and thermal stability. |
| Purpose | METERING & SHROUDING | Controls liquid flow rate and protects the metal stream. |
| Design | PRECISION SHAPE | Optimized internal geometry for uniform, non-turbulent flow. |
CLASSIFICATION
- Engineering Focus: Consumable Flow Control
- Primary Application Focus: Erosion resistance and anti-clogging; Continuous Casting of Steel (Ladle-to-Tundish, Tundish-to-Mold).
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Erosion Resistance | CRITICAL | Resists wear from high-velocity, turbulent molten steel flow. |
| Thermal Shock | HIGH | Must withstand rapid heating from ambient to ~1600°C. |
| Anti-Clogging | HIGH | Composition must resist the build-up of non-metallic inclusions (e.g., alumina) that can choke the bore. |
- Material Composition
The choice of refractory material is dictated by the level of wear and the need to prevent clogging:
- Alumina-Carbon (Al₂O₃-C): Used for standard, high-performance metering nozzles. The carbon content provides excellent thermal shock resistance, while the high Al₂O₃ aggregate provides wear resistance.
- Zirconia (ZrO₂): Used in the most critical areas, such as the slag line or a seating block, due to its extremely high refractoriness, chemical inertness, and resistance to erosion by aggressive steel grades. Zirconia is also used for the insert in some nozzles to specifically combat alumina clogging.
- Fused Silica/Alumina: Used for specialized shrouding tubes that are prone to thermal shock.
- Specialized Flow Control Systems
The liners are often integrated into complex flow control mechanisms:
- Slide Gate Nozzles (Ladle): The liner is housed within the slide gate mechanism, which uses refractory plates (often Al₂O₃-C) to open and close the bore, providing precise control over the teeming process.
- Submerged Entry Nozzles (SEN) (Tundish-to-Mold): These are long, complex liners that plunge beneath the molten metal in the continuous casting mold. Their primary functions include:
- Shrouding: Protecting the metal stream from air to prevent re-oxidation.
- Flow Shaping: Utilizing specific exit port designs to optimize the fluid dynamics within the mold, which is crucial for surface quality.
- The Clogging Problem
A major challenge is the tendency for high-alumina steel to deposit solid Al₂O₃ inclusions on the nozzle bore, rapidly reducing the flow rate—a phenomenon known as nozzle clogging.
Solution: Nozzles are often treated or manufactured with stabilized Zirconia or CaO injection systems to chemically alter the inclusions at the bore surface, preventing them from adhering.
