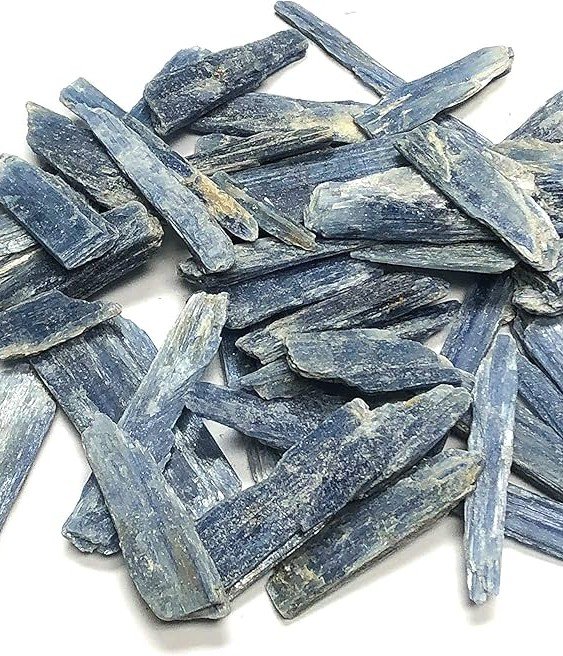

Kyanite Aggregate
Kyanite is a naturally occurring, high-alumina Al₂SiO₅ mineral. As a refractory aggregate, it is distinguished by its characteristic needle-like crystal structure and its predictable volumetric expansion upon thermal decomposition.
When heated to high temperatures (1250°C to 1450°C), Kyanite decomposes into Mullite (3Al₂O₃ · 2SiO₂) and amorphous silica glass. This transformation is accompanied by a significant and controlled volume increase (~18% to 25%). This expansion is utilized in refractory manufacturing to intentionally counteract the inherent drying and firing shrinkage of the refractory body, resulting in superior dimensional stability and crack-free products.
Main Function and Characteristics
Kyanite’s primary function is to provide an in-situ volume expansion to compensate for shrinkage, ensuring refractory products maintain their size and integrity.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Alumina (Al₂O₃) Content | ~50% to 60% | Determines the final Mullite content and refractoriness. |
| Volume Change | LARGE EXPANSION | Counteracts refractory shrinkage; prevents cracking. |
| Crystal Structure | Bladed/Needle-like | Enhances crack resistance and thermal shock performance. |
CLASSIFICATION
- Mineralogy Focus: Alumina-Silicate Mineral
- Primary Application Focus: Low-Shrinkage Refractories, Precision Castables, and Ramming Mixes.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Refractoriness (PCE) | HIGH (Approx. SK 35 to 37) | Stable Al₂O₃ and SiO₂ content. |
| Shrinkage Compensation | EXCELLENT | Controlled expansion counteracts dimensional changes during drying and firing. |
| Crack Resistance | GOOD | The resulting network of fine, needle-like Mullite crystals acts as crack arresters. |
- The Mullitization and Expansion Mechanism
Kyanite, along with Andalusite and Sillimanite, is one of the three Al₂SiO₅ polymorphs. Its decomposition into Mullite is the highest volume change of the three:
- Decomposition: When heated, the Kyanite crystal structure breaks down, and the atoms rearrange to form the stable phase, Mullite (3Al₂O₃ · 2SiO₂).
- Expansion: The new Mullite phase occupies a larger volume than the original Kyanite. This significant expansion is engineered into refractory formulations:
- In Bricks: It ensures a precisely sized product that is less prone to drying and firing cracks.
- In Monolithics: It creates a compressive stress that helps to “tighten” the lining against the shell, improving structural integrity and reducing joint wear.
- Comparison with Other Al₂SiO₅ Minerals
- Andalusite: Exhibits slight, predictable expansion (~3–5%). Used for fine dimensional control.
- Kyanite: Exhibits large expansion (~18–25%). Used when large, controlled compensation for shrinkage is needed.
- Sillimanite: Exhibits moderate expansion (~8–10%).
Because of its high expansion, Kyanite is often pre-calcined into Mullite-Kyanite aggregates if the refractory is not intended to rely on the expansion mechanism in service (i.e., if the maximum possible Al₂O₃ content is the goal).
- Applications
Kyanite is used in high-performance applications where dimensional precision is key:
- Low-Shrinkage Castables: Used in demanding monolithic linings where in-situ expansion is needed to prevent joint gaps and ensure a tight seal.
- Sintered/Fired Refractories: Included in the composition of high-alumina bricks to achieve precise dimensions and minimize porosity.
- Precision Ceramics: Used in the matrix of investment casting shells due to its clean chemistry and volume stability.
