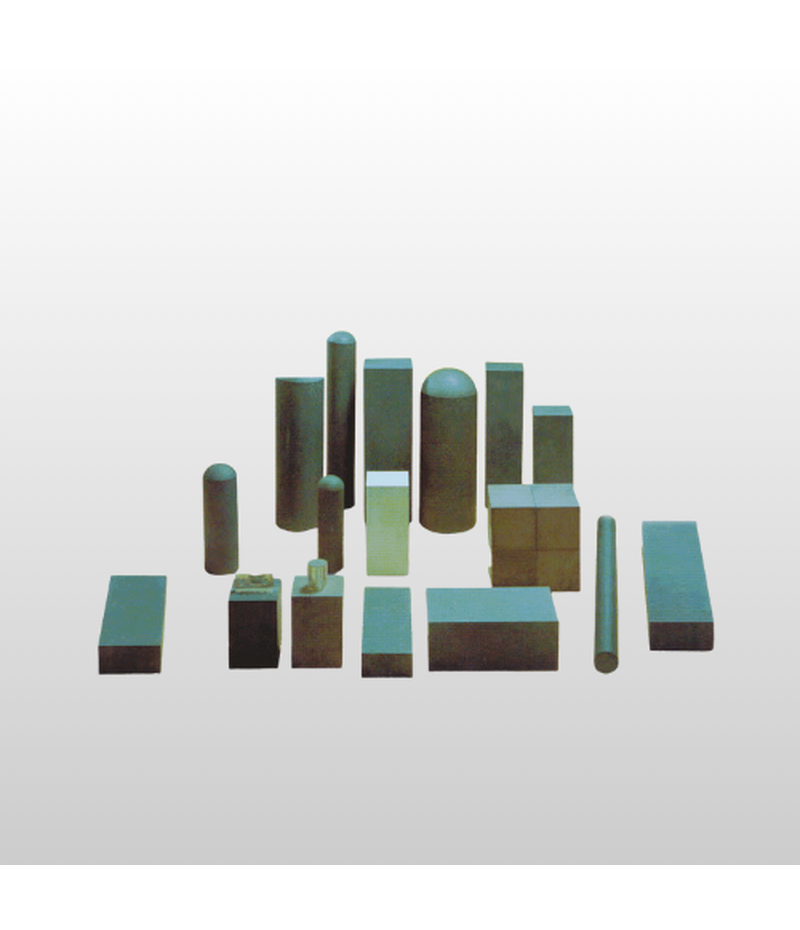

Isostatic SnO₂ Electrode
An Isostatic Tin Oxide (SnO₂) Electrode is a high-purity, dense ceramic electrode used to pass electric current through a molten glass bath to facilitate Joule heating (electric boosting) or all-electric melting.
This electrode is composed of highly refined tin oxide. The term “Isostatic” refers to the manufacturing process: the SnO₂ powder is compacted under isostatic pressure (equal pressure applied from all directions), resulting in a uniform, near-perfect density and micro-structure. This process is crucial because it eliminates weak spots and ensures high resistance to thermal shock, chemical corrosion, and electrical erosion in the extreme environment of a glass tank.
Main Function and Characteristics
The SnO₂ electrode is the only viable commercial material for directly contacting molten glass melts, particularly those containing lead or boron, where other electrodes would corrode or contaminate the glass.
| CHARACTERISTIC | VALUE RANGE | PRIMARY MELT FUNCTION |
|---|---|---|
| Composition | > 99% Tin Oxide (SnO₂) | High purity ensures minimal contamination of specialty glass. |
| Manufacturing | Isostatic Pressing | Achieves maximum density (> 95% theoretical) and uniformity. |
| Conductivity | SEMICONDUCTIVE | Becomes electrically conductive at high temperatures (> 1000°C). |
CLASSIFICATION
- Engineering Focus: High-Purity Ceramic Electrode
- Primary Application Focus: Electrical and chemical resistance; Electric Boosting/Melting of Specialty Glass (e.g., lead crystal, borosilicate).
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Corrosion Resistance | EXCEPTIONAL | Chemically inert in corrosive glass melts, especially lead glass where Mo electrodes fail. |
| Erosion Resistance | HIGH | The dense, uniform structure resists spalling and particle loss due to current passage. |
| Melting Point | VERY HIGH (~1900°C) | Ensures electrode integrity in high-temperature glass melting zones. |
- The Electrical and Chemical Mechanism
Unlike metals, which conduct electricity via electrons at all temperatures, SnO₂ is a semiconductor. At room temperature, it is an insulator, but above approximately 1000°C, the increase in temperature excites its charge carriers, making it adequately conductive for passing the high current required for Joule heating.
- Electric Boosting: SnO₂ electrodes are submerged near the bottom of a gas-fired glass furnace (hot spot), where the electric current passes through the molten glass, boosting the melting rate and improving glass quality.
- Contamination Control: For high-purity glass (e.g., optical glass or lead crystal), the use of SnO₂ is mandatory because traditional molybdenum (Mo) electrodes would dissolve and contaminate the glass with metallic ions, altering its color and properties.
- The Isostatic Advantage
The cost of SnO₂ is high, so maximizing its lifespan is critical. Isostatic pressing ensures:
- Longevity: Uniform density minimizes local hot spots and corrosion pockets, leading to a longer, more predictable service life.
- Structural Integrity: Eliminates manufacturing defects (like large pores or cracks) that could lead to explosive failure due to thermal cycling.
- Guidance
SnO₂ electrodes must be installed using highly specialized, refractory-lined cooling holders and power feed-throughs due to the necessity of cooling the contact area while exposing the tip to extreme heat. The connection is a critical component under your Handling & Safety.
