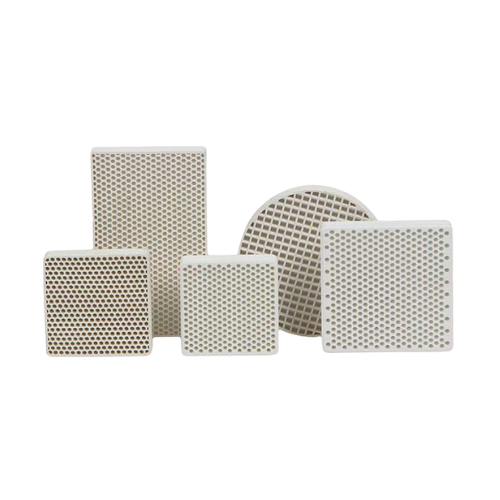

Honeycomb Ceramic Regenerator Unit
A Honeycomb Ceramic Regenerator Unit (or Honeycomb Monolith) is a specialized, high-surface-area refractory structure used as a heat storage medium in regenerative heating systems (e.g., Regenerative Thermal Oxidizers, RTOs, or industrial furnaces like glass tanks). The structure features a large number of thin-walled, parallel channels (the honeycomb) designed to maximize the heat exchange surface area (HES) and minimize the pressure drop across the bed.
Main Chemical Compositions & Categories
Honeycomb units are typically made from highly refractory oxide ceramics, often chosen for their high specific heat capacity (Cp) and thermal stability.
| MATERIAL BASE | TYPICAL COMPOSITION | TYPICAL MST | PRIMARY ADVANTAGE |
| Corundum/High Alumina | Al2O3 | ~1700°C to 1800°C | Maximum heat capacity and hot strength. |
| Cordierite | Mg2Al4Si5O18 | ~1250°C to 1450°C | Excellent thermal shock resistance and low thermal expansion. |
| Mullite | 3Al2O3-2SiO2 | ~1650°C to 1700°C | Good balance of Cp and thermal shock resistance. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Heat Exchange Surface (HES) | EXTREMELY HIGH | Thin cell walls create a massive surface area to quickly absorb and release heat. |
| Pressure Drop | VERY LOW | Straight, parallel channels allow for laminar flow and minimal air/gas side resistance. |
| Specific Heat Capacity (Cp) | HIGH | Maximizes the amount of energy stored per unit volume of material. |
| Thermal Shock Resistance | VARIES | Cordierite is superior; essential for systems with frequent, rapid flow reversals (e.g., RTOs). |
Advantages and Key Characteristics
The honeycomb design is highly efficient for regenerative heat recovery, far surpassing the efficiency of traditional packed beds (like checkered brickwork) by maximizing heat transfer with minimal energy penalty.
- High Thermal Efficiency: By achieving high HES and low pressure drop simultaneously, the units enable extremely efficient heat recovery, often exceeding 90% thermal efficiency in regenerative systems. This significantly reduces fuel consumption.
- Compact Design: Honeycomb units provide a high ratio of surface area to volume, allowing the regenerator bed to be significantly smaller and more compact than traditional brickwork for the same heat duty.
- Low Maintenance: The rigid, high-strength ceramic structure resists shifting, settling, and attrition better than loose media, leading to a longer service life and less flow restriction over time.
- Fast Regeneration Cycle: The thin walls allow heat to penetrate the ceramic structure quickly, enabling fast flow reversal cycles (e.g., every 30–120 seconds in an RTO), which is key to maintaining a near-constant heat level in the process.
Typical Industries and Applications
This product is specialized for energy recovery and thermal process optimization:
- Environmental Control (RTOs/RCOs): The core heat exchange media in Regenerative Thermal Oxidizers (RTOs) used to destroy Volatile Organic Compounds (VOC) by preheating the polluted air with energy recovered from the clean exhaust.
- Glass Industry: Used in the regenerators of large glass melting furnaces to preheat the combustion air, significantly improving furnace efficiency.
- Metallurgy: Preheating combustion air in large-scale soaking pits and forging furnaces.
Design and Selection Criteria
Selection is based on the operating temperature, thermal cycling rate, and required efficiency:
- Cell Density (CPSI): Measured in cells per square inch (e.g., 25, 40, 60 CPSI). Higher CPSI means higher HES (better efficiency) but also a higher pressure drop. A balance must be struck based on fan power limits.
- Wall Thickness: Thinner walls lead to faster heat transfer and lighter units but lower mechanical strength.
- Material Choice: Cordierite is typically used in RTOs (≤1400°C) due to its excellent thermal shock resistance. Alumina or Mullite is used in glass or steel furnaces requiring higher MST.
Technical Guidance: Proper loading and sealing of the honeycomb bed are critical to prevent gas bypass around the units, which would severely compromise thermal efficiency. Units must be handled carefully as the thin walls are mechanically fragile before installation.
