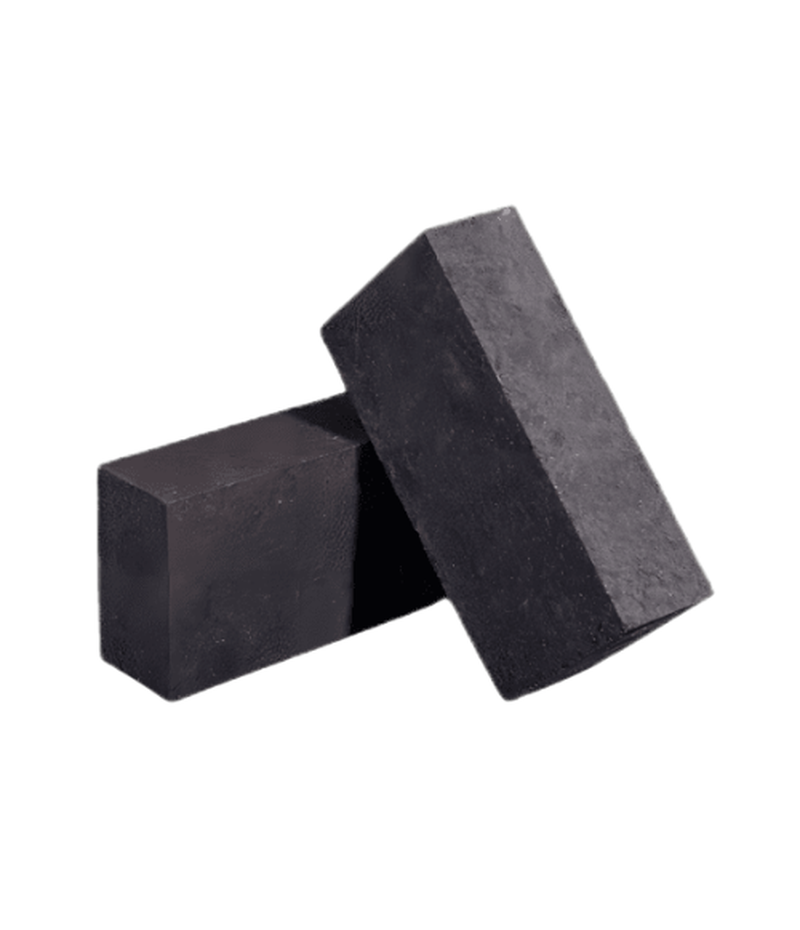

High Chrome Brick
Main Chemical Compositions & Categories
High Chrome Bricks are defined by their very high content of CHROMIUM OXIDE (Cr2O3), often exceeding 80%. This content is achieved by synthesizing pure Cr2O3 with minor amounts of Al2O3 or ZrO2 for structural stability.
| CATEGORY | Cr2O3 CONTENT | BONDING/MATRIX | PRIMARY ADVANTAGE |
| HIGH CHROME | 80% to 98% | Sintered or Fused | Maximum chemical corrosion resistance |
| CHROME-CORUNDUM | 5% to 20% | Sintered Al2O3 Matrix | Balanced TUL and chemical resistance |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Corrosion Resistance | MAXIMUM | Cr2O3 is highly inert and forms a saturated, protective solid solution interface with most industrial slags. |
| Temperature Under Load (TUL) | VERY HIGH | The high refractoriness of Cr2O3 (MP ~ 2300°C) ensures stability at extreme temperatures. |
| Spalling Resistance | MODERATE | High density and single-phase crystal structure can make it vulnerable to rapid thermal cycling. |
| Slag Resistance | EXCEPTIONAL | Particularly resistant to V2O5 (Vanadium) and Fe-rich, complex, or low-alkali basic slags. |
Advantages and Key Characteristics
High Chrome Bricks are a top-tier solution reserved for the most hostile, chemically aggressive environments that rapidly destroy standard refractories like Cr2O3 or MgO.
- Unrivaled Chemical Inertness: The extremely high concentration of Cr2O3 makes the brick nearly impervious to dissolution by specific industrial melts, particularly those containing high levels of V2O5 (common in oil ash) or complex acidic/neutral waste slags.
- Structural Integrity at Extreme Heat: With a melting point far exceeding that of most other refractory oxides, the brick maintains structural strength and creep resistance under the harshest thermal conditions.
- Erosion Control: The dense, high-hardness nature of the Cr2O3 phase provides excellent resistance to physical abrasion and scouring from high-velocity melts or particulate matter.
Typical Industries and Applications
This premium brick is used in industries facing unique, highly aggressive chemical wear:
- Petrochemicals: Oil refining/gasification units, especially where crude oil contains high levels of Vanadium, which forms highly corrosive low-melting-point slags (V2O5) that flux most other refractories.
- Chemical Industry: Incinerators and reactors processing hazardous or complex chemical waste with aggressive ash/slag chemistries.
- Glass Industry: Specialized areas handling unique glass compositions or severe volatilization.
Furnace Areas and Service Zones
They are specified for maximum wear and chemical attack zones:
- CRITICAL SLAG LINES: Used where the slag chemistry is uniquely corrosive, such as V2O5 attack in gasifiers.
- BURNER PORTS/THROATS: Areas subject to high thermal and chemical loading from fuel-air combustion products.
- REACTION ZONES: The primary lining in chemical or gasification reactors where the product is corrosive.
Key Data Sheet Properties to Consider
Selection is based almost entirely on chemical composition and purity:
- Cr2O3 Content: CRITICAL VALUE. Must be verified to confirm the high concentration (e.g., 90% or greater).
- SiO2 and Alkali Content: Must be minimized, as these impurities act as fluxes and are detrimental to the high refractoriness of Cr2O3.
- Bulk Density (BD) and Apparent Porosity (AP): High BD and low AP are essential to prevent penetration by corrosive liquids.
- TUL and CISC: Must demonstrate superior hot strength and creep resistance over Corundum-Chrome grades.
Technical Guidance: High Chrome Bricks are the most expensive oxide refractory solution and are only justified when all other materials fail due to specific chemical attack. Due to the high Chromium content, these materials are subject to stringent environmental regulations. Specific handling, demolition, and disposal protocols must be followed to manage potential Cr(VI) formation and hazardous waste classification.
