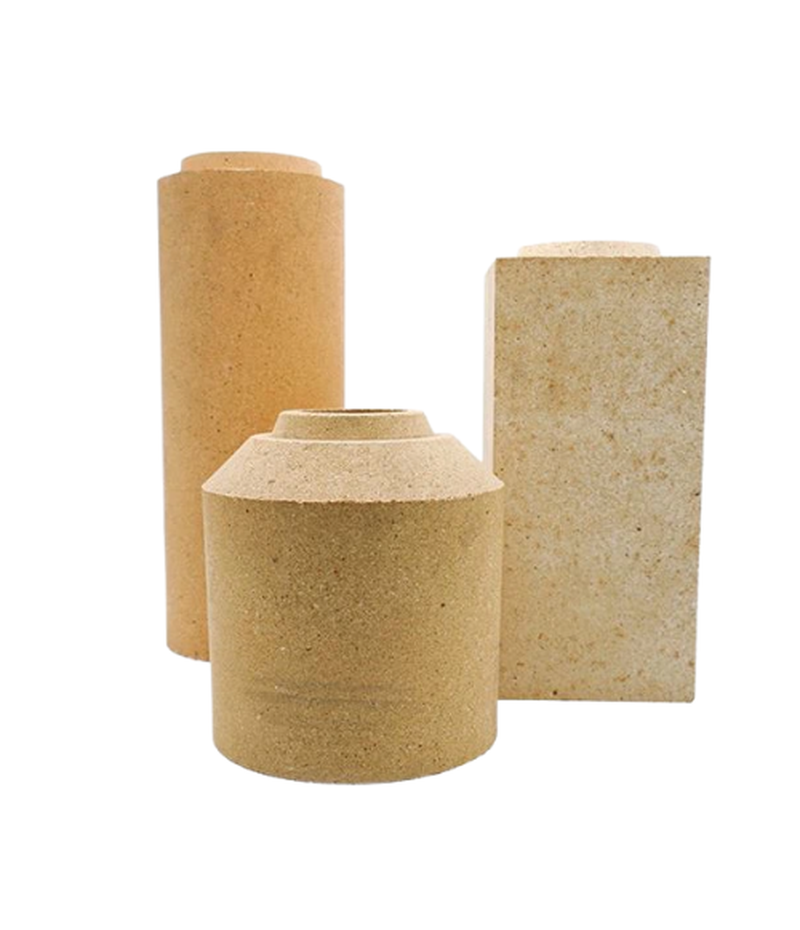

High Alumina Runner Brick
- MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
- High Alumina Runner Bricks are dense products composed of ALUMINA (AL2O3), typically from bauxite or sintered alumina, and a minor SILICA (SIO2) content. The high AL2O3 content directly improves resistance to molten metal erosion.
- ALUMINA CONTENT: 60% to 85%
- KEY FUNCTION: Safe, high-integrity channeling of corrosive molten metal and slag.
- PRIMARY ADVANTAGE: Superior resistance to erosion and chemical attack compared to Fireclay runners.
- KEY PROPERTIES AND PERFORMANCE
- PROPERTY: EROSION AND WEAR RESISTANCE
- TYPICAL PERFORMANCE: VERY GOOD TO EXCELLENT.
- VARIATION: IMPROVES as the ALUMINA content and Bulk Density (BD) INCREASE, leading to lower porosity and a stronger crystalline structure.
- PROPERTY: TEMPERATURE UNDER LOAD (TUL)
- TYPICAL PERFORMANCE: HIGH. Maintains structural stability at the high temperatures of steel and non-ferrous tapping.
- VARIATION: TUL INCREASES significantly with ALUMINA content.
- PROPERTY: METAL PENETRATION
- TYPICAL PERFORMANCE: MINIMAL.
- VARIATION: Resistance is maximized with low Apparent Porosity (AP) and high BD.
- PROPERTY: THERMAL SHOCK
- TYPICAL PERFORMANCE: GOOD. Adequate for the rapid temperature change during tapping, though slightly less resilient than some Fireclay grades.
- PROPERTY: EROSION AND WEAR RESISTANCE
- ADVANTAGES AND KEY CHARACTERISTICS
- HIGH EROSION RESISTANCE: The dense, high-ALUMINA composition makes the brick highly resistant to physical wash-out and abrasion caused by the high-velocity stream of molten metal and slag.
- MINIMAL CONTAMINATION: Lower levels of impurities (e.g., iron oxide) compared to Fireclay, reducing the risk of non-metallic inclusions contaminating high-grade metals.
- HOT STRENGTH AND INTEGRITY: Maintains superior structural strength at high temperatures, critical for preventing run-outs or channel deformation during extended tapping sequences.
- BETTER SLAG RESISTANCE: Offers better resistance to the mixed/neutral slags often present in runners, providing longer life near the taphole area.
- TYPICAL INDUSTRIES AND APPLICATIONS
- FERROUS INDUSTRY: Tapping and runner systems for electric arc furnaces (EAF) and basic oxygen furnaces (BOF), continuous casting tundish furniture, and specialized ladles.
- FOUNDRY: High-grade steel and specialty alloy casting where minimal refractory erosion is mandatory.
- NON-FERROUS INDUSTRY: Runners and spouts for copper, lead, and zinc, especially when temperatures are high or fluxes are aggressive.
- FURNACE AREAS AND SERVICE ZONES
- TAPHOLE AND RUNNER BASE: Used in the immediate area of the taphole and along the main runner channel where velocity and slag contact are highest.
- HIGH-VELOCITY CHANNELS: Anywhere the molten metal or slag flow is fast and turbulent, causing high physical wear.
- NOZZLE AND SLEEVE BRICKS: Used for precision flow control components requiring maximum dimensional stability and erosion resistance.
- KEY DATA SHEET PROPERTIES TO CONSIDER
- BULK DENSITY (BD): CRITICAL VALUE. Must be high (e.g., 2.7 to 3.0 g/cm3) to ensure a dense, non-porous structure.
- APPARENT POROSITY (AP): MUST be minimized (e.g., under 18%) to prevent penetration of molten metal and slag.
- ALUMINA CONTENT: Confirms the chemical purity and intrinsic refractory strength.
- COLD CRUSHING STRENGTH (CCS): Must be very high to resist mechanical damage during installation.
- TECHNICAL GUIDANCE
- High Alumina Runner Bricks are the standard choice for demanding, high-temperature tapping processes where product quality (contamination control) and safe operation are prioritized over initial cost.
- For maximum resistance to severe slag (especially basic slag) or oxidation, High Alumina runners may be substituted with specialized MAGNESIA or CARBON-CONTAINING materials, but High Alumina offers the best balance for general high-temperature erosion.
