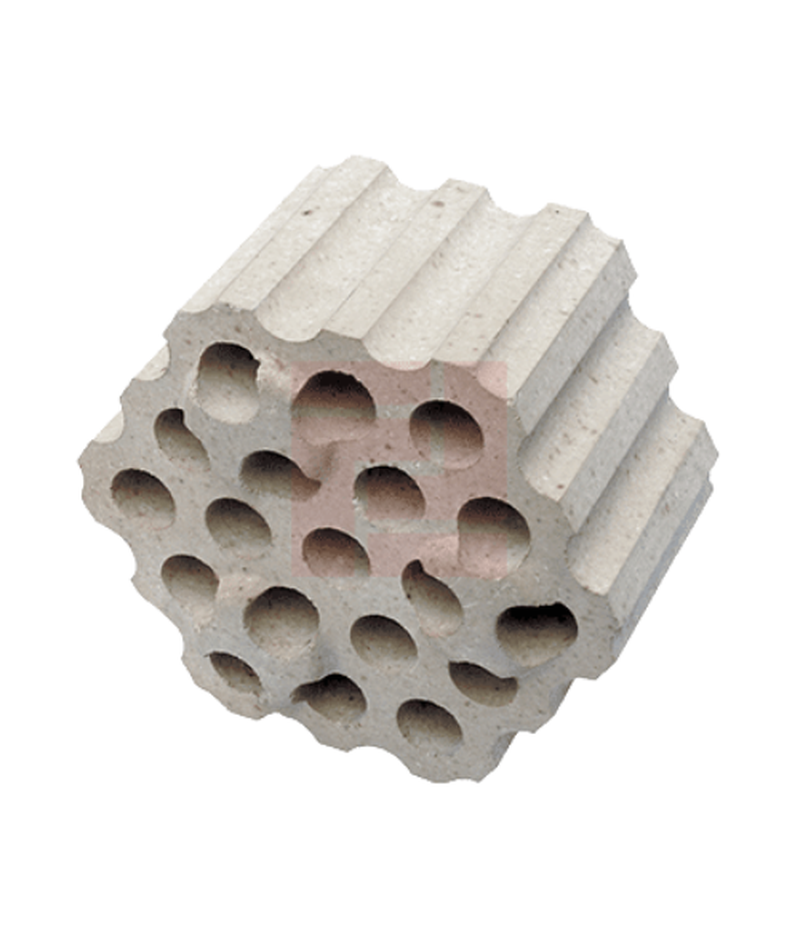

High Alumina Checker Brick
- MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
- High Alumina checkers are composed mainly of ALUMINA (AL2O3) with a balance of SILICA (SIO2). The high AL2O3 content minimizes glass phase formation, improving refractoriness.
- ALUMINA CONTENT: 50% to 80% (typically 50-60% for checker applications).
- KEY FUNCTION: Efficient, high-temperature heat storage and transfer.
- PRIMARY ADVANTAGE: Superior structural stability and resistance to fluxing compared to Fireclay checkers.
- KEY PROPERTIES AND PERFORMANCE
- PROPERTY: TEMPERATURE UNDER LOAD (TUL)
- TYPICAL PERFORMANCE: HIGH. TUL is significantly higher than SK34 Fireclay.
- VARIATION: TUL INCREASES as ALUMINA content rises, making it ideal for high-stacked structures.
- PROPERTY: ALKALI RESISTANCE
- TYPICAL PERFORMANCE: GOOD TO VERY GOOD.
- VARIATION: IMPROVES as ALUMINA content increases and porosity is controlled, reducing reaction with alkali vapors (e.g., K2O, NA2O).
- PROPERTY: HEAT CAPACITY / BULK DENSITY (BD)
- TYPICAL PERFORMANCE: HIGH.
- VARIATION: BD is often controlled to be high to maximize heat storage mass for thermal efficiency.
- PROPERTY: VOLUME STABILITY
- TYPICAL PERFORMANCE: EXCELLENT.
- VARIATION: High firing and AL2O3 content result in low residual shrinkage or expansion, crucial for maintaining stack geometry.
- PROPERTY: TEMPERATURE UNDER LOAD (TUL)
- ADVANTAGES AND KEY CHARACTERISTICS
- HIGH STRUCTURAL STABILITY: The high AL2O3 content ensures superior TUL and resistance to creep, preventing deformation or collapse of the checker stack in the hottest zones.
- CORROSION RESISTANCE: Offers much better resistance to chemical attack and subsequent blockage (plugging) caused by carry-over dust and condensed alkali vapors (K2O, NA2O) than Fireclay.
- OPTIMIZED HEAT TRANSFER: Used in custom geometries (like Fireclay checkers) but is capable of withstanding the higher operating temperatures required for maximum thermal efficiency.
- TYPICAL INDUSTRIES AND APPLICATIONS
- GLASS INDUSTRY: Used in the upper, hottest layers of glass furnace regenerators to withstand high temperatures and severe alkali attack.
- FERROUS INDUSTRY: Hot Blast Stoves (HBS) upper dome and upper checker courses where temperatures can exceed 1350 degrees Celsius.
- ANY HIGH-TEMPERATURE REGENERATOR: Used where the waste gas temperature makes Fireclay refractories inadequate.
- FURNACE AREAS AND SERVICE ZONES
- UPPER CHECKER SETTINGS: Placed in the top 3-5 courses of the checker stack to handle the peak incoming gas temperatures and the heaviest thermal and chemical load.
- CRITICAL STACK SUPPORT: Used as the primary structural material in the highest-load areas of the regenerator chamber.
- KEY DATA SHEET PROPERTIES TO CONSIDER
- ALUMINA CONTENT: Should be verified (e.g., 50% or 60%) as the key indicator of refractoriness and chemical stability.
- REFRACTORINESS UNDER LOAD (TUL): MUST be confirmed to be well above the maximum anticipated operating temperature and stack load.
- BULK DENSITY (BD): Look for high BD to ensure maximum thermal mass and minimal porosity.
- APPARENT POROSITY (AP): Low AP is essential to minimize the absorption and subsequent reaction of alkali fluxes, which causes premature failure via plugging.
- TECHNICAL GUIDANCE
- High Alumina checkers provide maximum thermal efficiency by allowing for higher pre-heat temperatures and extending the life of the checker setting against severe fluxing.
- The additional cost is justified by EXTENDED CAMPAIGN LIFE and IMPROVED ENERGY EFFICIENCY. The choice between High Alumina and even higher-performance Magnesia checkers depends on the severity of the alkali load and maximum temperature.
