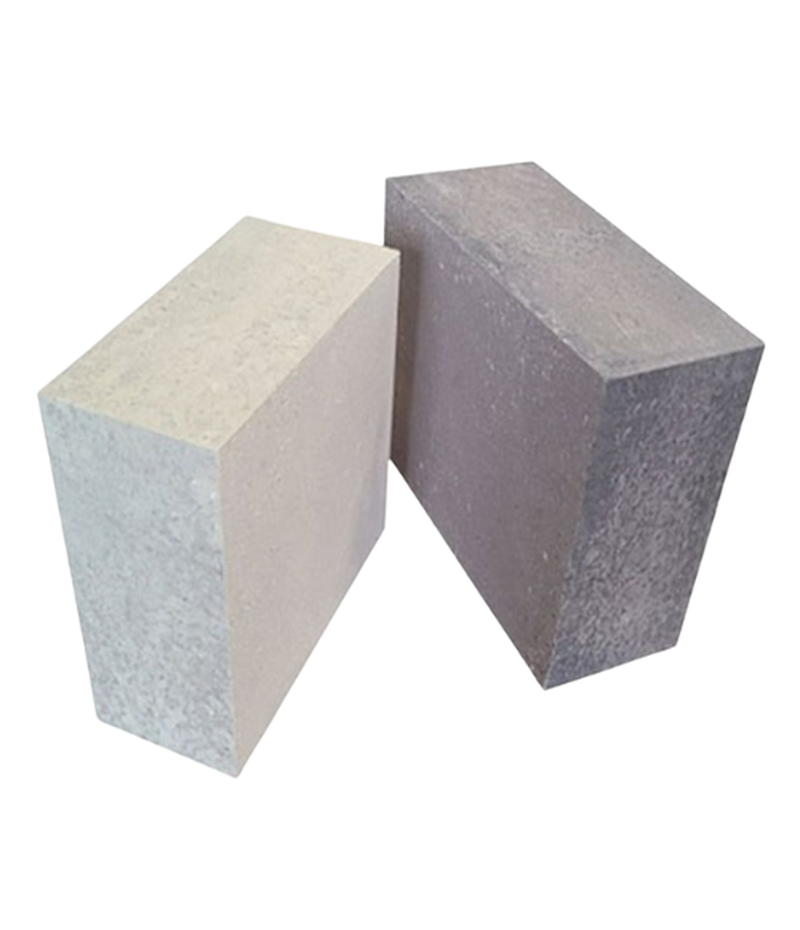

High Alumina Brick – Phosphate-Bonded
MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
Phosphate-Bonded bricks are characterized by high ALUMINA (AL2O3) content and the presence of an inorganic binder, typically ALUMINUM PHOSPHATE or PHOSPHORIC ACID. They require a heat-up (sintering) cycle in service to reach full strength.
- CATEGORY: CHEMICALLY-BONDED ALUMINA
- AL2O3 CONTENT: 70% TO 90%
- KEY BONDING AGENT: PHOSPHATE (P2O5)
- PRIMARY ADVANTAGE: HIGH STRENGTH AFTER LOW-TEMPERATURE HEAT-UP (COLD CRUSHING STRENGTH IS HIGH)
KEY PROPERTIES AND PERFORMANCE
- PROPERTY: HOT STRENGTH / TEMPERATURE UNDER LOAD (TUL)
- TYPICAL PERFORMANCE: GOOD (REQUIRES HIGH TEMPERATURES TO DEVELOP CERAMIC BOND)
- VARIATION: HIGH GREEN (AS-PRESSED) STRENGTH. HOT STRENGTH IMPROVES AS THE PHOSPHATE BOND CONVERTS TO A HIGH-STRENGTH ALUMINUM PHOSPHATE AND LATER TO A CERAMIC BOND.
- PROPERTY: COLD CRUSHING STRENGTH (CCS)
- TYPICAL PERFORMANCE: VERY HIGH
- VARIATION: INCREASES WITH THE AMOUNT OF PHOSPHATE BINDER. THIS IS A KEY SELLING POINT FOR HANDLING.
- PROPERTY: THERMAL SHOCK
- TYPICAL PERFORMANCE: GOOD TO VERY GOOD
- VARIATION: THE CHEMICALLY-BONDED MATRIX PROVIDES MORE ELASTICITY THAN FIRED BRICKS, IMPROVING THERMAL SHOCK RESISTANCE.
- PROPERTY: ABRASION / WEAR
- TYPICAL PERFORMANCE: GOOD
- VARIATION: IMPROVES WITH AL2O3 CONTENT AND DENSITY. HIGH STRENGTH AT INTERMEDIATE TEMPERATURES HELPS RESIST WEAR.
- ADVANTAGES AND KEY CHARACTERISTICS
- HIGH COLD STRENGTH: Resistant to damage during shipping, handling, and construction, minimizing material loss.
- INTERMEDIATE TEMPERATURE STRENGTH: The bond is highly effective in the 200 to 1200 degrees Celsius range, making it reliable for units with slow or frequent temperature cycling.
- VOLUME STABILITY: Since it is not pre-fired, volume changes are controlled during the operational heat-up cycle.
- TYPICAL INDUSTRIES AND APPLICATIONS
- FERROUS INDUSTRY: Ladle lip and rim linings (due to handling strength), Reheat Furnace doors and roof sections.
- CEMENT AND LIME: Kiln discharge ends and cooler arch sections.
- FURNACE AREAS AND SERVICE ZONES
- DOORS AND ARCHES: Areas subject to high mechanical load during maintenance but moderate thermal service.
- INTERMEDIATE TEMPERATURE ZONES: Where a stable bond is required across the chemical-to-ceramic transition.
- KEY DATA SHEET PROPERTIES TO CONSIDER
- COLD CRUSHING STRENGTH (CCS): THE CRITICAL VALUE. Must be exceptionally high (e.g., 80 to 120 MPa).
- LINEAR CHANGE ON FIRING (LCR): Will show SHRINKAGE during initial service heat-up as the chemical bond converts. This must be accounted for during installation.
- PHOSPHATE CONTENT (P2O5): Indicates bond strength but can affect refractoriness at the highest service temperatures.
- TECHNICAL GUIDANCE
- Phosphate-Bonded bricks must be heated slowly during initial operation to properly develop the high-temperature ceramic bond. Rapid heating can cause explosive spalling.
- Use this product when COLD CRUSHING STRENGTH and THERMAL SHOCK in the intermediate range are more important than pure refractoriness.
