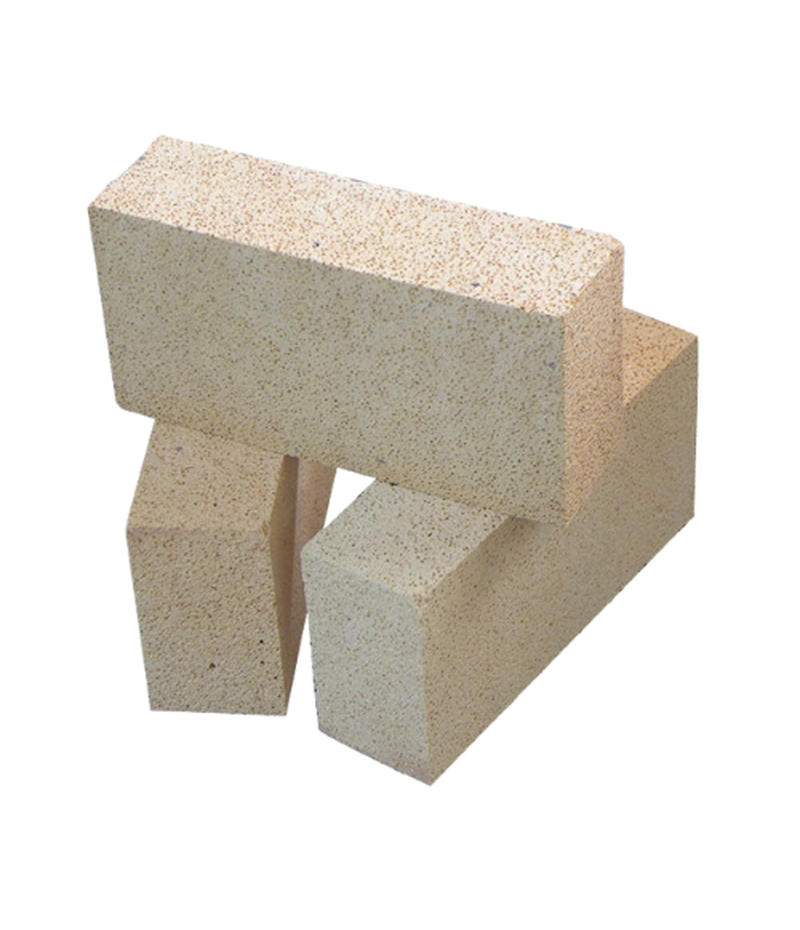

High Alumina Brick – Low Creep
MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
Low Creep bricks are a specialized grade of High Alumina, characterized by ULTRA-HIGH PURITY ALUMINA (AL2O3) and extremely low impurity content (FE2O3, K2O, NA2O). The low creep rate is achieved through maximum densification during firing.
- CATEGORY: LOW CREEP ALUMINA
- AL2O3 CONTENT: 70% TO 95%
- KEY RAW MATERIAL: HIGH-FIRED BAUXITE or SINTERED/TABULAR ALUMINA
- PRIMARY ADVANTAGE: EXTREME RESISTANCE TO DEFORMATION UNDER LOAD AT HIGH TEMPERATURES
KEY PROPERTIES AND PERFORMANCE
- PROPERTY: TEMPERATURE UNDER LOAD (TUL)
- TYPICAL PERFORMANCE: EXTREMELY HIGH
- VARIATION: DIRECTLY CORRELATES WITH AL2O3 PURITY. HIGHER PURITY YIELDS A HIGHER TUL AND EXCELLENT CREEP RESISTANCE.
- PROPERTY: CREEP IN COMPRESSION (CISC)
- TYPICAL PERFORMANCE: EXTREMELY LOW
- VARIATION: DECREASES AS PURITY AND FIRING TEMPERATURE INCREASE, ELIMINATING GLASSY OR WEAK PHASES.
- PROPERTY: CORROSION
- TYPICAL PERFORMANCE: VERY GOOD TO EXCELLENT RESISTANCE TO ACIDIC AND NEUTRAL SLAGS
- VARIATION: IMPROVES SIGNIFICANTLY WITH AL2O3 CONTENT AND LOW POROSITY. POOR AGAINST HIGHLY BASIC SLAGS.
- PROPERTY: VOLUME STABILITY
- TYPICAL PERFORMANCE: EXCELLENT
- VARIATION: HIGH FIRING ELIMINATES RESIDUAL SHRINKAGE, PROVIDING A HIGHLY STABLE LINING.
ADVANTAGES AND KEY CHARACTERISTICS
Low Creep High Alumina bricks are engineered for STRUCTURAL LONGEVITY in the hottest, highest-loaded sections of a furnace, where traditional High Alumina might deform over time.
- Exceptional Hot Strength and TUL: The key feature is the maintenance of structural integrity over long periods (months or years) under continuous heat and compression.3 This prevents catastrophic collapse or geometry changes.
- Minimal Creep (CISC): Creep is the slow, permanent deformation of the material under constant load at high temperatures.4 Low Creep bricks minimize this, ensuring the lining geometry remains constant throughout the campaign.
- High Density and Purity: Achieved by selecting high-purity raw materials (e.g., Tabular Alumina) and firing them at very high temperatures, resulting in a dense product with low porosity and high resistance to wear and penetration.
- Extended Campaign Life: By eliminating creep as a failure mechanism, these bricks dramatically extend the service life of critical assets, offering a substantial return on investment (ROI).
TYPICAL INDUSTRIES AND APPLICATIONS
These are premium refractories used exclusively in the most critical, high-load, and long-campaign applications:
- FERROUS INDUSTRY: High-temperature zones of Hot Blast Stoves (HBS) (dome, upper checkers, top structure), Continuous Annealing Furnaces, and large Reheat Furnace crowns.5
- GLASS INDUSTRY: Glass Tank Regenerator crowns, burner ports, and upper setting courses, where stability under load at very high temperatures is paramount.6
- PETROCHEMICALS: Hydrogen and Ammonia Reformers, where precise geometry and long-term thermal cycling stability are required.
FURNACE AREAS AND SERVICE ZONES
They are used in zones demanding the highest combination of temperature and structural stability:
- STRUCTURAL ARCHES AND CROWNS: Areas supporting immense load in large furnaces (e.g., large arch spans or dome roofs).
- UPPER HOT BLAST STOVE CHECKERS: The topmost layers that bear the full weight of the stack while cycling through extreme temperatures.
- HIGH-LOAD PERMANENT LININGS: Zones where the brick must serve as the primary structural component behind the working lining for decades.
KEY DATA SHEET PROPERTIES TO CONSIDER
The performance metrics for Low Creep bricks are specialized:
- CREEP IN COMPRESSION (CISC): THE CRITICAL VALUE. Must be exceptionally low (e.g., less than 0.05% change after 50 hours at $1500^{\circ}C$). This data differentiates a true Low Creep brick from standard High Alumina.
- REFRACTORINESS UNDER LOAD (TUL): Must be high, but the creep rate is a better long-term indicator than TUL.
- APPARENT POROSITY (AP) and BULK DENSITY (BD): Low AP (typically under 18%) and high BD are essential, indicating a densely sintered structure necessary for creep resistance.
- FE2O3 and Alkali Content: Must be minimized, as these impurities form low-melting glassy phases that accelerate creep.7
TECHNICAL GUIDANCE: Low Creep bricks justify their higher cost through MAXIMUM UPTIME and EXTENDED CAMPAIGN LIFE. When specifying this product, always demand the CISC data for the specific service temperature and load, as TUL alone is insufficient to predict long-term stability in these high-stress environments.
