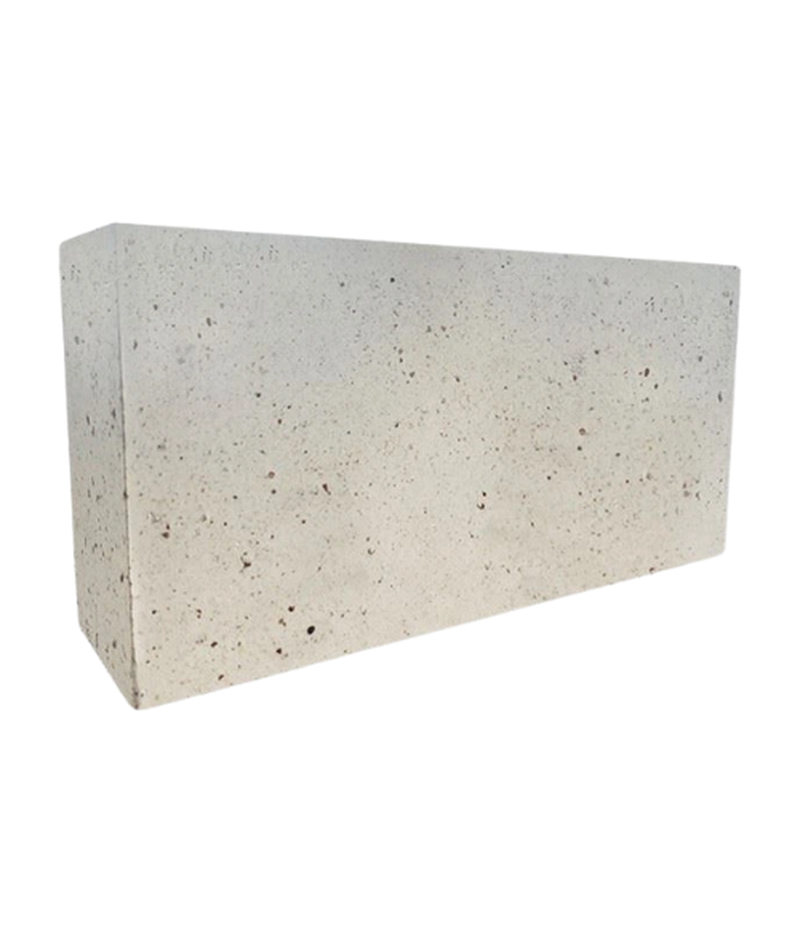

High Alumina Brick – Andalusite-Based
MAIN CHEMICAL COMPOSITIONS AND CATEGORIES
Andalusite-based bricks are high ALUMINA (AL2O3) products. They use natural ANDALUSITE, which forms high-strength MULLITE upon firing.
- CATEGORY: ANDALUSITE
- AL2O3 CONTENT: 50% TO 65%
- KEY RAW MATERIAL: NATURAL ANDALUSITE
- PRIMARY ADVANTAGE: EXCELLENT VOLUME STABILITY
KEY PROPERTIES AND PERFORMANCE
- PROPERTY: TEMPERATURE UNDER LOAD (TUL)
- TYPICAL PERFORMANCE: VERY GOOD TO EXCELLENT
- VARIATION: INCREASES SIGNIFICANTLY. MULLITE FORMATION AIDS TUL AT LOWER AL2O3 LEVELS.
- PROPERTY: THERMAL SHOCK
- TYPICAL PERFORMANCE: GOOD
- VARIATION: IMPROVES DUE TO MULLITE’S LOW COEFFICIENT OF THERMAL EXPANSION, MINIMIZING STRESS.
- PROPERTY: CORROSION
- TYPICAL PERFORMANCE: VERY GOOD RESISTANCE TO ACIDIC AND NEUTRAL SLAGS
- VARIATION: IMPROVES AS AL2O3 RISES. POOR AGAINST HIGHLY BASIC SLAGS.
- PROPERTY: VOLUME STABILITY
- TYPICAL PERFORMANCE: EXCEPTIONAL
- VARIATION: CRITICAL ADVANTAGE. THE EXPANSION OF ANDALUSITE COMPENSATES FOR FIRING SHRINKAGE, CREATING A TIGHT LINING.
ADVANTAGES AND KEY CHARACTERISTICS
Andalusite bricks are prized for structural integrity and reliability, making them a high-value upgrade from standard fireclay.
- SUPERIOR HOT STRENGTH: The structure is dominated by MULLITE, which provides exceptional load-bearing capacity at high temperatures.
- EXCELLENT VOLUME STABILITY (PCE): The controlled expansion during firing ensures a TIGHT, STABLE LINING structure with minimal joint allowance needed.
- LOW CREEP/HIGH TUL: Exhibits low deformation, maintaining the furnace’s geometry over long operational campaigns.
- RESISTANCE TO WEAR: High density and low porosity improve resistance to material abrasion and slag penetration.
TYPICAL INDUSTRIES AND APPLICATIONS
Andalusite is a premium refractory for critical, high-temperature structural zones:
- FERROUS INDUSTRY: Hot Blast Stoves (hot zones), high-wear areas of Reheat Furnaces, and ladle safety linings.
- CEMENT AND LIME: Rotary Kiln pre-heater towers, calcining zones, and tertiary air ducts.
- GLASS INDUSTRY: Regenerator upper structures, crowns, and port linings.
- PETROCHEMICALS: High-temperature reactors and cyclones.
FURNACE AREAS AND SERVICE ZONES
They are used in zones demanding both high temperature and structural load:
- HIGH-TEMPERATURE STRUCTURAL WALLS: Where the lining must support significant weight (e.g., furnace crowns, support arches).
- HOT BLAST STOVE CHECKER TOP: Used in the upper, hottest section of the checkers due to its excellent TUL and thermal cycling resistance.
- EROSION ZONES: Used in areas combining high heat and particle abrasion.
KEY DATA SHEET PROPERTIES TO CONSIDER
Selection must prioritize structural and thermal stability indicators:
- MULLITE CONTENT: A high proportion is the best indicator of good hot strength and stability.
- REFRACTORINESS UNDER LOAD (TUL): Should be exceptionally high (often exceeding 1600°C) and the creep rate should be low.
- BULK DENSITY (BD): Typically higher than standard Fireclay, indicating lower permeability and better chemical resistance.
- APPARENT POROSITY (AP): Must be low to moderate to prevent penetration of fluxing agents and alkali vapors.
TECHNICAL GUIDANCE: Andalusite bricks are excellent for bridging the performance gap between Fireclay and higher AL2O3 Bauxite or Corundum bricks. The superior volume stability makes them ideal for constructing large, complex structures where lining integrity under compression is paramount.
