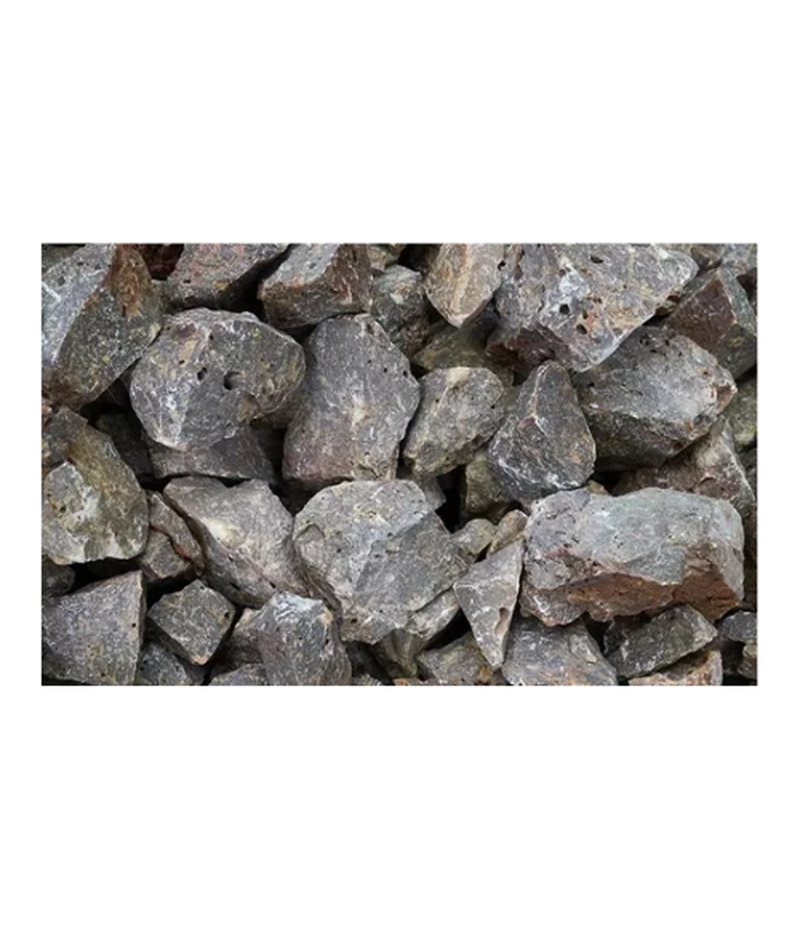

Fused Magnesia (FM)
Fused Magnesia (FM) is a synthetic refractory raw material produced by melting high-purity (>98.5%) MgO in an electric arc furnace at temperatures exceeding 2800°C (5072°F) and allowing it to solidify into large, crystalline masses. The solidified material is then crushed and sized.
The electric-arc melting process results in exceptionally large periclase crystals and near-zero porosity, making FM the most dense, chemically pure, and highest-performing basic refractory grain available. It is indispensable for refractories used in critical zones of steelmaking and glass production where resistance to slag attack, high temperature, and thermal shock is paramount.
Main Function and Characteristics
FM is valued for maximizing density and crystal size, which directly translates to superior performance in high-wear, high-temperature environments.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Magnesia (MgO) Content | >98.5% | Ensures ultimate refractoriness and chemical stability. |
| Crystal Size | LARGE | Minimizes grain boundaries, reducing pathways for chemical attack. |
| Porosity | VERY LOW | Provides maximum resistance to slag penetration and corrosion. |
CLASSIFICATION
- Structure Focus: Ultra-High-Purity Basic Oxide
- Primary Application Focus: Critical Hot Spots in EAF linings, Glass Tank Crowns, and high-performance Ladles.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Slag Penetration | MINIMAL | High density and low open porosity block liquid slag infiltration. |
| Refractoriness Under Load (RUL) | ULTIMATE | Large, interlocked crystals provide maximum high-temperature mechanical strength. |
| Volume Stability | EXCELLENT | Highest density ensures virtually no shrinkage during service. |
- The Fusing Advantage
While Dead-Burned Magnesia (DBM) is sintered at high temperatures, Fused Magnesia (FM) is melted, which allows for two critical performance enhancements:
- Crystal Growth: Melting allows the periclase crystals to grow to a massive size (>100 μm), far larger than those achieved by DBM. Large crystals minimize the total area of grain boundaries, which are the primary pathways for chemical corrosion by slag.
- Porosity Reduction: The casting process eliminates nearly all porosity (<3% open porosity), directly preventing slag penetration and subsequent corrosive wear.
These factors result in FM-based refractories outperforming DBM refractories in terms of corrosion resistance and hot strength.
- Applications
FM is reserved for the most aggressive environments where service life must be maximized regardless of cost:
- Steel Ladles: Used in the most critical areas, such as the slag line and stirring zones, often in composite Magnesia-Carbon (Mag-Carbon) bricks.
- Electric Arc Furnaces (EAF): Used in the EAF hot spots and tap holes to maximize campaign life.
- Glass Industry: Used in high-temperature zones of glass melting furnaces, particularly in Magnesia-Zirconia refractories, for their resistance to glass melt attack.
- Technical Guidance
FM is significantly more expensive than DBM. Therefore, it is typically used selectively, often mixed with DBM or carbon (as in Mag-Carbon bricks) to achieve the necessary balance of performance and cost. The final FM product must be crushed and sized accurately to meet the precise particle size distribution required by the brick press or castable formulation.
