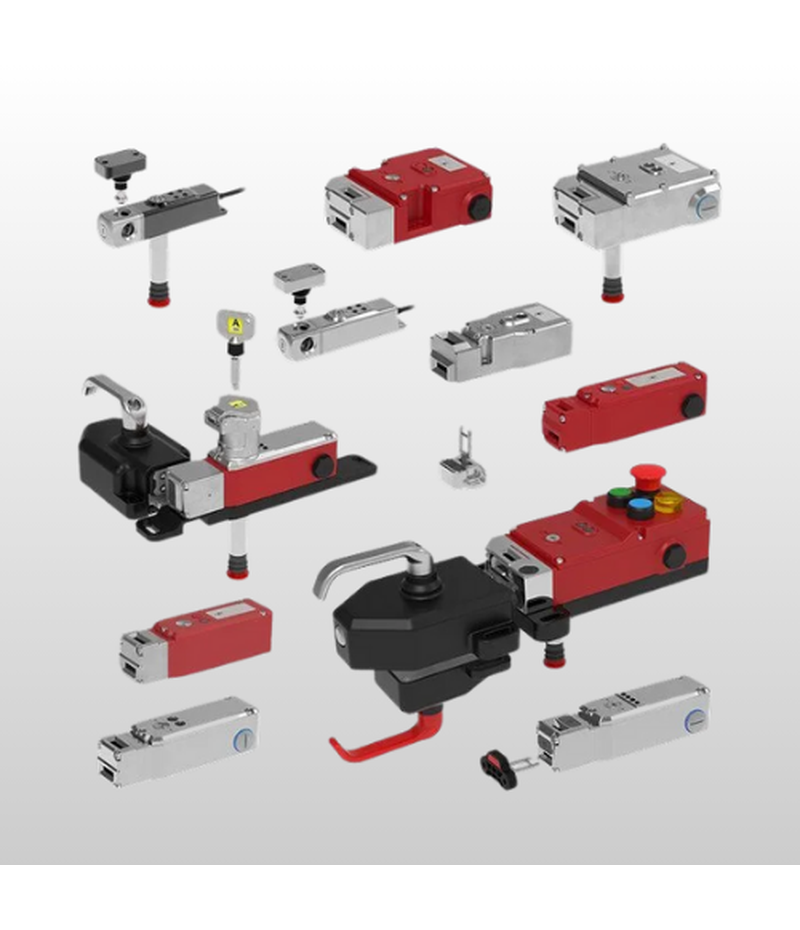

Emergency Shutdown System – Safety Interlocks
The Emergency Shutdown System (ESD), or Safety Instrumented System (SIS), is a control system responsible for safely bringing an industrial process (like a furnace, reactor, or melting system) to a secure state when predefined unsafe operating conditions are detected. It operates independently of the basic process control system (BPCS) to ensure maximum reliability.
Safety Interlocks are the specific, hardwired or programmed logic that dictates the necessary actions the ESD system must take when a safety parameter exceeds a critical limit. They are the core logic that triggers the shutdown sequence.
Main Function and Characteristics
The ESD provides the last layer of protection against hazardous events, activating immediate, predefined shutdown sequences to prevent catastrophe.
| CHARACTERISTIC | VALUE RANGE | PRIMARY FUNCTION |
|---|---|---|
| Integrity Level | HIGH (SIL) | Must meet high safety integrity level standards (IEC 61508/61511). |
| Logic | FAIL-SAFE | Designed to move to a safe state upon component failure (e.g., valve closes upon power loss). |
| Inputs | SENSORS | Pressure, temperature, flow, and level switches (Measurement & Control). |
CLASSIFICATION
- Engineering Focus: Safety Instrumented System (SIS)
- Primary Application Focus: Reliability and independent operation; Furnace Overheat Protection, Ladle Overflow Prevention, and Gas Train Shutdown.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Response Time | CRITICAL | Must execute shutdown sequence faster than the “time to incident.” |
| Availability | HIGH | System must be operational when required (low probability of failure on demand, PFD). |
| Proof Test Interval | REGULATED | Periodic testing is required to verify the safety function is active. |
- Components of the ESD
The ESD consists of three main elements, interconnected by the Interlock Logic:
- Sensors (Input Elements): These measure the critical process variables (e.g., a high-temperature alarm in a furnace using a Silicon Carbide Thermocouple Tube).
- Logic Solver (The Brain): A dedicated, highly reliable controller (often a safety PLC) that receives the sensor input and executes the interlock logic.
- Final Elements (Output Elements): These execute the protective action (e.g., closing a fuel gas valve, shutting down a pump, or diverting a molten flow).
- Examples of Safety Interlocks
In a high-temperature industrial setting, safety interlocks are often designed to prevent catastrophic failure of Melt Process Systems:
| SCENARIO | INTERLOCK LOGIC (Simplified) | FINAL ELEMENT ACTION |
|---|---|---|
| Furnace Overheat | IF Furnace Temp > T-Critical (High-High Alarm) THEN SHUTDOWN Fuel Gas Train | Solenoid valves close, stopping fuel flow to burners. |
| Water Leak (in Melt) | IF Water Flow > Max Limit AND Pressure < P-Low THEN DUMP Water Supply | Divert valve opens, preventing water from contacting molten metal (explosion hazard). |
| Exhaust Fan Failure | IF Fan Motor Status = OFF (Low-Low Flow) THEN SHUTDOWN Process | System stops feeding raw material or shuts down burners to prevent pressure build-up. |
- Guidance (Handling & Safety)
The ESD is governed by international standards that mandate independent design, strict documentation, and regular testing to ensure the system is truly separate from the basic controls and can execute its safety function reliably when required. The integrity of these interlocks is paramount to overall site safety.
