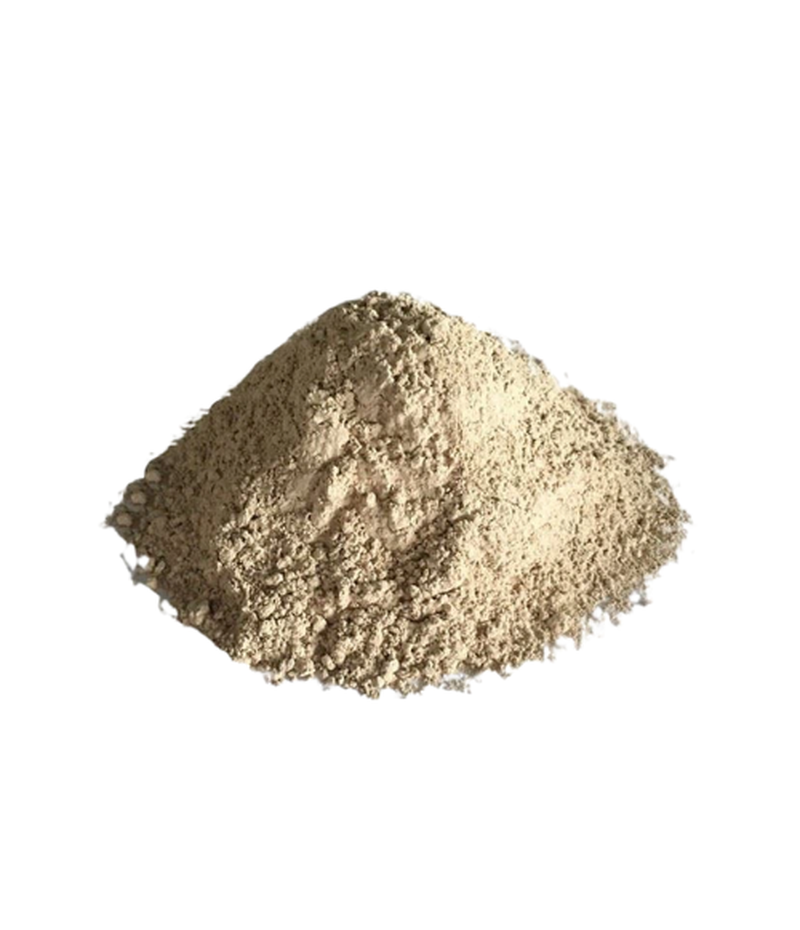

Electric Furnace Gunning Mix (Non-Basic)
Main Chemical Compositions & Categories
This mix is composed predominantly of acidic/neutral oxides, primarily High Alumina (Al2O3), Mullite, or Alumina-Silicate to ensure chemical compatibility with the existing lining (e.g., clay brick or high-alumina castable). The binding system is typically a high-purity chemical bond (e.g., phosphates, colloidal silica, or clay) designed for fast setting and strong adhesion to the hot lining.
| COMPONENT | CONTENT | CHEMICAL BASE | PRIMARY ADVANTAGE |
| Aggregate | Al2O3 (70% to 90%) | Bauxite, Tabular Alumina, Mullite | High refractoriness, chemical resistance to acidic slags |
| Binder | Chemical Bond | Phosphate / Colloidal Silica | Fast, reliable setting and high adherence to the existing lining |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Chemical Compatibility | EXCELLENT | Neutral or acidic composition ensures stability against acidic slags and prevents fluxing of the Al2O3/SiO2 lining. |
| Adhesion | VERY GOOD | Chemical bonds are formulated to achieve a tenacious, fast-setting patch on the hot substrate. |
| Application Method | Gunning (Dry or Wet) | Allows for quick, remote, large-volume repairs with good density and minimal dust. |
| Refractoriness Under Load (RUL) | HIGH | High Al2O3 content maintains structural stability at peak operating temperatures. |
Advantages and Key Characteristics
Non-Basic Gunning Mixes are essential for industrial operations where refractory downtime must be minimized, offering a fast, monolithic, and chemically compatible repair solution.2
- Rapid Turnaround Time: Applied via gunning, this mix allows for repairs to be performed quickly between operational cycles or during short outages, significantly improving equipment uptime and overall process efficiency.
- Chemical Match: Used exclusively for repairing non-basic (acidic or neutral) linings, the high-alumina or alumina-silicate composition prevents the chemical reaction and degradation that would occur if an incompatible basic mix were used.
- Structural Patching: The mix is formulated to pack densely, creating a low-porosity, high-strength layer that resists chemical infiltration and provides structural integrity to the repaired zone.
- Cost-Effectiveness: Gunning is a flexible and economical maintenance method for patching isolated zones of wear or erosion, extending the campaign life of the lining without requiring a full, expensive reline.
Typical Industries and Applications
This mix is used in various industries where neutral/acidic linings are prevalent:
- Glass Industry: Crowns, checker walls, and forehearth sections of glass melting furnaces.
- Cement & Chemical Industry: Flue gas ducts, incinerator linings, and structural repairs on calcining furnaces.
- Specialty Steel/Foundry: EAF roofs and non-basic ladles/tundishes, as well as coreless induction furnace linings where silica/alumina linings are used.
Furnace Areas and Service Zones
They are specified for high-wear areas in the hot zone:
- EAF ROOF: Areas prone to erosion and thermal shock above the electrodes.
- HOT SPOTS/CORNER WEAR: Localized wear areas in the furnace walls or roofs where flame impingement or turbulence is concentrated.
- GENERAL PATCHING: Used for repairing lining cracks, eroded joints, and minor structural damage in high-alumina or fireclay zones.
Key Data Sheet Properties to Consider
Selection criteria focus on refractoriness, chemical composition, and application properties:
- AL2O3 Content: CRITICAL VALUE. Must be high (> 70%, often 80%) for high refractoriness and chemical stability in most heavy-duty applications.
- Rebound Loss: The percentage of material bouncing off during application (lower is better, typically < 15%$ to 20%).
- Bonding Type: Verify the bond is compatible with the operating temperature and if it is designed for hot (chemical bond) or cold (hydraulic/air set) application.
- Slag Resistance: Must show good resistance to the specific acidic or neutral slag expected in the application.
Technical Guidance: Due to the risk of chemical attack, ensure the gunning mix used is chemically compatible with the base refractory lining and the operating slag. Non-basic mixes should never be used in a highly basic (Magnesia/Dolomite) furnace environment as this will lead to immediate fluxing and failure of the repair.
