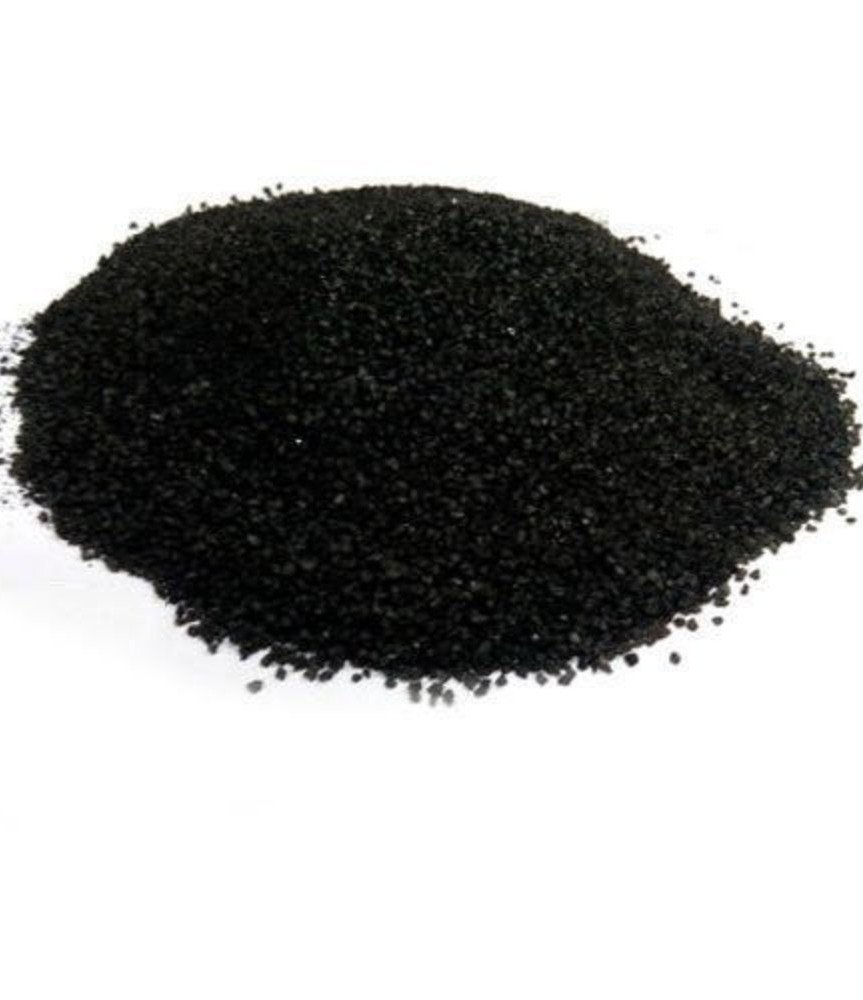

Cover Flux – Charcoal / Graphite Blend
A Cover Flux is a material applied to the surface of molten metal in a holding furnace, ladle, or crucible. A Charcoal / Graphite Blend is one of the most common and cost-effective types of non-reactive, carbonaceous cover fluxes. It is a mixture of granular charcoal and finely divided graphite used primarily to form an insulating, protective layer that prevents excessive heat loss and minimizes the oxidation of the molten metal surface.
Main Components and Function
The blend leverages the insulating properties of charcoal and the high carbon content of graphite.
| COMPONENT | COMPOSITION | PRIMARY FUNCTION |
| Charcoal | Amorphous Carbon (Porous) | Insulation and Volume. The porous nature traps air, providing high thermal resistance. |
| Graphite | Crystalline Carbon | Oxygen Barrier and Non-Wetting. Forms a dense, continuous film on the metal surface. |
| CLASSIFICATION | MAXIMUM SERVICE T | PRIMARY APPLICATION FOCUS |
| Carbonaceous Cover | 1500°C (Steel/Iron) | Thermal insulation and oxidation prevention for ferrous and non-ferrous metals. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Insulating Value | HIGH | The layer reduces radiant and convective heat loss from the molten bath surface. |
| Oxidation Barrier | EXCELLENT | Prevents atmospheric oxygen from reacting with the molten metal, minimizing dross and metal loss. |
| Non-Wetting | SUPERIOR | Carbon does not easily dissolve into or stick to molten metals, making the cover easy to skim. |
| Cost-Effectiveness | HIGH | One of the most economical cover fluxes available. |
Advantages and Key Characteristics
The charcoal/graphite blend is a workhorse in foundries for maintaining melt quality and saving energy.
- Energy Savings: By drastically reducing the surface heat radiation, the cover flux ensures the molten metal is held at the correct casting temperature with significantly less energy input from the furnace burners or heating elements.
- Yield Improvement: By preventing the formation of dross (metal oxides) on the surface, the blend minimizes metal loss, leading to a higher yield of usable product.
- Hydrogen Gas Control (Partial): While not its primary role, the insulating layer can help limit the absorption of hydrogen gas from moisture in the surrounding atmosphere by reducing the temperature gradient.
- Slag Assimilation (Minor): Depending on the metal being poured, the carbonaceous material may combine with some non-metallic impurities to help form a manageable, easy-to-remove slag layer.
Typical Industries and Applications
- Aluminum Foundries: Used extensively in holding furnaces and crucibles to reduce dross formation and maintain temperature uniformity.
- Iron and Steel Casting: Used in ladles and holding furnaces to protect the melt surface and retain temperature before pouring.
- Zinc and Copper Alloys: Applied where oxidation is a significant concern during transfer and holding.
Technical Guidance
- Application: The flux is applied as a layer of granules/powder immediately after the final skimming and before holding. The layer should be thick enough to fully cover the entire surface, usually 1 to 3 cm.
- Metal Type: This blend is highly suitable for ferrous alloys (iron/steel) and non-ferrous alloys (like aluminum) because carbon has very low solubility in these metals at typical holding temperatures, meaning it will not contaminate the alloy. (Note: Other, more reactive fluxes are required if the goal is to remove specific impurities rather than just cover the melt.)
- Skimming: The spent, crusted cover material must be skimmed off the molten metal surface immediately before pouring to prevent its introduction into the final cast product.
