Copper Shot / Cathode
Copper (Cu) is a soft, malleable, and highly ductile metal with outstanding electrical and thermal conductivity. It is supplied primarily in two high-purity forms for use as a metal additive or alloying base:
- Copper Cathodes: The result of the final stage of electrolytic refining. These are large, flat sheets (plates) of the highest purity copper available, typically 99.99% + Cu (often referred to as Grade A or LME Grade), making them the industry standard for alloying and non-ferrous melting.

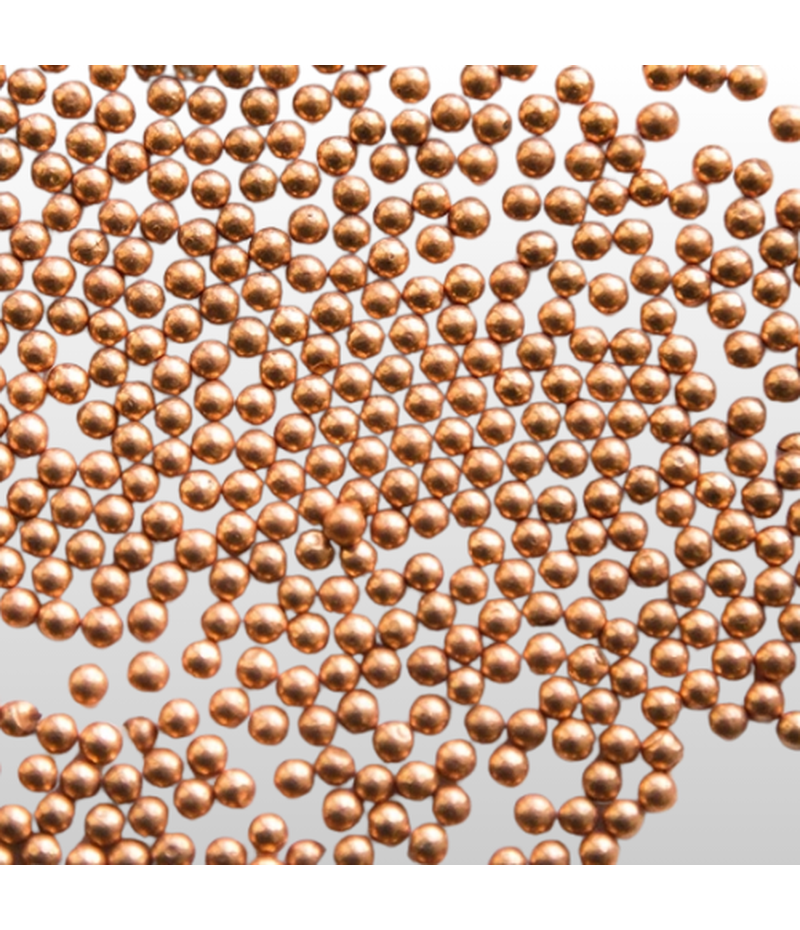

- Copper Shot: Small, irregularly shaped pellets produced by pouring molten copper into water (shotting). This form offers high purity and excellent flow characteristics, making it ideal for precise additions to molten baths.
Main Function and Form
Copper is the base metal for an entire class of alloys and is a key additive for conductivity and corrosion resistance.
| COMPONENT | CHEMICAL SYMBOL | PROPERTY HIGHLIGHT |
| Copper | Cu | Excellent electrical/thermal conductivity, high corrosion resistance. |
| Form | Cathode / Shot | Cathodes (highest purity base), Shot (precise additive). |
| CLASSIFICATION | MELTING POINT | PRIMARY APPLICATION FOCUS |
| Alloying Metal | ~1085°C (1985 F) | Electrical conductors, brass, bronze, and specialty steel alloying. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Conductivity | EXTREME | Used when high IACS (International Annealed Copper Standard) conductivity is required. |
| Alloy Base | VERSATILE | Forms the foundation for brass (with Zn), bronze (with Sn), and many specialized alloys. |
| Corrosion Resistance | HIGH | Forms a tenacious, protective oxide layer (patina) when exposed to the atmosphere. |
1. Copper Cathodes (Base Material)
- Primary Use: Cathodes serve as the primary feed material for producing high-purity copper products (e.g., wire rod and bus bars) and as the base charge in induction furnaces for manufacturing alloys like brass and bronze.
- Purity Guarantee: Their standardized size and guaranteed high purity make them the most globally traded form of copper, providing a reliable standard for alloying.
2. Copper Shot (Alloying Additive)
- Precise Dosing: The small, uniform size of copper shot makes it easy to weigh and add small, precise amounts of copper to a melt, especially in foundries or in the production of specialty iron and steel.
- Dissolution Rate: Shot has a high surface-area-to-volume ratio, allowing it to dissolve rapidly and uniformly into molten metal baths (e.g., cast iron, aluminum alloys) without causing significant cooling (chilling).
Applications in Ferrous Metallurgy
Although most copper is used in non-ferrous alloys, it is also a vital additive in steel and iron:
- Weathering Steel (e.g., Corten): Small additions ( 0.2% to 0.5%) of copper are made to low-alloy steels to dramatically improve their atmospheric corrosion resistance. The copper promotes the formation of a dense, protective surface rust layer.
-
Cast Iron: Copper is sometimes added to cast iron to promote the formation of pearlite, improving the material’s strength and hardness.
Technical Guidance and Storage
-
Purity Grades: Cathodes are graded based on their Cu content and conductivity. For high-conductivity wire, Oxygen Free (OF) or ETP (Electrolytic Tough Pitch) copper is specified, demanding the highest purity raw material.
- Handling: Both forms are relatively non-reactive and easy to handle. Shot is typically stored in bags or drums to prevent loss and moisture absorption, while cathodes are shipped in large, strapped bundles.
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
