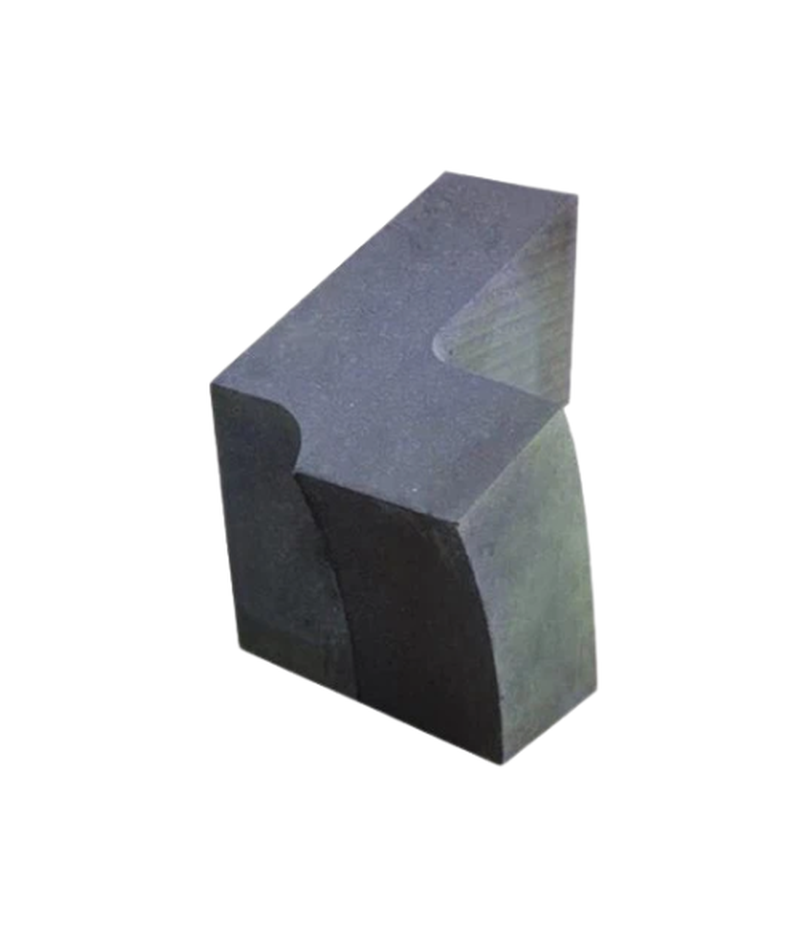

Chrome Zirconia Corundum Brick
Main Chemical Compositions & Categories
This brick is a complex, high-performance ceramic that combines three critical components: CORUNDUM (Al2O3), ZIRCONIA (ZrO2), and CHROMIUM OXIDE (Cr2O3). It is typically a fusion-cast or high-sintered product.
| COMPONENT | CONTENT | KEY FUNCTION | PRIMARY ADVANTAGE |
| Al2O3 (Corundum) | 40% to 70% | High Refractoriness / Hot Strength | Structural stability at extreme T |
| ZrO2 (Zirconia) | 10% to 30% | Volume Stability / Corrosion | Enhances viscosity of corrosive melt |
| Cr2O3 (Chrome) | 5% to 20% | Slag Resistance | Inhibits chemical dissolution by slag |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Corrosion Resistance | MAXIMUM | Combination of Cr2O3 and ZrO2 provides broad-spectrum resistance to both acidic and basic melts. |
| Glass/Slag Contamination | MINIMAL | Low porosity and the ZrO2 phase slow the dissolution rate, leading to very low melt contamination. |
| Thermal Shock Resistance | VERY GOOD | Improved by the micro-cracking mechanism of ZrO2, which absorbs thermal stress. |
| High Temperature Creep | EXTREMELY LOW | Dense Al2O3 and ZrO2 matrix offers maximum resistance to long-term deformation. |
Advantages and Key Characteristics
Chrome Zirconia Corundum (CZC) bricks are specified for the most aggressive, critical hot spots in large furnaces, offering an unparalleled blend of chemical resistance, thermal resilience, and structural integrity.6
- Broad-Spectrum Corrosion Control: ZrO2 is extremely stable and forms a highly viscous interface with molten glass/silicate melts. The addition of Cr2O3 further enhances resistance to Fe-rich, CaO-rich (basic) melts that attack pure Al2O3-ZrO2.
- Low Exudation: The dense composition and low SiO2 content minimize the formation of liquid phases that can exude (weep) from the brick, maintaining high structural purity.
- Volume Stability: The inclusion of ZrO2 provides enhanced resistance to thermal spalling and dimensional change, ensuring tight joints throughout the campaign.
Typical Industries and Applications
This brick is reserved for environments where campaign life and product purity are paramount and failure is extremely costly:
- Glass Industry: Bottom and sidewall hot spots, high-pull areas, boost electrodes, and vulnerable sections of the melter.
- Specialty Metals/Chemicals: Furnaces and vessels processing highly corrosive, complex slags or high-purity melts.
- High-Temperature Incinerators: Linings exposed to highly variable and aggressive ash/slag chemistries.
Furnace Areas and Service Zones
They are used in zones demanding the highest chemical and thermal stability:
- GLASS MELTER PAVEMENT/BOTTOM: Where the brick is subject to “upward drilling” and constant chemical dissolution.7
- BOOST ELECTRODE BLOCKS: Areas where electrical current generates extremely high, localized temperatures and chemical activity.
- FEEDER CHANNEL CONTACT ZONES: Where the melt is refined and contamination must be absolutely minimized.
Key Data Sheet Properties to Consider
Selection is based on the composite performance metrics:
- ZrO2 Content: CRITICAL VALUE. Confirms the level of corrosion and thermal shock resistance.
- Cr2O3 Content: Indicates the level of protection against basic or complex slags.
- Fusion-Cast vs. Sintered: Fusion-cast versions offer the lowest porosity (near 0%) and maximum corrosion resistance, while sintered versions offer better thermal shock resistance at a lower cost.
- Bulk Density (BD) and Apparent Porosity (AP): Must be maximized (BD) and minimized (AP) for resistance to infiltration.
Technical Guidance: CZC bricks are the highest-performing oxide refractory for corrosion resistance, often used in conjunction with other AZS/AZC grades. Due to the high cost and complexity, they are typically limited to the most vulnerable “hot spots” of a furnace. As with all chrome-containing refractories, specific disposal protocols are required to handle potential Cr(VI) waste.
