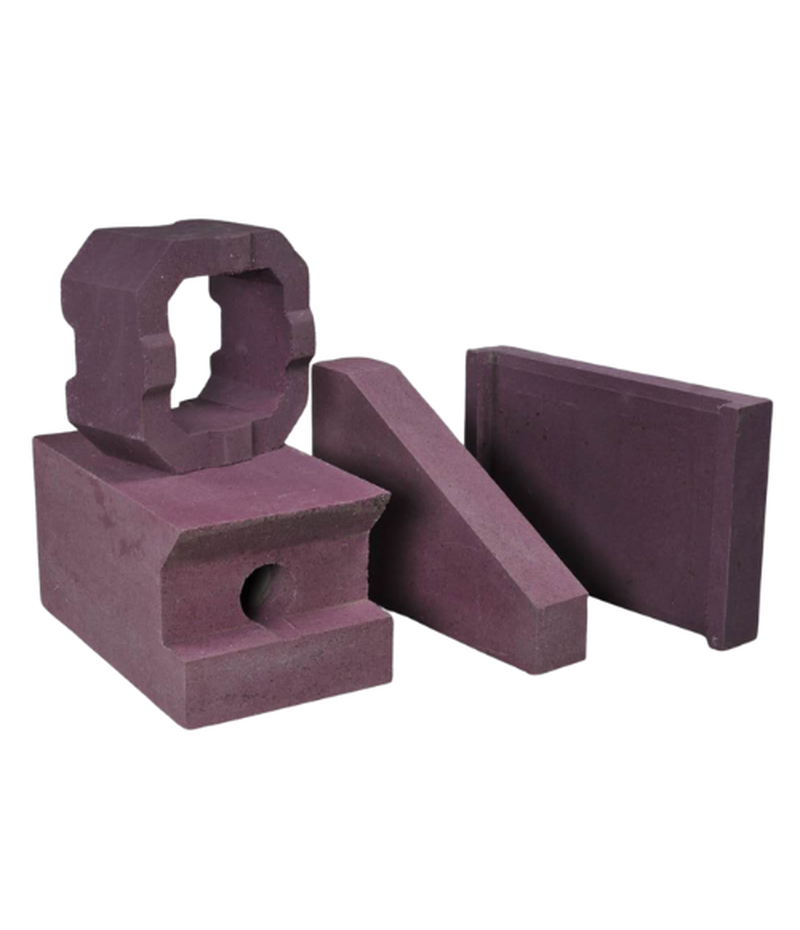

Chrome Corundum Precast Shapes
Chrome Corundum (Al2O3 – Cr2O3) Precast Shapes are high-performance refractory components made from a dense, sintered composite of Alumina (Al2O3) and Chromium Oxide (Cr2O3). These shapes are hydraulically pressed or cast into specific, ready-to-install geometries (e.g., impact blocks, nozzles, flow channels). They are highly valued for their exceptional slag and chemical corrosion resistance, very high hot strength, and superior abrasion resistance at extreme temperatures.
Main Chemical Compositions & Categories
Chrome Corundum refractories are characterized by the solid solution formed between Al2O3 (Corundum) and Cr2O3, which enhances the properties of both oxides. The level of Cr2O3 dictates the performance, particularly the corrosion resistance.
| CATEGORY | Cr2O3 Content | TYPICAL DENSITY | PRIMARY ADVANTAGE |
| Standard Chrome Corundum | 10% to 25% | 3.0 g/cm3 to 3.8 g/cm3 | Excellent hot strength and volume stability. |
| High Chrome | 30% to 90%+ | 3.9 g/cm3 to 4.5 g/cm3 | Maximum chemical inertness and slag resistance. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Slag Resistance | EXTREME | Cr2O3$ is highly inert and resists dissolution by most acidic, neutral, and some basic slags. |
| Hot Strength/Creep | MAXIMUM | The solid solution crystal structure provides outstanding resistance to deformation (creep) at high T. |
| Abrasion Resistance | SUPERIOR | High density and the hardness of Corundum/Chrome phases resist mechanical erosion. |
| Metal Non-Wetting | GOOD | Resists wetting and penetration by various molten metals. |
Advantages and Key Characteristics
Chrome Corundum Precast Shapes provide a specialized, high-integrity lining for the most aggressively corrosive and high-wear zones in high-temperature furnaces, offering significantly longer life than traditional Alumina or Magnesia materials.
- Superior Slag Line Protection: The Cr2O3 forms a very stable, high-viscosity interface layer with molten slags. This interface minimizes the reaction and erosion rates, making these shapes ideal for slag contact areas in reactors and furnaces.
- Maximum Wear Life: Used in zones subject to severe erosion from fast-flowing process materials (liquid or gas/solids), their high hardness and density ensure minimal material loss over the campaign life.
- Pre-Fabricated Consistency: Being precast and fired, these shapes offer superior dimensional accuracy and guaranteed material properties compared to site-installed castables. This is crucial for flow control elements or parts requiring precise fit.
- High Thermal and Structural Stability: They maintain high structural integrity and dimensional stability up to 1850°C, making them suitable for load-bearing and critical flow applications.
Typical Industries and Applications
This specialized refractory is essential in processes with highly corrosive environments:
- Petrochemical/Chemical: Linings for coal gasifiers, black liquor gasifiers (highly corrosive process environment), and FCC (Fluid Catalytic Cracking) cyclones/nozzles.
- Metallurgy: Tap hole blocks, impact pads, and slag line zones in EAF and LF steelmaking where corrosive slags are present; specialized flow control components.
- Waste Incineration: Linings in high-temperature incinerators exposed to aggressive, complex fly ash and corrosive vapors.
Furnace Areas and Service Zones
They are specified for structural, chemical-wear, and flow control areas:
- SLAG/METAL INTERFACE: The most corrosive zone in many metallurgical vessels.
- IMPACT BLOCKS/EROSION ZONES: Used to withstand high-velocity material flow.
- CRITICAL FLOW ELEMENTS: Nozzles, weir blocks, and pouring channels requiring high dimensional precision and wear life.
Key Data Sheet Properties to Consider
Selection criteria focus intensely on chemical and mechanical stability:
- Cr2O3 Content: CRITICAL VALUE. Specify the minimum content (e.g., 15% or 25%) based on the severity of the corrosion. Higher content usually means higher cost and performance.
- True Porosity/Bulk Density: Look for high Bulk Density (> 3.6 g/cm3) and low Apparent Porosity (< 15%) to minimize slag penetration.
- Slag Corrosion Index: Look for supplier-specific test data showing the corrosion rate against the target slag (e.g., basic, acidic, high FeO).
- Cold Crushing Strength (CCS): Must be exceptionally high, confirming the dense, sintered structure.
Technical Guidance: Due to the material’s cost, these shapes are typically only installed in the highest wear or most chemically corrosive zones. When used in precast form, the joints between the shapes must be sealed with a chemically compatible Al2O3 mortar to prevent localized attack. Note that Chromium-containing refractories require special handling and disposal procedures due to environmental regulations.
