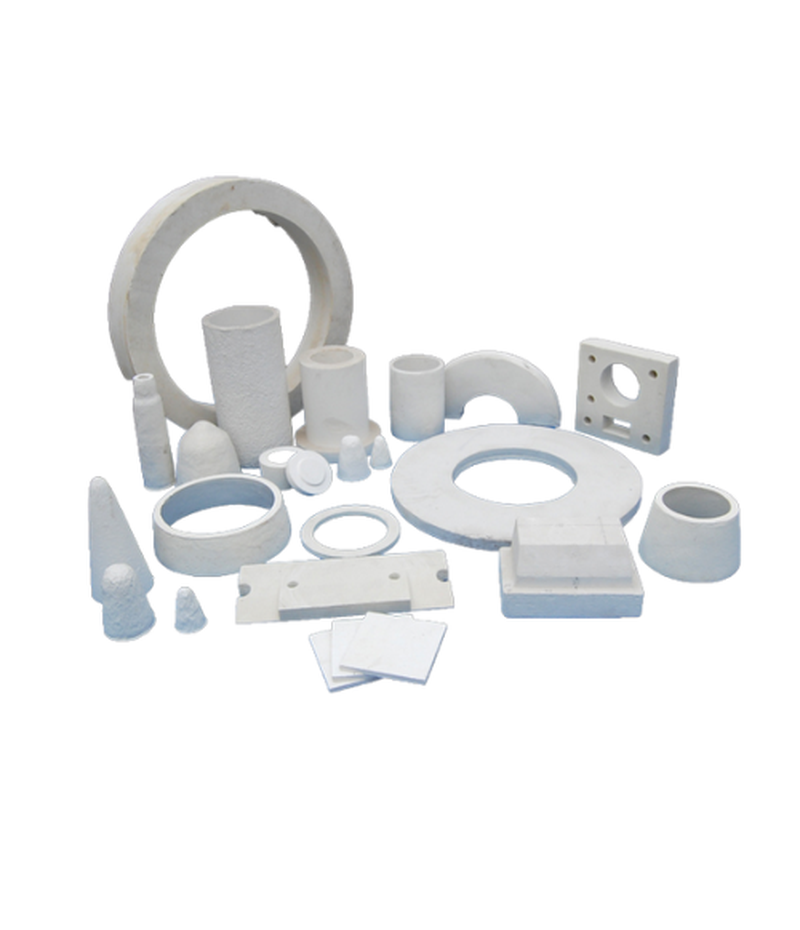

Ceramic Fiber Shaped Parts
Ceramic Fiber Shaped Parts are rigid, high-density, custom components manufactured by a vacuum-forming process using a slurry of Aluminum Silicate Fibers (RCF) and a specialized inorganic binder. These parts are then baked to create a precise, self-supporting shape. They are essential for applications requiring the excellent thermal insulation and low heat storage of ceramic fiber, but with superior structural rigidity, high compressive strength, and dimensional accuracy not achievable with flexible blankets.
Main Chemical Compositions & Categories
The material is chemically identical to Ceramic Fiber Blanket, classified by its Al2O3 content, but structurally defined by its density and binder content.
| CATEGORY | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Standard Grade | 45% to 50% | ~1260°C to 2300°C | Rigid insulation, most cost-effective. |
| High Alumina Grade | 50% to 60% | ~1430°C to 1540°C | Higher MST and improved structural integrity at heat. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Compressive Strength | HIGH | Maintains shape under mechanical load; ideal for self-supporting structures. |
| Dimensional Accuracy | EXCELLENT | Vacuum forming allows for tight tolerances, crucial for precise fittings like plugs and ports. |
| Erosion Resistance | SUPERIOR | High density and smooth, hard surface resist high-velocity gas flow and abrasion. |
| Thermal Mass | LOW | Retains the energy-saving benefit of fast thermal cycling for intermittent operations. |
Advantages and Key Characteristics
Shaped parts bridge the gap between flexible fiber insulation and rigid, dense refractories, providing the best of both in specific structural applications.
- Customized Rigidity: They provide a self-supporting structure that can be handled and installed without loss of shape, making them ideal for complex, prefabricated components.
- Reduced Gas Erosion: The high density and smooth surface created by the vacuum-forming process offer superior resistance to erosion from fast-moving combustion gases or process air, protecting the hot face in turbulent zones.
- Plug-and-Play Installation: Being pre-formed and accurate, they allow for rapid installation as plugs, gaskets, or burner components, minimizing downtime and guaranteeing a tight, consistent fit.
- Hot Spot Isolation: They are often used to surround or protect sensitive components (like heating elements or burners), ensuring maximum insulation right up to the working part.
Typical Industries and Applications
This product is specialized for critical, high-precision insulation areas:
- Burner Blocks: Pre-formed rings or blocks used to insulate and protect gas and oil burners, providing a rigid, erosion-resistant seal against the furnace wall.
- Sight and Access Ports: Custom shapes used as rigid plugs for thermocouple entry points, sight glasses, and inspection ports.
- Furnace Doors and Vents: Used as rigid inserts, gaskets, or insulation pieces for furnace door seals and flue lining.
- Electric Furnaces: Used as coil supports, electrical insulators, or structural elements in resistance-heated furnaces.
Key Data Sheet Properties to Consider
Selection is based on the required mechanical strength and thermal properties:
- Density: Measured in kg/m}=3 or lb/ft3. Higher density generally means higher strength and erosion resistance.
- Cold Crushing Strength (CCS): This measures the ultimate compressive load the part can bear, which is critical for load-bearing applications.
- Dimensional Tolerance: Ensure the manufacturing tolerance meets the requirements for the specific fitting (e.g., clearance around a burner tube).
Technical Guidance: For use on the immediate hot face, shaped parts are frequently treated with a surface rigidizing liquid (often alumina-based) to further harden the surface and lock down loose fibers, reducing dusting and increasing erosion resistance.
