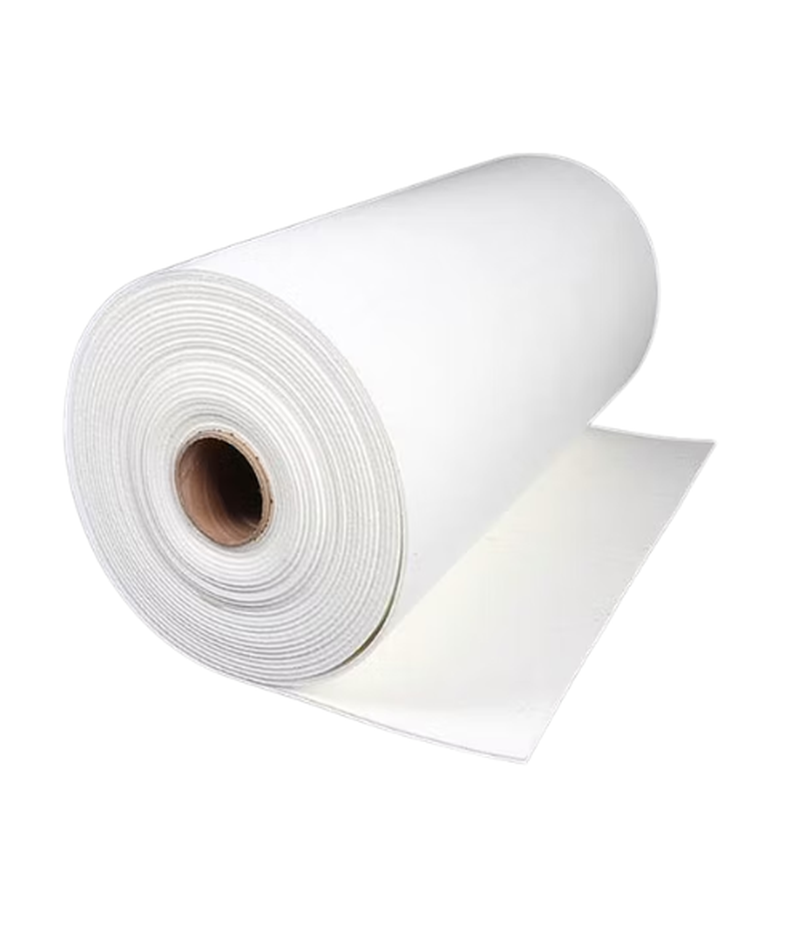

Ceramic Fiber Paper
Ceramic Fiber Paper is a thin, flexible, and lightweight sheet insulation material made from a slurry of high-purity Aluminum Silicate Fibers (RCT), an inorganic binder, and a small amount of organic filler. It is manufactured using a papermaking process. The material is valued for its exceptional flexibility, uniformity, ease of die-cutting, and excellent thermal sealing capabilities in confined and precise spaces.
Main Features and Use
The composition and MST are consistent with other RCF products, but its thin format and low binder content define its specific applications.
| CATEGORY | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Standard Grade | 45% to 50% | ~1260°C to 2300°C | Flexible, thin gasketing and wrap. |
| High Alumina Grade | 50% to 60% | ~1430°C to 1540°C | Higher MST and less shrinkage. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thickness | VERY THIN | Typically 0.5 mm to 5 mm; allows use in tight clearances. |
| Flexibility | EXCELLENT | Can be easily bent, wrapped, and die-cut for custom shapes. |
| Heat Storage | NEGLIGIBLE | Near-zero thermal mass; provides immediate thermal break. |
| Chemical Inertness | HIGH | Stable in most chemical and corrosive environments. |
Advantages and Key Characteristics
Ceramic Fiber Paper is the solution for creating uniform, thin thermal seals and insulating barriers where bulkier materials like blankets or boards are too thick or inflexible.
- Precision Sealing and Gasketing: The primary use is creating high-temperature gaskets for flanges, removable lids, and seals in tight spaces. It conforms well to irregular surfaces, ensuring a gas-tight seal when compressed.
- Thermal Barrier/Wrap: Used as a lightweight, flexible insulating wrap for pipes, tubes, or heating elements, providing protection without adding significant weight or bulk.
- Electrically Insulating: It maintains high electrical resistivity, making it useful as an insulating layer between heating elements and the furnace casing or insulation.
- Punching and Die-Cutting: The paper format allows for easy, accurate fabrication of complex, custom shapes (e.g., washers, complex flange gaskets) using standard industrial cutting equipment.
Typical Industries and Applications
This product is critical in precise, compact thermal assemblies:
- Appliance and OEM: Used as insulation lining for small batch furnaces, domestic heating units, toasters, and ovens.
- Metallurgy/Foundry: Gaskets for furnace doors, runners, riser tube liners, and hot-top applications.
- Automotive: Used for heat shields, exhaust gaskets, and thermal insulation in high-temperature engine areas.
- Electronics: Insulating liners for induction furnace coils and separating layers for sensitive materials being sintered.
Key Data Sheet Properties to Consider
Selection is based on the required sealing pressure and temperature:
- Maximum Service Temperature (MST): Must be checked, particularly against possible shrinkage.
- Density and Weight: Low values are key to its performance; typically measured in kg/m2 (mass per unit area).
- Tensile Strength: Important for handling and for ensuring the gasket does not tear during installation.
- Binder Content: Lower organic binder content means less smoke/outgassing on initial heat-up, which is crucial for clean atmosphere furnaces.
Technical Guidance: Due to the low organic binder content, the paper will produce a small amount of smoke on the first heat-up as the binder burns out. This should be vented. For applications requiring mechanical reinforcement (e.g., severe vibration), the paper can be backed with a thin layer of foil or encapsulated.
