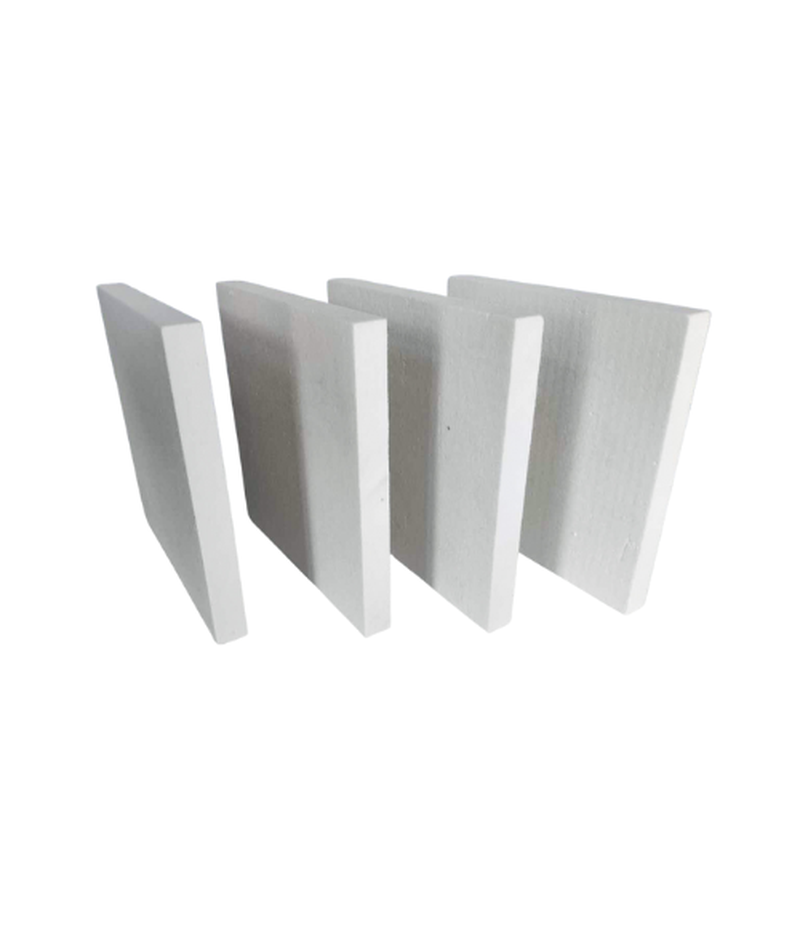

Ceramic Fiber Board
A Ceramic Fiber Board is a rigid, high-density, vacuum-formed insulation product made from a blend of Aluminum Silicate Fibers (RCF) and an inorganic binder. Unlike flexible blankets, the board maintains a self-supporting, structurally stable shape with defined dimensional tolerance. It is used for high-temperature lining applications that require the low thermal conductivity and low heat storage of ceramic fiber, combined with high compressive strength, rigidity, and resistance to high-velocity gas erosion.
Main Chemical Compositions & Categories
The chemical composition mirrors Ceramic Fiber Blanket, but the board’s key features are density and rigidity, achieved through vacuum forming and baking.
| CATEGORY | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Standard Grade | 45% to 50% | ~1260°C to 2300°C | Rigid and load-bearing insulation. |
| High Alumina Grade | 50% to 60% | ~1430°C to 1540°C | Higher MST and improved structural integrity at heat. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Compressive Strength | HIGH | Maintains shape and resists deformation under mechanical load or compressive stress from lining anchors. |
| Erosion Resistance | SUPERIOR | High density and smooth surface resist the abrasive effects of high-velocity gases (e.g., in ducts or flues). |
| Thermal Mass | LOW | Retains the energy-saving benefits of RCF for fast cycling furnaces. |
| Dimensional Stability | EXCELLENT | Maintains tight geometric tolerances, crucial for flat surfaces, doors, and module facings. |
Advantages and Key Characteristics
Ceramic Fiber Board is chosen when the insulating benefits of RCF are required but the mechanical demands (erosion, light load, rigidity) exceed the capability of a flexible blanket.
- Rigidity and Structural Integrity: The primary benefit. The board can be used to construct furnace parts (like doors, covers, or baffle walls) that are self-supporting and require handling without losing their shape.
- Resistance to Hot Gas Velocity: The smooth, dense surface resists the peeling and tearing associated with flexible blankets in zones of high gas turbulence (e.g., burner ports, exhaust flues, duct linings).
- Precise Installation: Boards can be machined, cut, and installed using standard anchoring systems, providing a uniform and joint-tight hot-face surface superior to hand-cut blanket installation.
- Backup Insulation: Used behind dense brick or castables to provide stable, load-bearing thermal backing without adding excessive weight or heat storage.
Typical Industries and Applications
This product is critical in demanding insulation and structural applications:
- Furnace Linings: Hot face for small, high-velocity furnaces, electric resistance furnaces, and induction furnace coil protection.
- Furnace Doors and Covers: Used to create rigid, lightweight insulation for furnace doors, lids, and kiln car tops.
- Baffles and Partitions: Used to create flow controls, radiant heat shields, or separation walls within the furnace chamber.
- Burner Blocks: Boards are often cut and stacked around burner ports for a rigid, erosion-resistant seal.
- Backup Insulation: Used behind refractory castables to insulate the steel casing.
Key Data Sheet Properties to Consider
Selection is highly dependent on density and thermal performance:
- Maximum Service Temperature (MST): CRITICAL VALUE. Must be verified based on the Al2O3 content.
- Density: Ranges from 230 kg/m3 to 480 kg/m3 (15 to 30 lb/ft3). Higher density provides better erosion resistance and compressive strength but slightly higher thermal conductivity.
- Cold Crushing Strength (CCS): Measures the material’s ability to withstand compressive loads without crushing, essential for load-bearing areas.
Technical Guidance: Boards can be treated with a surface rigidizer or hardener (often alumina-based) to further increase their surface hardness and resistance to erosion/dusting, which is recommended for the hot face of gas-fired furnaces. Boards must be properly vented during initial heat-up to allow the burnout of any residual organic binder.
