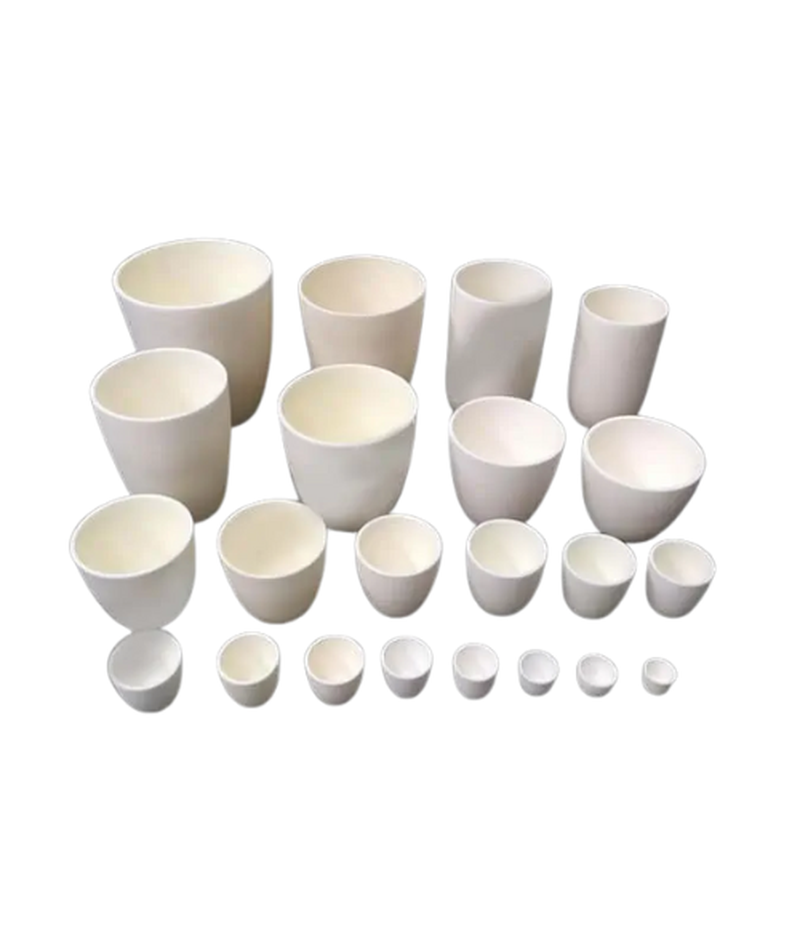

Ceramic Crucibles (General Purpose)
Ceramic Crucibles are containers designed to hold materials during heating, particularly in melting, calcining, or firing processes at extremely high temperatures. The “General Purpose” category typically refers to crucibles made from readily available, cost-effective oxide ceramics like Alumina-Silicate (e.g., Fireclay) or moderate-purity Alumina which offer a balance of refractoriness, chemical resistance, and economy.
Main Chemical Compositions & Categories
General Purpose Crucibles are primarily made from Alumina-Silicate materials, with the Al2O3 content determining the maximum service temperature (MST) and chemical inertness. They are often bonded with clay and sintered.
| MATERIAL BASE | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Fireclay | ~ 40% to 50% | ~1400°C to 1600°C | Most economical, good thermal shock resistance. |
| High Alumina | ~ 70% to 80% | ~1650°C to 1700°C | Higher refractoriness, better chemical resistance, and reduced porosity. |
| Clay-Graphite | C + SiO2 (Binder) | ~1500°C to 1700°C | Excellent thermal conductivity, widely used for non-ferrous melting (though purity is lower). |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Refractoriness | HIGH | Maintains structural integrity at high process temperatures without softening or collapsing. |
| Thermal Shock Resistance | GOOD | Ability to withstand rapid heating and cooling cycles without cracking (especially Fireclay/Clay-Graphite). |
| Chemical Inertness | MODERATE | Offers resistance to attack by most neutral and slightly acidic molten materials. |
| Volume/Shape | STABLE | Sintering ensures low shrinkage and high dimensional consistency. |
Advantages and Key Characteristics
General purpose crucibles provide an economical, reusable, and reliable container for a wide range of laboratory, small-scale industrial, and metallurgical processes where extreme purity or ultra-high temperatures (> 1800°C) are not required.
- Versatility: Available in a huge array of standard sizes and shapes (e.g., tall form, low form, conical, cylindrical) to suit different furnace geometries (muffle, induction, resistance).
- Thermal Stability: The sintered ceramic matrix ensures minimal deformation or degradation at temperatures up to its MST, essential for maintaining the integrity of the melt or sample.
- Reduced Contamination (Oxide): While not as pure as 99.8% Alumina or Zirconia crucibles, the oxide composition minimizes contamination of the melt compared to metallic containers, which can oxidize or react.
- Durability: When handled correctly and used within their temperature limits, these crucibles can be reused for multiple cycles, providing good cost-per-use value.
Typical Industries and Applications
This type of crucible is ubiquitous in labs and foundries:
- Metallurgy and Foundries: Melting and holding non-ferrous metals like aluminum, bronze, brass, and precious metals. (Clay-Graphite is preferred here for conductivity).
- Laboratories and Assaying: Sample preparation, ashing, loss-on-ignition (LOI) tests, and high-temperature material synthesis.
Jewelry Making: Small-scale melting and casting of precious metals.
Selection and Maintenance
Selection is typically based on the MST required and the melt’s chemical nature:
- Fireclay/Alumina-Silicate: Best for acidic to neutral melts and samples with low reactivity. Preferred where cost is a major factor.
- High Alumina: Used for slightly higher temperatures and where reduced SiO2 contamination is required.
- Clay-Graphite: Used almost exclusively for melting high-volume non-ferrous metals due to their outstanding thermal shock resistance and high conductivity. However, they require a reducing or inert atmosphere to prevent graphite oxidation.
Technical Guidance: Never subject a cold crucible to a hot furnace or an extremely hot crucible to a cold surface, as this will induce thermal shock and cracking. For optimal life, Al2O3-based crucibles should be heated and cooled gradually according to a specific schedule.7 Ensure the crucible material is chemically inert to the material being melted; for example, basic slags rapidly attack SiO2-rich fireclay crucibles.
